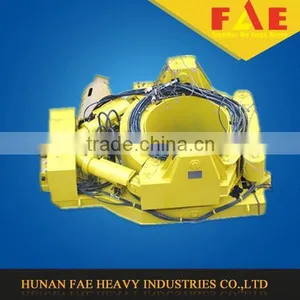

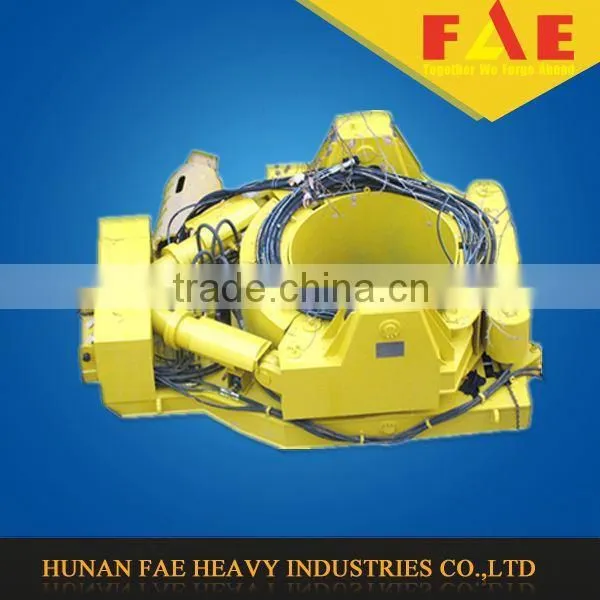

Foundation equipment parts, Casing Oscillator for rotary drilling machinery
What could FAE offer?
| Specifications of FAE casing oscillator type:FRCD15 | |
| casing diameter | 600/800/1000/1200/1500mm |
| operating pressure | 340bar |
| max torque | 2100kN.m |
| stroke | 500mm |
| max lifting fore | 2120kN |
| counterweight(self-made) | 20t |
| clamping | 2100kN |
| rotation angle | 20° |
| travel of casing | 261mm |
| height of clamping collar | 630mm |
| weight | 21ton |
| overall length | 4280mm |
| overal weight | 2630mm |
| overall height | 1740mm |
|
Remarks: 1,Lifting cylinder and rotation cylinder can operate simulatneously,so that the effciency of construction is greatly enhanced. 2,Casing verticality auto-adjusting and rotation cylinder will collect the hydraulic oil from lifting clyinder when casing rotating. | |
What are FAE casing oscillator?
What are FAE casing oscillator job site?
What are FAE delivery?
Why Choose us?
Company View
Our Certifications
What are FAE business cooperation?
FAQ
Awaiting for your inquiry,we will response you at the first time!
Please contact us from this page or find our contacts from the Index page of our site.
FAE website for your further information:
WWW.FAECHINA.COM
