Specifications
1.Ultrasonic level meter for distance measurement2.Ac or Dc power supply optional
3.Apply to all kinds of medium
4CE.UL.RoHS

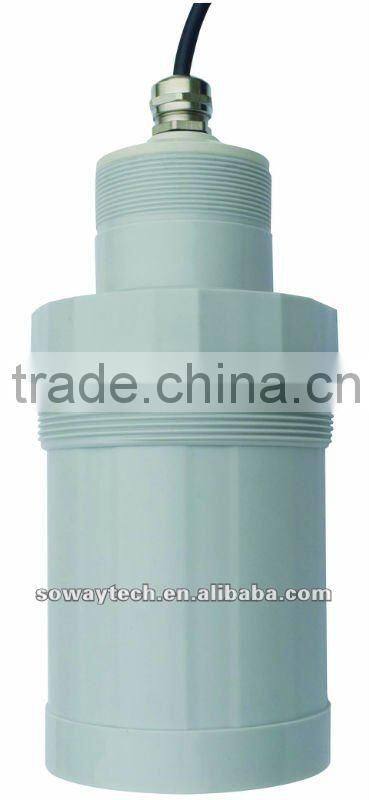

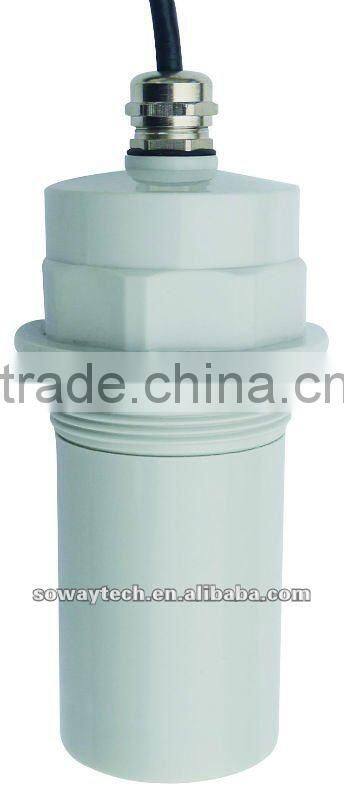

Universal ultrasonic level meter for distance measurement
Ultrasonic levelmeter working principle: the probe launch a bunch of ultrasonic pulse to the object, ultrasound is reflected by the object surface, then received through the probe, at the same time the electronic unit computing time and conversion it, thus we can know the corresponding measured distance. This product is non-contact measurement, high precision, strong anti-interference, operate in the most demanding environmental conditions : dust, smoke, electromagnetic interference, strong corrosion etc. Widely used in chemical, petroleum, metallurgy, coal, building materials, paper making, environmental protection industry and so on.
Ultrasonic can spread effective in lots of occasion, Such as: storage tank, materials trough, pool, well,
Drains, measuring boxes, granaries, silo, etc.
Specifications
1.Power supply: DC24V(±10%),30mA
2.Output signal:4~20mA 2-wire
3.Output Resolution: stroke 0.03%
4.Parameter set: 3 touch buttons
5. Sensor material:ABS /PVC
6. Output signal: 4~20mA 2-wire,Provide MODBUS
7. Relay output:FloorHighest alarm and control (material level/liquid level)
8. Temperature range: -40°C~ +75°C
9. Protection grade: IP67
10.Shell material: ABS
11.Pressure range: ±0.1MP
12.Electronic unit shell material:Die casting aluminum,Plastic-sprayed surface
13.Stroke : Liquid level:4m,6m,8m,12m,15m,20m,30m
Material level:3m,5m,7m,10m,15m
