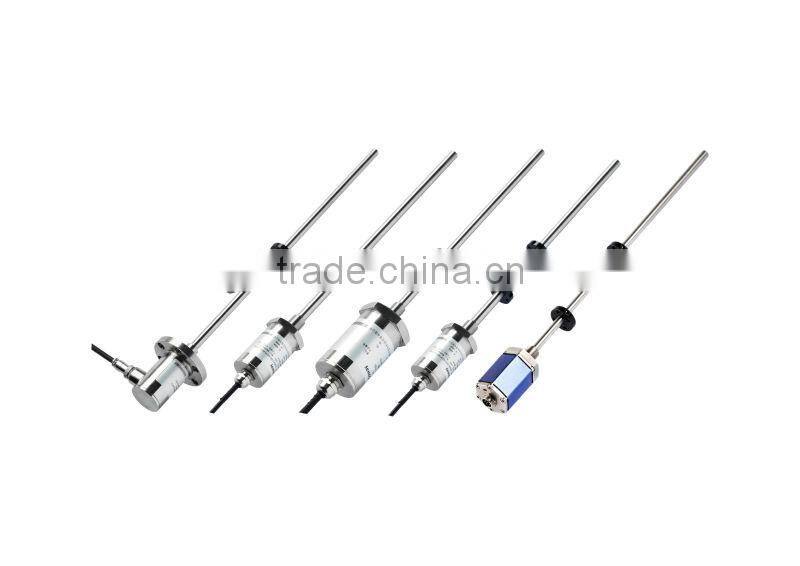

Magnetostrictive Linear Position sensor/Position transducers:
Soway "G" series linear position sensors provide accurate, non-contact position sensing in a wide array of output configurations and application housing styles. These series of magnetostrictive linear position sensors are based on the magnetostrictive measurement principle. That combines high accuracy, large linear range, absolute position and features non-contact, high reliability and long duration. The extremely robust sensor is ideal for continuous monitoring and measurement systems, or for machine control involving hydraulic, pneumatic, electromechanical under harshest industrial conditions, such as oil stain, dust or high voltage.
Technical Parameter
Measured variables | Displacement, speed(absolute velocity), measured 1~2 positions. | |
Measured range | 50 mm~8000mm | |
Zero-point adjustable range
| 100%F.S | |
Outputs | Current | 4~20mA, Max. load 600 ohms. |
Voltage | 0~10VDC, 0~5VDC,Min. load larger than 5k ohms. | |
Accuracy | Resolution | Adopting 16Bit D/A Transformation, 0.0015%F.S(minimum 1μm) |
Nonlinearity | <±0.015%F.S(minimum±50μm) | |
Repeatability | <±0.002%F.S(minimum±3μm) | |
Hysteresis | <0.002%F.S. | |
Temperature coefficient: | <0.007%F.S./°C | |
Update time | Measured range <0.5ms/m | |
|
|
|
Operating voltage | +24VDC±10% | |
Operating current | <50m A | |
Operating temperature | -40~+85°C | |
Storage temperature | -40~+100°C | |
Physical Specifications
Probe: 304SS wetted parts or 316SS
Cover: Anodized aluminum
Mounting: threaded flange
Flange standard: GB9115.1-2000
Cable: integral cable, mating connector, integral connector
Environmental Protection: IP65
Explosion Proof: ExdIIBT5 (Flameproof), ExiaIIBT5 (Intrinsic safety)

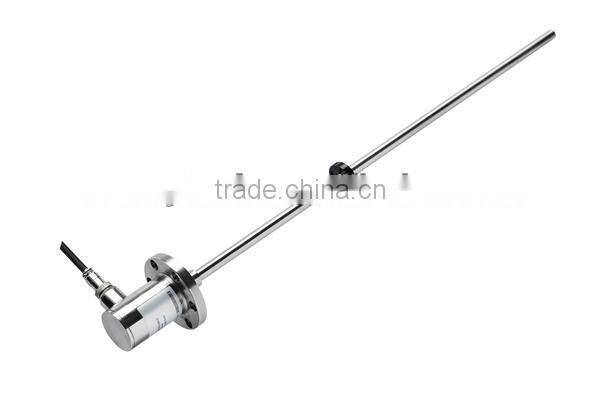

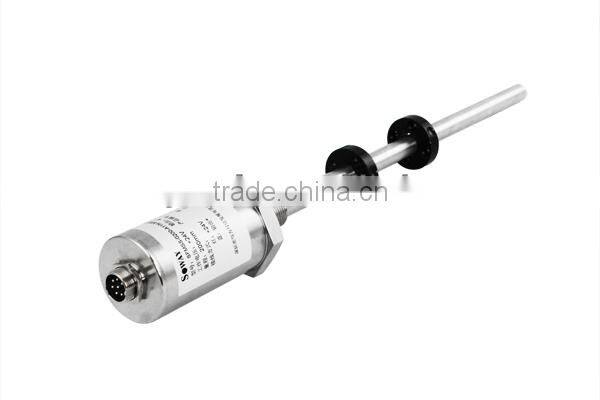

More product picture:

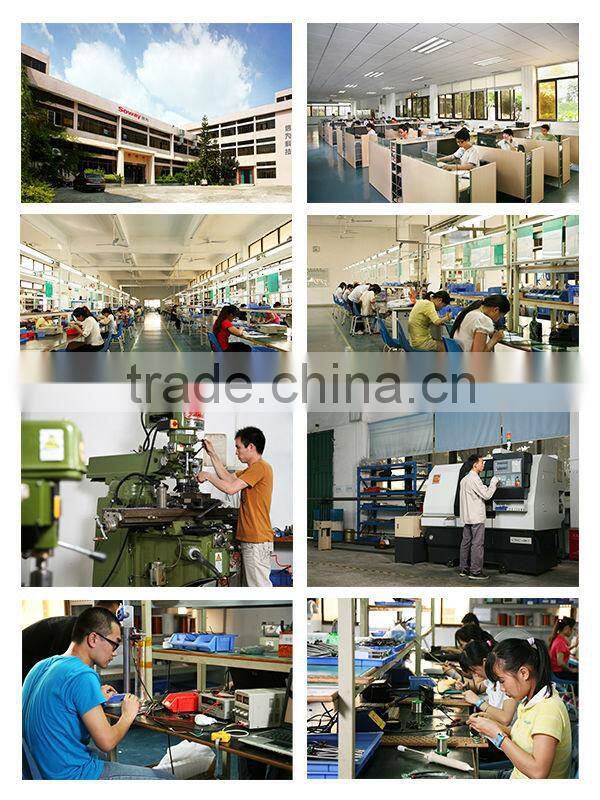

Factory show:
