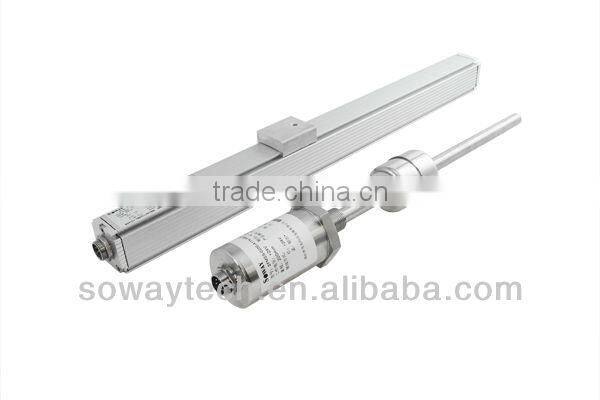

Soway "G" series linear position sensors provide accurate, non-contact position sensing in a wide array of output configurations and application housing styles.
Technical Parameter
Outputs:Digital—SSI, Modbus, Analog—voltage, current
Measured position: SSI—1 position Modbus—1~3 position Analog—1~2 position
Range: 50~8000mm
Power supply: 24V
Communication: EIA-RS485/RS422
Update time: SSI, Modbus: length 300 750 1000 2000 5000
Frequency: 3.7 3.0 2.3 1.2 0.5KHz
Operating temperature: -40°to +85°C Storage temperature: 0°to +70°C
Probe endure pressure: less than 34MPa
Insulation: 500VDC
Performance Parameter
Nonlinearity:±0.05%F.S.(max)
Repeatability:±0.002%F.S.(max)
Hysteresis: SSI: 4μm(max, 24- or 25-bit), 2μm(max, 26-bit)
Modbus: 4μm(max) Analog: 0.002%F.(max)
Resolution: SSI: 4μm(max, 24- or 25-bit), 2μm(max, 26-bit)
Modbus: 4μm(max) Analog: 16bit D/A output
Temperature coefficient: ±0.007%F.S./°C
System resolution: SSI:1μm,2μm,5μm,10μm,20μm,50μm,100μmselectable
Modbus: 4μm(max) Analog: depends on indicatedcontroller
Zero range: 100%F.S.
Physical Specifications
Probe: 304SS wetted parts or 316SS
Cover: Anodized aluminum
Mounting: threaded flange
Flange standard: GB9115.1-2000
Cable: integral cable, mating connector, integral connector
Environmental Protection: IP65
Explosion Proof: ExdIIBT5 (Flameproof), ExiaIIBT5 (Intrinsic safety)

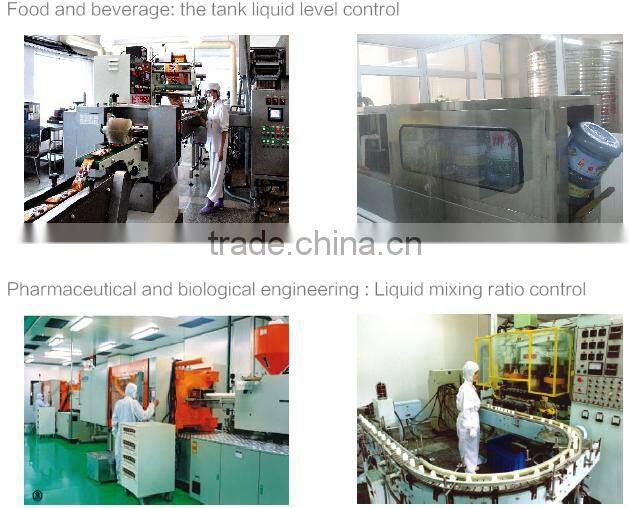

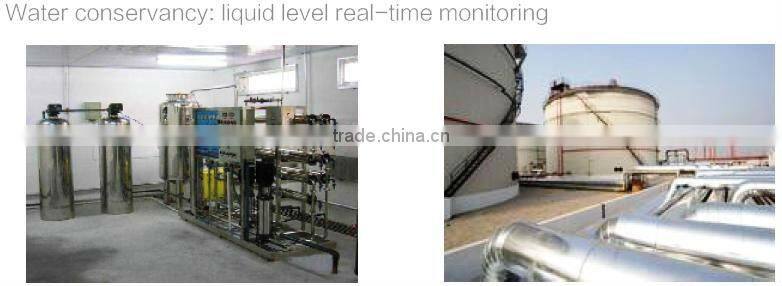

Magnetostrictive sensor use for liquid level controller:

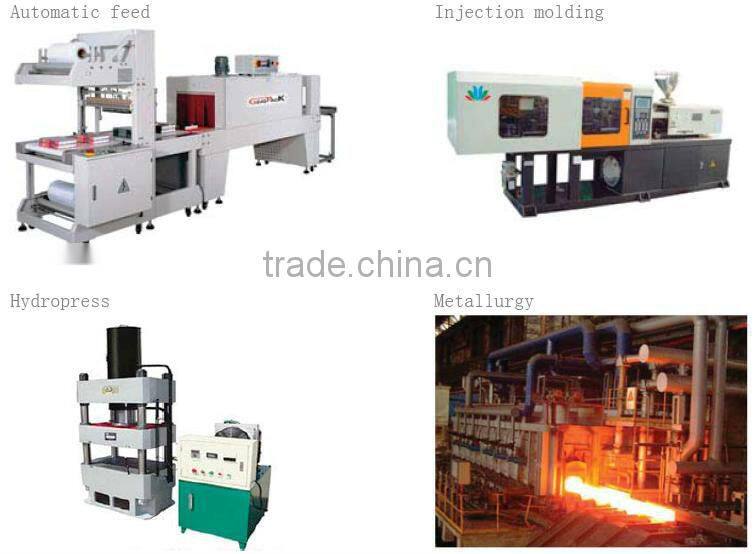

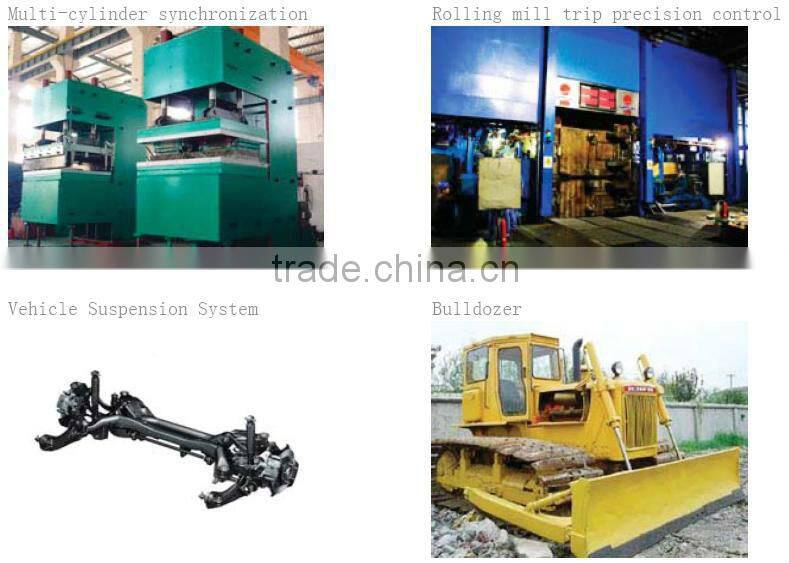

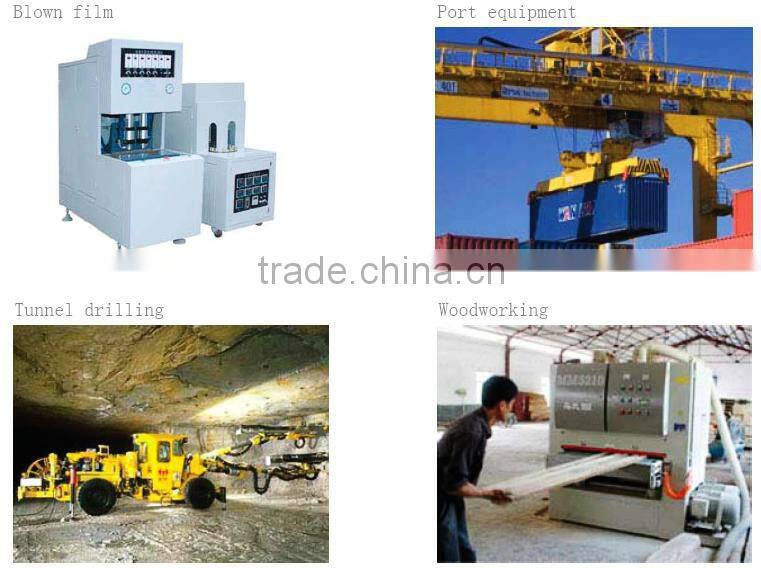

Magnetostrictive position sensor use for displacement measurement:
Application:
SOWAY TECH LIMITED:
Market leader of Lvdt sensor,Magnetostrictive linear position sensor,Liquid level controller/transmitters/switch,Capacitance position and level sensor,Ultrasonic displacement sensor/level meter for industrial,mobile and oil,gas,fuel markets.
Know more informations please visit our website:
