1w power led diode prices 3w power led diode high lumen Bridgelux chip Epistar chip China manufacturer

Specifications

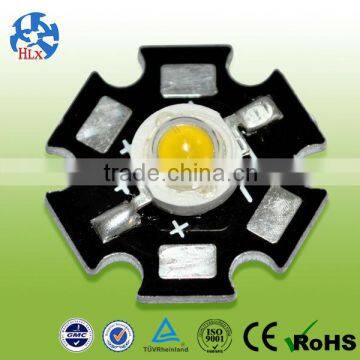

high power led diode diwith pcbs
1,CE ,SGS, RoHS,ISO90012008.
2,High brightness,3 year warranty, reasonable price

100-120lm/w 120-130lm, Bridgelux/ Epistar 1w high power led with pcb
Warm white, cool white, red, green, blue color available
CE ROHS ISO9001 SGS
Low junction temperature, 0 light decay within 1,000hours



1W HIGH POWER LEDS DIODES: Your best choice for led street light

Power consumption: 1w high power led with pcb

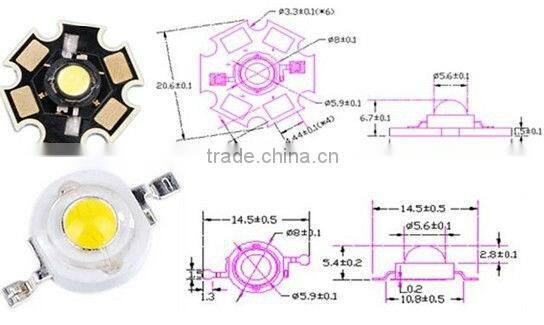

Dimension: Ø8*5.4(H)mm
Voltage:  3.0-3.6V
Current:  350mA
Luminous:  80-90lm, 90-100lm, 100-110lm, 110-120lm, 120-130lm
CCT:  Pure White 5000-7000K
         Warm White 2700-3800K
Beam Angle: 90°/120°/140°
Lifespan: 50,000 hours
Warranty: 2 yesrs
Certicifate: CE & RoHS & ISO9001



1W HIGH POWER LED DIODES MULTIPLE COLOR CHOICES

Item	Color	λd	Light Efficacy	Vf(V)	IF(mA)	Beam Angle
1w high power leds	Red	R:620-630nm	30-50lm	2.2-2.6	350	90/120/140
	Yellow	Y:587-595 nm	30-50lm	2.2-2.6	350	90/120/140
	Purple	P:390-410nm	5-8lm	3.2-4.0	350	90/120/140
	Green	G513-530nm	80-100lm	3.0-3.8	350	90/120/140
	Blue	B:460-470nm	20-35lm	3.0-3.8	350	90/120/140

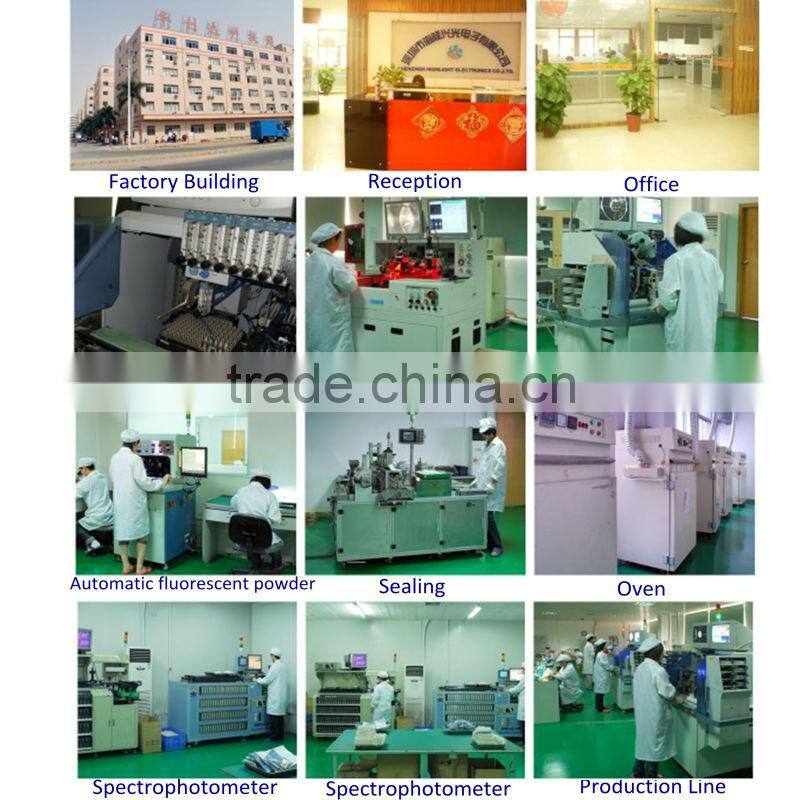

"HIGHLIGHT"  FACTORY POWER
1. 8yrs experienc in LED manufacture from 2006.
2. Pass CE/Rohs/ISO9001, strictly follow quality regulation, gurantee stable quality.
3. Advanced equipments: bonding/encapsulation machine, oven, automatic spectral machine, integrating spheres, power tester.
4. High power Led chip and silica gel and other material are from Japan, American, Taiwan.
5. Competitive 1w 3w high power leds price and other high power leds.



BEST CHOICE FOR YOU, WELCOME YOUR INQUIRY FOR OUR HIGH POWER LED DIODEs prices
