Specifications
100-230lm/w high power led diodes1w 3w white high power led diode with heatsink
90/120/140degree
Epistar/Bridgelux
CE,RoHS
100-230lm/w Epister/Bridgelux 1w white high power led with heatsink&3w high power led diode for street light or grow light
1w 3w 5w 10w 20w 30w 50w 100w high power led diode white,red,green,blue,yellow,purple color high power led diode
1.3w high power led diode:200-230lm
2.1w high power leds diode white:150-160lm
3.chip brand:Epistar and Bridgelux
4..luminous efficiency:100-130lm/w
lor:pure white, warm white,cool whte,natural white
7.chips brand:bridgelux,epistar,epiled
8.beam angle:90°/120°/140°
ing temperature:-20°C~+65°C
10.warranty:3 year
11.life span:5000hours
12.packaging:neutral
13.CCT:2700-3500K 4000-5000K 5500-7000K 7000-12000K
14.input voltage: 1w 3.0-3.8v or 3w 3.6-4.2v
15.Currrent:1w 350ma 3w 700ma
16.Wavelength:red:620-630nm,640-650nm orange:600-612 yellow:588-590nm,590-592nm
17.Green:495-500nm 517.5-522.5nm 569-573nm blue:465-470nm purple:400-410nm
18.Luminous flux:white 100-150lm
Red 50-60lm
Green 40-70lm
Blue 40-50lm
Yellow 30-60lm
Purple 8-10lm
19.Quantity of emitting color: single or dual and RGB
20.certification:CE, RoHS,SGS, ISO9001 approved
100-150lm/w Epistar/Bridgelux 1watt high power led chip & 700ma 3 w high power leds diode with heatsink for street light, high bay light,spotlight,track light
| 3 Watt HIGH POWER LEDS DIODES (WHITE) | |
|
|
| POWER CONSUMPTION | 3 WATTS HIGH POWER LEDS |
| DIMENSION | Ø8*6.7(H)MM |
| ALUMINUM PLATE | Ø20.6MM |
| VOLTAGE | 3.6-4.2V |
| CURRENT | 700MA |
| LUMEN OUTPUT | 160-200LM |
| COLOR TEMP | 2700-3800K & 5000-7000K |
| BEAM ANGLE | 90°/120°/140° |
| OPERATION TEMP | -20°C~40°C |
| WARRANTY | 2 YEARS |
| LIFESPAN | 40,000HOURS |
| CERTIFICATE | CE/ROHS/ISO9001 |

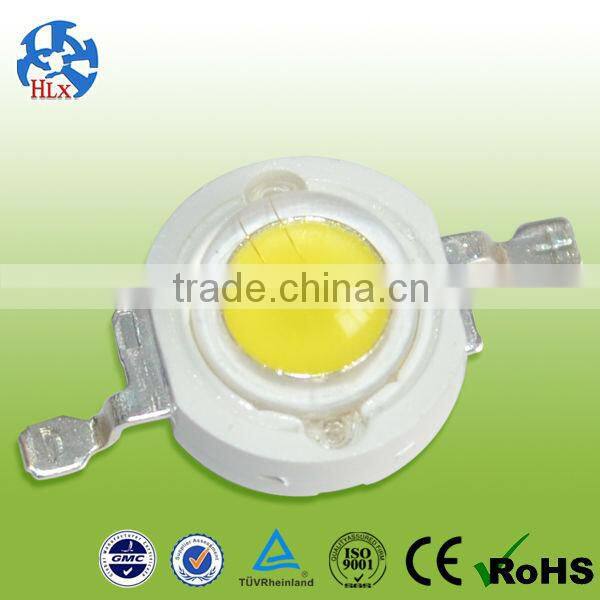

-- ultra efficiency 1W HIGH POWER LEDS DIODES (WHITE) ultra efficiency 150lm
Power consumption: 350ma 1w high power led diode
Dimension: Ø8*5.4(H)mm
Voltage: 3.0-3.8V
Current: 350mA
Luminous: 80-90lm, 90-100lm, 100-110lm, 110-120lm
CCT: Pure White 5000-7000K
CCT: Warm White 2700-3800K
Beam Angle: 90°/120°/140°
Lifespan: 40,000 hours
Warranty: 2 yesrs
Certicifate: CE & RoHS & UKAS ISO9001

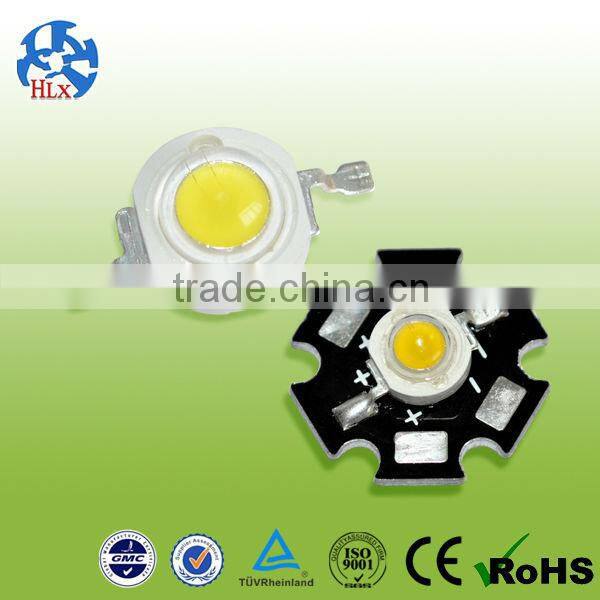

1w high power led available with PCB heat sink.
Raw materieals used for LED are all in high quality level to insure the superior luminous efficiency, long lifespan, and stability. Further with product life cycle contrastive testing, the high level material selected, which definitely achieve minimum brightness decay.
--RGB COLOR 350ma 1W high power diode& 700ma 3 W rbg HIGH POWER LEDS DIODES MULTIPLE CHOICES
| Item | Color | λd | Light Efficacy | Vf(V) | IF(mA) | Beam Angle |
| 1w high power leds | Red | R:620-630nm | 30-50lm | 2.2-2.6 | 350 | 90/120/140 |
| Yellow | Y:587-595 nm | 30-50lm | 2.2-2.6 | 350 | 90/120/140 | |
| Purple | P:390-410nm | 5-8lm | 3.2-4.0 | 350 | 90/120/140 | |
| Green | G513-530nm | 80-100lm | 3.0-3.8 | 350 | 90/120/140 | |
| Blue | B:460-470nm | 20-35lm | 3.0-3.8 | 350 | 90/120/140 | |
| 3 w high power leds | Red | R: 620-630nm | 70-90lm | 2.4-2.8 | 700 | 90/120/140 |
| Yellow | Y: 587-595 nm | 70-90lm | 2.4-2.8 | 700 | 90/120/140 | |
| Green | G: 520-530nm | 90-110lm | 3.0-3.8 | 700 | 90/120/140 | |
| Blue | B: 460-470nm | 40-50lm | 3.0-3.8 | 700 | 90/120/140 | |
| Purple | P: 390-410nm | 8-12lm | 3.8-4.4 | 700 | 90/120/140 |

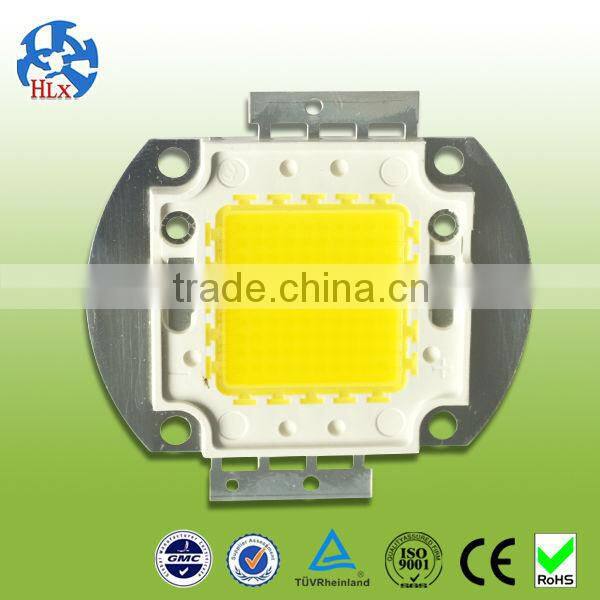

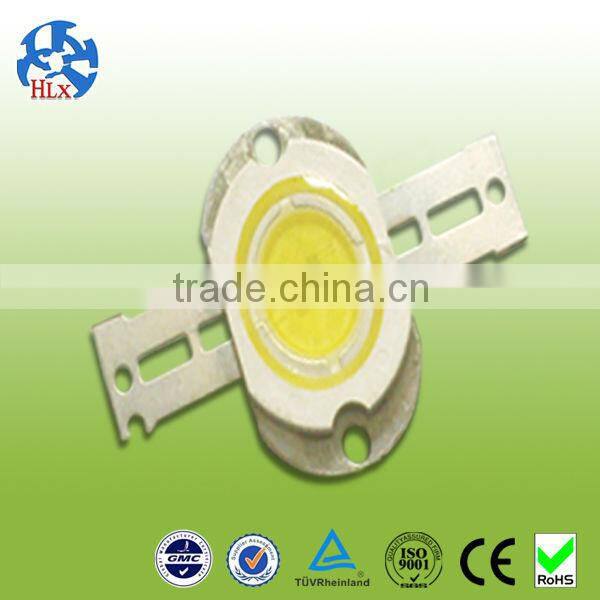

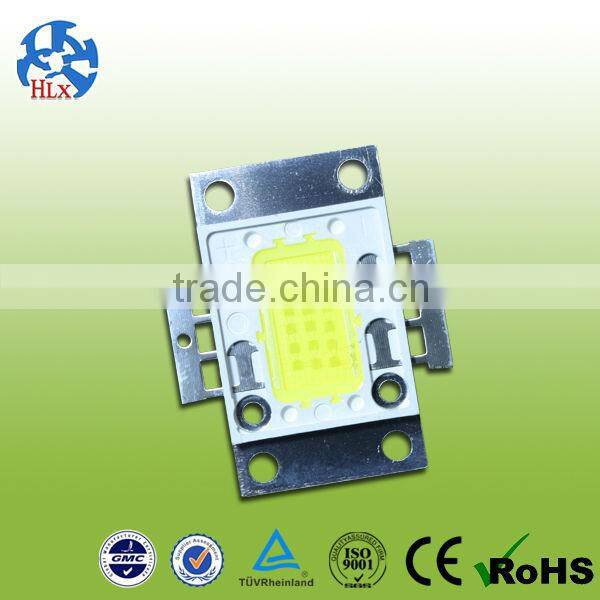

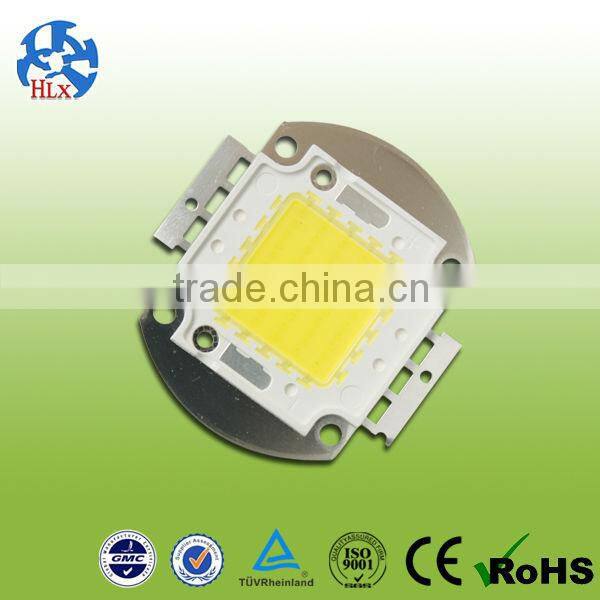

1w /3w/ 5W/10W/20W/30W/50W/100W HIGH POWER LED DIODE with heatsink or not and available red ,green,blue,yellow,purple
1w power led 3w high power led with PCB or not 5/10w led power
20w/30w Power leds 50w led power 100w power led
"HIGHLIGHT" Factory Power
1. 8yrs experienc in LED manufacture from 2006.
2. Pass CE/Rohs/ISO9001, strictly follow quality regulation, gurantee stable quality.
3. Advanced equipments: bonding/encapsulation machine, oven, automatic spectral machine, integrating spheres, power tester.
4. High power Led chip and silica gel and other material are from Japan, American, Taiwan.
5. Competitive 1w 3nw high power led diode price and other high power leds.
Certification
High power leds diodes Package
1w 3w high power led diode without heatsink: 50pcs/blister
1w 3w high power led diode with star heat sink: 40pcs/blister
Welcome your inquiry for our ultra efficiency 350ma 1watt high power leds diodes. ultra efficiency 700ma 3w high power led diodes,incduing 5w ,10w,20w,30w,50w,80w,100w
contact person: Zaki zhang TM ID: cn1501744802 skype: zakizxl MSN: zakizhangzxl QQ NO. : 404637413 MObile: +8613510007636
Send Inquiry to This Supplier
