Specifications
Lighting Tubes&T8 LED Light:1.1400LM for 15W,1.2M
2.Refond SMD3528 30mA
3.CE.ROHS.EMC
4.Low price,high quality and lume
Lighting Tubes&T8 LED Light
Advantages:
1.T8 LED tube green Lighting:green lamp without Pb and Hg tube.
2.Our LED T8 tube light using high quality and high brightness Refond SMD3528 30mA LED diodes as lighting source.High lumens:1300-1400lm for 15W T8 tubes.
3.T8 tube light with LED chip High Efficiency:85-95LM/W
4:Our tube optional PCB design for 15W: 12 in series 12 in parallel&24 in series 6 in parallel in order to satisfied different voltage of the country T8.
5:Our LED tube optional Length:600mm/900mm/1200mm/1500mm T8 tube
6: LED tube light of Power:9W/15W/18W/24W
7:LED tube T8 Optional Size:T5/T8
8:Our LED tube lifespan up to 50,000hours,more than 10 times the life of the traditional fluorescent.
9:LED lighting energy saving and environment friendly, no noise.
Lighting Tubes&T8 LED Light Specification:
| T8 1.2M 15W LED TUBE | ||||||
| model number | picture | Specification | ||||
| HLX-T81201A15 |
|
Voltage | AC85-265V | |||
| PF | >0.9 | |||||
| Color | warm white | nature white | pure white | |||
| TC | 2800-3200K | 4500-5500K | 6000-7000K | |||
| CRI | >75 | >80 | >80 | |||
| Lumens | 1300-1400LM | |||||
| LM/W | 90lm/w | |||||
| Light Source | 30mA SMD3528 Refond Brand | |||||
| Quantity | 144pcs( 24 in series 6 in parallel&12 in series 12 in parallel) | |||||
| Beam Angle | 120degrees | |||||
| Size | Ø28*1218mm | |||||
| Weight | 383g | |||||
| Life | 50000hours | |||||
| Efficient and energy saving | ||||||
| No Stroboscopic | ||||||
| Environment protecting | ||||||
| Easily Assemble | ||||||
| CE,FCC, ROHS.EMC | ||||||
| Warranty:3 years | ||||||
| T8 LED Tube VS T8 Fluorescent Tube | |||
| Power | 0.6M LED TUBE | Replace | 0.6M Fluorescent Tube |
| Normal | 7W | equal to | 20W |
| More Higher | 10W | ||
| Power | 0.9M LED TUBE | Replace | 0.9M Fluorescent Tube |
| Normal | 9W | equal to | 30W |
| more higher | 14W | ||
| Power | 1.2M LED TUBE | Replace | 1.2M Fluorescent Tube |
| Normal | 15W | equal to | 40W |
| More higher | 18W | ||
Lighting Tubes&T8 LED Light: Details:
Quality Control:
The Application of T8 LED Tube
Indoor lighting(livingroom,bedroom,kitchen,washroom)
school ,hospital,hotel,factories,supermaket,shopping mall,commercial complex.
parking lot,airport,subway station,railway station,tunnel.
lobby,hall,square,office.
institution buildings.
Corner of Our Factory
Our Certification CE&ROHS:
Attention
1. Please read the product specification carefully and confirm the use of the environment meets the conditions before use.
2. Make sure the switch is in the off status before connect the power supply.
3. Do not touch the lamp surface by your hands directly when lighting as to prevent from burn.
4. This product is only for indoor use,not water proof version.
After-sales service
If you have any questions in the process of unpacking, installation and use of the product,please contact our customer service department,We will reply within two hours,so please keep your email id and phone number accordingly.
If needed,We will send officers arrived at the scene with the fastest transport, troubleshooting, and resume normal operation.
The Company can not assume warranty service for bellow items:
Damage cause by faulty installation, operation or non-specified operating environment and conditions.
Damage cause by accident, abuse, misuse;Customer’s failure storage and improper transportation.
Damage cause by Man-made or natural disaster
| Product Line Name | Production Line Capacity | Actual Units Produced(Previous Year) |
|---|---|---|
| LED LAMP | 30,000 Pieces / Month | 600,000 Pieces |
Export Market Distribution:
| Market | Revenue(Previous Year) | Total Revenue (%) |
|---|---|---|
| North America | confidential | 32.6 |
| South America | confidential | 7.8 |
| Eastern Europe | confidential | 4.1 |
| Southeast Asia | confidential | 12.8 |
| Oceania | confidential | 18.6 |
| Western Europe | confidential | 17.0 |
| South Asia | confidential | 7.1 |
Production Machinery:
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
|---|---|---|---|---|
| Dice Fixed Device | HOSON, HDB693V | 2 | 1.0 | Acceptable |
| Welding Wire | LG, 505E | 2 | 1.0 | Acceptable |
| Phosphor Power Machines | SPEED3000Si | 1 | 5.0 | Acceptable |
| Glue Irrigate | PAJUIS, BZ-AE-2520D | 3 | 1.0 | Acceptable |
| Baking House | SANGLING | 12 | 4.0 | Acceptable |
| Cutting Machine | ENWENTE | 3 | 4.0 | Acceptable |
| Spectral Machine | H163 | 2 | 1.0 | Acceptable |
| Wire Bonder | UETEL, WT-2310 | 2 | 6.0 | Acceptable |
| Lens Fixed Machine | JLCA-63-25-10E-1T | 1 | 1.0 | Acceptable |

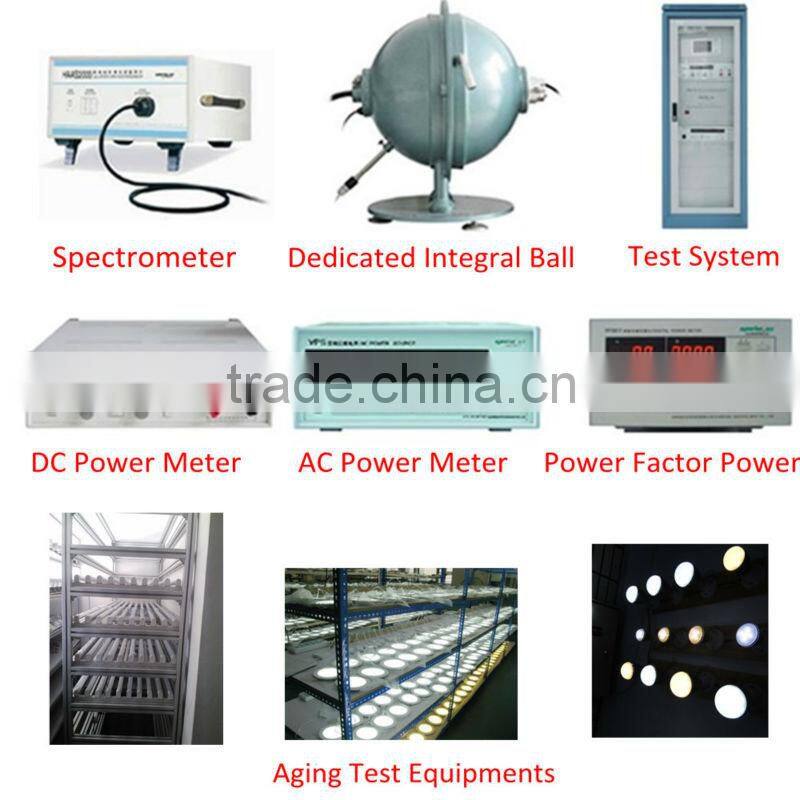

Testing Machinery:
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
|---|---|---|---|---|
| Spectrum Coating Integrating Sphere | EVERFINE, G114122CM5321195A | 1 | 1.0 | Acceptable |
| Color Inspection Machine | STARSPEC, SSP3190 | 1 | 3.0 | Acceptable |
| Lamp Complete Analysis System | EVERFINE, PMS-80 | 1 | 1.0 | Acceptable |
Certification:
| Certified Picture | Certification Name | Certified By | Certificate No. | Product Name & Model No. | Available Date --- Expired Date |
|---|---|---|---|---|---|
|
CE | Shenzhen BST Technology Co., Ltd. | BST12100289Y-1SC-2 | LED CORN LIGHT, HLX-CRP3501, HLX-CRP5001, HLX-CRP6001 | 2012/11/01 --- 2049/12/31 |
|
CE | Shenzhen BST Technology Co., Ltd. | BST12100287Y-1EC-1 | LED TUBE LIGHT, HLX-T81201A24-SMD3528, HLX-T81201A18-SMD3014, HLX-T80602A12-SMD3528 | 2012/11/01 --- 2049/12/31 |
|
RoHS | Shenzhen BST Technology Co., Ltd. | BST12100287Y-1RC-4 | LED TUBE LIGHT, HLX-T81201A24-SMD3528, HLX-T81201A18-SMD3014, HLX-T80602A12-SMD3528 | 2012/11/01 --- 2049/12/31 |
|
RoHS | Shenzhen BST Technology Co., Ltd. | BST12100290Y-1RC-4 | LED PANEL LIGHT, HLX-PL-060601, HLX-PLR1801, HLX-PLR2401 | 2012/11/01 --- 2049/12/31 |
|
CE | Shenzhen BST Technology Co., Ltd. | BST12100290Y-1SC-2 | LED PAR LIGHT, HLX-PL060601, HLX-PLR1801, | 2012/11/01 --- 2049/12/31 |
|
CE | Shenzhen BST Technology Co., Ltd. | BST12100288Y-1EC-1 | LED PAR LIGHT, HLX-PAR3806A12-24W, HLX-PAR3004A06-12W, HLX-PAR3806A12-24WD | 2012/11/01 --- 2049/12/31 |
|
CE | Shenzhen BST Technology Co., Ltd. | BST12100288Y-1SC-2 | LED PAR LIGHT, HLX-PAR3806A12-24W, HLX-PAR3004A06-12W, HLX-PAR3806A12-24WD | 2012/11/01 --- 2049/12/31 |
|
CE | Shenzhen BST Technology Co., Ltd. | BST12100290Y-1EC-1 | LED PANEL LIGHT, HLX-PL060601, HLX-PLR1801, HLX-PLR2401 | 2012/11/01 --- 2049/12/31 |
| CE | Shenzhen BST Technology Co., Ltd. | BST12100287Y-1SC-2 | LED TUBE LIGHT, HLX-T81201A24-SMD3528, HLX-T81201A18-SMD3014, HLX-T8060A12-SMD3528 | 2012/11/01 --- 2049/12/31 | |
| CE | Shenzhen BST Technology Co., Ltd. | BST12100289Y-1EC-1 | LED CORN LIGHT, HLX-CRP3501, HLX-CRP5001, HLX-CRP6001 | 2012/11/01 --- 2049/12/31 |
