Specifications
100-150lm/w high power led diodes1w 3w high power leds w/o & with heat sink
90/120degree
Epistar/Bridgelux chip
CE ROHS
1w 3w 5w 10w 20w 30w 50w 100w high power led diodes type
3w high power leds 200-230lm
1w high power leds 100-120lm
CE, SGS, ISO9001 approved
Multi-color high power led diodes: white, Red, Green, Blue, Yellow, Purple
Epistar Bridgelux chip or other brands
High lumen, 100-120lm/w
100-150lm/w Epistar/Bridgelux 1watt high power led & 3w high power leds diode with heat sink for street light, high bay led
| 3W HIGH POWER LEDS DIODES (WHITE) | |
|
|
| POWER CONSUMPTION | 3W HIGH POWER LEDS |
| DIMENSION | Ø8*6.7(H)MM |
| ALUMINUM PLATE | Ø20.6MM |
| VOLTAGE | 3.6-4.2V |
| CURRENT | 700MA |
| LUMEN OUTPUT | 160-200LM |
| COLOR TEMP | 2700-3800K & 5000-7000K |
| BEAM ANGLE | 90°/120°/140° |
| OPERATION TEMP | -20°C~40°C |
| WARRANTY | 2 YEARS |
| LIFESPAN | 40,000HOURS |
| CERTIFICATE | CE/ROHS/ISO9001 |
--1W HIGH POWER LEDS DIODES (WHITE)
Power consumption: 1w high power led diode

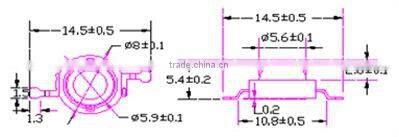

Dimension: Ø8*5.4(H)mm
Voltage: 3.0-3.8V
Current: 350mA
Luminous: 80-90lm, 90-100lm, 100-110lm, 110-120lm
CCT: Pure White 5000-7000K
CCT: Warm White 2700-3800K
Beam Angle: 90°/120°/140°
Lifespan: 40,000 hours
Warranty: 2 yesrs
Certicifate: CE & RoHS & UKAS ISO9001

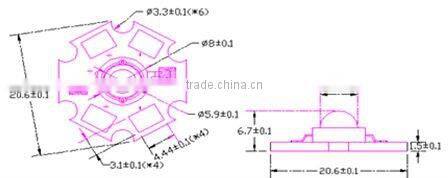

1w high power led available with PCB heat sink.
Raw materieals used for LED are all in high quality level to insure the superior luminous efficiency, long lifespan, and stability. Further with product life cycle contrastive testing, the high level material selected, which definitely achieve minimum brightness decay.
--RGB COLOR 1W &3W HIGH POWER LEDS DIODES MULTIPLE CHOICES
| Item | Color | λd | Light Efficacy | Vf(V) | IF(mA) | Beam Angle |
| 1w high power leds | Red | R:620-630nm | 30-50lm | 2.2-2.6 | 350 | 90/120/140 |
| Yellow | Y:587-595 nm | 30-50lm | 2.2-2.6 | 350 | 90/120/140 | |
| Purple | P:390-410nm | 5-8lm | 3.2-4.0 | 350 | 90/120/140 | |
| Green | G513-530nm | 80-100lm | 3.0-3.8 | 350 | 90/120/140 | |
| Blue | B:460-470nm | 20-35lm | 3.0-3.8 | 350 | 90/120/140 | |
| 3 w high power leds | Red | R: 620-630nm | 70-90lm | 2.4-2.8 | 700 | 90/120/140 |
| Yellow | Y: 587-595 nm | 70-90lm | 2.4-2.8 | 700 | 90/120/140 | |
| Green | G: 520-530nm | 90-110lm | 3.0-3.8 | 700 | 90/120/140 | |
| Blue | B: 460-470nm | 40-50lm | 3.0-3.8 | 700 | 90/120/140 | |
| Purple | P: 390-410nm | 8-12lm | 3.8-4.4 | 700 | 90/120/140 |
--WHITE 5W/10W/20W/30W/50W/100W HIGH POWER LEDS DIODES
"HIGHLIGHT" Factory Power
1. 8yrs experienc in LED manufacture from 2006.
2. Pass CE/Rohs/ISO9001, strictly follow quality regulation, gurantee stable quality.
3. Advanced equipments: bonding/encapsulation machine, oven, automatic spectral machine, integrating spheres, power tester.
4. High power Led chip and silica gel and other material are from Japan, American, Taiwan.
5. Competitive 1w 3w high power led diode price and other high power leds.
High power leds diodes Package
1w 3w high power led diode without heatsink: 50pcs/blister
1w 3w high power led diode with star heat sink: 40pcs/blister
Welcome your inquiry for our 1w high power leds diodes. 3w high power led diodes
Production Capacity:
| Product Line Name | Production Line Capacity | Actual Units Produced(Previous Year) |
|---|---|---|
| LED EMITTING DIODE | High Power LED 5,000,000 Pieces / Month,LED Diode 30,000,000 Pieces / Month | High Power LED 115,000 Pieces,LED Diode 330,000,000 Pieces |
Production Machinery:
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
|---|---|---|---|---|
| Welding Wire | LG, 505E | 2 | 1.0 | Acceptable |
| Phosphor Power Machine | MUSASHI | 2 | 1.0 | Acceptable |
| Glue Irrigate | PAJUIS, BZ-AE-2520D | 2 | 1.0 | Acceptable |
| Vacuum Machine | YIHEXING | 2 | 2.0 | Acceptable |
| Cutting Machine | SINCO | 4 | 4.0 | Acceptable |
| Spectral Machine | H163 | 2 | 1.0 | Acceptable |
| Lens Fixed Machine | JLCA-63-25-10E-1T | 1 | 1.0 | Acceptable |
| Extend Dice Machine | XIONGNA | 2 | 3.0 | Acceptable |
| Dice Fixed Device | WECON, DB156 | 2 | 1.0 | Acceptable |
Thank you for your business !
