Cutting Tools TiN CrN AlTiN AlCrN hard PVD coating machine for end mill, insert, hob
| DETAILED DESCRIPTION |
| BRIEF INTRODUCTION |
This machine is suitable to the industrial production vacuum coating system. It equips a big size arc ion evaporation source and can deposite high performance hard metal film by arc evaporation technology, such as TiN, TiCN,AlTiN and all kinds of other special film according to customer’s requirements.
Turnkey Solution
Opportunity for Starters in PVD Coating for Tools
PVD tool coatings are used in an increasing number of applications, because the increased hardness of the tool surface ensures resistance to wear and oxidation. PVD coating technology is not only an environmentally friendly method, it increases tool productivity substantially. With good reason PVD coating has become a fast growing industry with good profitability. Therefore more and more job coaters, regrinders and tool makers invest in PVD coating equipment.
Regrinders / tool makers
For regrinders as well as tool makers it is very important to act fast and be flexible. It is a way to distinguish yourself from the competition. For job coaters overnight turnaround belongs to the possibilities. And a better control of the tool coating quality is a result from bringing PVD coatings in-house. Lots of reasons to consider starting in PVD coatings.
| FEATURES |
*Using the most advanced vacuum coating technology, perfect system design for products provide a strict production environment
* Any rough coating workpiece will be detected by a very advanced precision instrument
*Every coating system can be lowest cost and most widely used.
*Fully automatic computer control, closed cycle process control, make the system safer, more easy for customer handing.
*This system is “push and play “deposit system, do not need extra cost
*System arrival, install rapid and simple, can be income on the same day
| COATING FILM |
Coating |
TiN |
TiCN |
CrN |
Structure |
Single layer |
Multi-layer/gradient |
Single/multi-layer/gradient |
Thickness |
2 – 7 µm |
3 – 7 µm |
2 – 7 µm |
Hardness |
2,500 HV |
3,000 HV |
2,300 HV |
Advantage |
excellent hardness and anti-adhesion |
excellent hardness and anti-adhesion |
Excellent adhesion, hardness and strength, oxidative resistance and chemical inertness |
Coating |
AlTiN |
ZrN |
Structure |
Single layer |
Single layer |
Thickness |
1 – 7 µm |
2 – 7 µm |
Hardness |
3,400 HV |
2,600 HV |
Advantage |
Excellent were-resistance, oxidative resistance and anti-finger,good adhesion. |
Micro roughness can be adjusted to a limited specification, ideal choice for the tapping and decorative applications. |

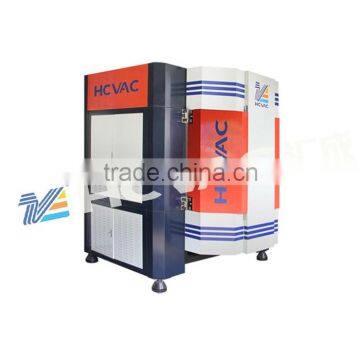

| MACHINE PHOTOS |

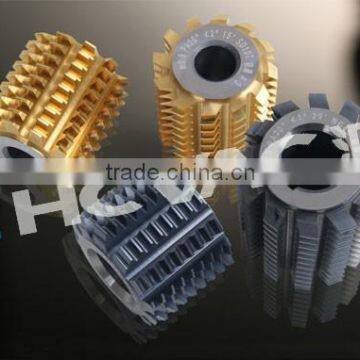

| SAMPLE PHOTOS | |
| ABOUT HUICHENG |
production, and marketing kinds of Vacuum coating machine and related products. We start in this field in1997,and already install machines more than 65 countries.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.
Easy to implement
To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: stripping (depending on the part’s history); pre-treatment; quality control; cleaning & drying; fixturing & visual inspection; PVD coating; quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.
| HUICHENG HONOR |
| PHOTO WITH CLIENTS & SUCCESSFUL CASE |
We developed a complete after-sales system and effective service measures. Company now
owns a professional after-sales service team with more than ten experienced engineers.
ISO 9001 standard to ensure the quality can meet the customer’s requirements.
Please feel free to contact us for further information!
Contact: Lillian Yang
Mobile: 0086-13825720037 (WhatsApp,wechat)
Skype: lillianyoung
Email: lillian(at)
