| Planetary screw barrel |

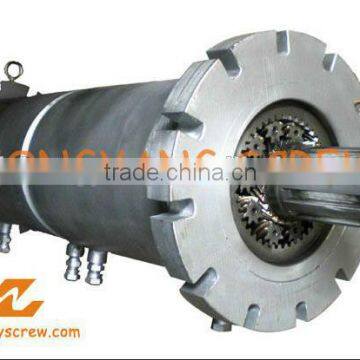

| Product Pictures of Planetary screw barrel |
| Product Description of Planetary screw barrel |
Planet Screw Barrel/cylinder planetary screw for plastic extruder Machine | |||||
Diameter |
Φ70mm-Φ190mm |
Design |
Screw structure and compression ratio can be designed according to different products & different clamping force requirement. We can select&design the matching screw barrel to meet your requires. |
||
Materials |
38CrMoAlA (JIS SACM645) SKD61 GH113 |
Application |
All kinds plastic & rubber and All kinds of glass fiber,the PPA, PPS, PA6T, LCP, electric wood powder, magnetic powder ,iron powder and other special engineering plastics . |
||
Nitride Case Depth |
0.5mm-0.8mm |
Technology |
1.Longer time Gas Nitriding treatment 2.special anti-wear & abrasion alloy(bimetallic) 3.tungsten carbide balt base alloy 5.stainless steel 6.Gh113 nickel based alloy |
||
Nitride Hardness |
960-1060HV |
Packing |
Wrapped up by film in wooden |
||
Nitride Brittleness |
≤Grade One |
Payment Term |
T/T , L/C |
||
Surface Roughness |
Ra0.4um |
Delivery Term |
25 working days |
||
Screw Straightness |
0.015mm |
Port Departure |
Shanghai/Ningbo |
||
Alloy Hardness |
HRC58-70 |
Min. Order |
1 set |
||
Alloy Depth |
1.5mm-3.5mm |
Guarantee |
Common Nitrided:2.5-4years Bimetallic: much longer lifetime. |
||
Technological Process:
Blanking→Rough Machining→Quenching & Tempering →Semi Finishing Machining
→Finished Product→Detecting→Nitring/Alloy Processed →Finish Machining
Advantages of Planet/Planetary screw barrel for plastic extruder machine:
1.Advanced Nitriding Technology
2.Anti-corrosion and Wear-resisting Duplex Alloy Spraying Technoloy
3.We use special alloy powders being sprayed and welded on the screw's ridge,
and use different alloy and welding methods for the screw of different functions.
Advantages of Bimetallic planet/planetary screw barrel:
Our bimetallic planet screw barrel for extrusion machine can ensure the well performance and low energy consumption of extruder machine. We insist
on the principle of "quality first, honest to customers, the quickest service for
customers” to improving us, our goal is to satisfy our customers.
| Products Application of Planetary screw barrel |
| Packaging and Shipping |
Shipped within 30 days after receiving down payment.
Packed with Slushing oil coated and film wrapped in wooden case.
| More Products for You to Choose |
| Company Show |
| Why Choose us ? |
♦ Production line
♦ Exhibition Information
♦ Certifications
| Our Markets |
| Through years of developing, we satisfy our customer all over the world with mainly market in Europe, South America, Asia, Middle East, ect. Till now,we have served more than 100 customers from 42 different countries all over the world. And we are very confident we will have more and more customers because our teams always strive to complement and meet our customers needs in all aspects. |
|
Welcome to contact us If you are looking for a reliable screw barrel supplier,you won't be wrong to choose us! |
