Help CenterEye Glasses Frames PVD Vacuum Coating Machine/glasses Frames Decorative PVD Coating Machine
Related Products
-
Titanium Nitride PVD Coating Equipment for TiN,TiC,CrN,TiCN,TiAlN FilmUS$ 30,000 - 6,000,000MOQ: 1 Set -
Furniture Handles Chrome Metalizing MachineNegotiableMOQ: 1 Set
-
Whatch Black&blue Color Coating Machine/Whatch Gold&rose Gold Color Coating MachineNegotiableMOQ: 1 Set
-
Gold Vacuum Plating Equipment(IPG)NegotiableMOQ: 1 Set
-
High Quality Stainless Steel Cutlery PVD Vacuum Coating Machine/Stainless Steel Cutlery PVD Titanium Coating MachineNegotiableMOQ: 1 Set
Eye glasses frames PVD vacuum coating machine/glasses frames decorative PVD coating machine can deposit TiN, TiC,TiCN,TiAlN,CrN etc decotive coatings. Its main features that are steady quality of coating. Machine is automatic control, easy operation and maintenance.
Applied industry of Eye glasses frames PVD vacuum coating machine/glasses frames decorative PVD coating machine:
It is widely used in the watchband, watchcase, jewelry, mobile shell, hardware, tableware, etc. It can coat IPG,IPR,IPB and other decorative films.18K gold coating,22K gold coating, 24K gold coaing and rose gold coating. It can get fineness and smooth film,good adhesion.
Characteristic:
1. The principle of magnetron sputtering is based on the cathode glow discharge theory, expanding the cathode surface magnetic field close to the surface of workpiece, to increased the ionized rate of sputtering atoms. It retains the delicate of the magnetron sputtering and increased the glossiness.
2.The performance of electric arc plasma evaporation source is reliable, be able to work under the current 30A when optimize the cathode and magnetic field structure coating, and the coating film and substrate interface produce atomic diffusion, plus the feature of the ion beam assisted deposition.
Technical Parameter:
|
Mode Dimension |
JTL-0910 |
JTL-1100 |
JTL-1250 |
900*1000mm |
1100*1000mm |
1250*1500mm |
|
|
Coating mode and main confirguration |
Six multi-arc targets + one set of column targets + one set of plane rectangle magnetron sputtering targets |
Eight multi-arc targets + a pair of twin (MF)magnetron sputtering targets |
Twelve multi-arc targets + two sets of plane rectangle magnetron sputtering targets+ a pair of twin (MF)magnetron sputtering targets |
Power source |
Electric arc power, DC magnetron power, MF magnetron power, filament power, pulse power, linear ionized source. |
||
Process gas control |
Quality flowmeter + electromagnetism ceramic valve |
||
Vacuum chamber structure |
Vertical single(side) door, pump system postposition, double water-cooling |
||
Vacuum system |
Molecule pump +Roots pump +Mechanical pump(5.0*10-5Pa) Diffusion pump +Roots pump +Mechanical pump(5.0*10-4Pa) |
||
Workpiece baking temperature |
Normal temperature to 350 centi-degree PID control, radiation heating. |
||
Workpiece motion mode |
Public rotation Frequency control: 0-20 rotation per minute |
||
Measure mode |
Number display composite vacuum gauge: from atmosphere to 1.0*10-5Pa |
||
Control mode |
Manual/Automatic/PC/PLC + HMI/PC four choice of control mode |
||
Remark |
We can design the dimension of the equipment according to customer’s special technique requirement. |
||
We can design the dimension of the vacuum chamber according to your requirements. We can also design and configure the vacuum unit and electric controlling system according to your requirement.

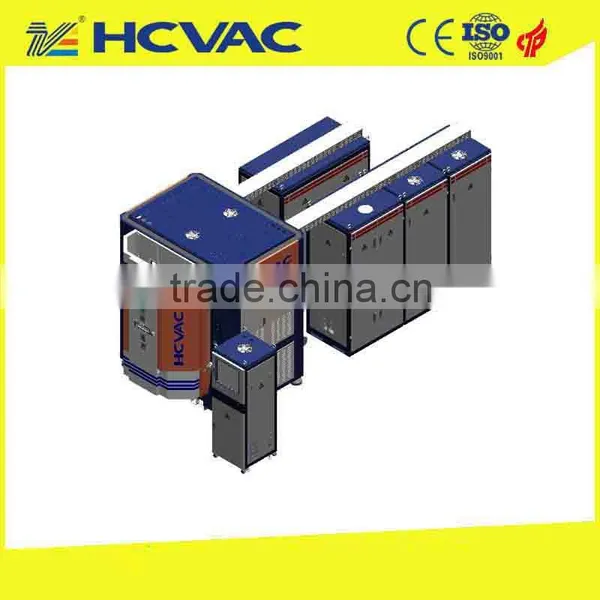

These are the working Eye glasses frames PVD vacuum coating machine/glasses frames decorative PVD coating machine

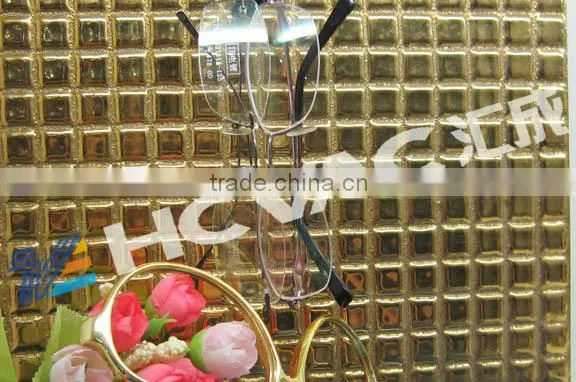

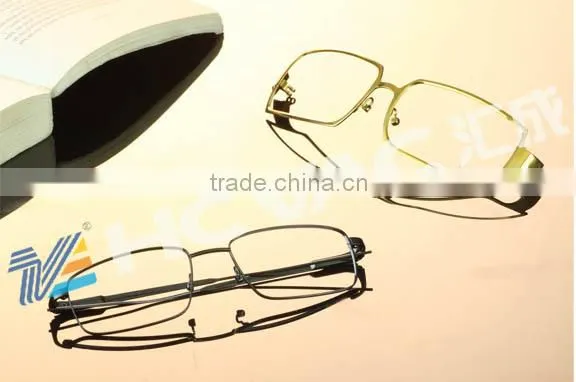

These are the samples was coated by our Eye glasses frames PVD vacuum coating machine/glasses frames decorative PVD coating machine:

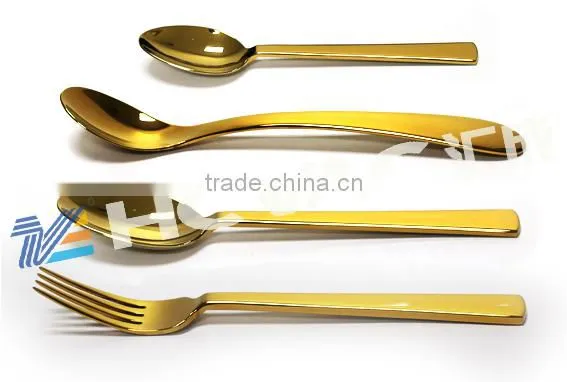

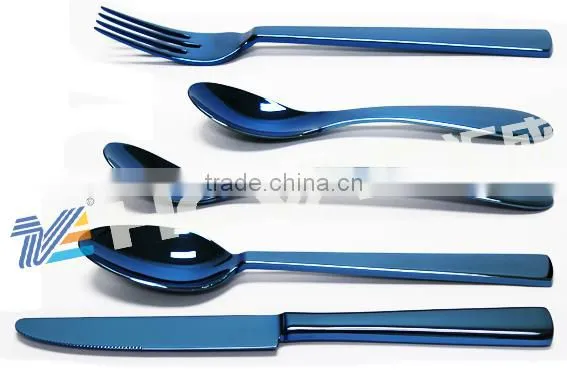

This model machine can not only coat glasses frame, but also other stainless steel products for get very good quality coating:
Some of the honors:
For more information about machine, please contact Kelly who will be glad to explain more details to you.
Mobile phone No.: 008613650364433
Wechat: 008613650364433
What's app: 008613650364433
Skype: kellykelly5291
QQ: 545605015
