Bathroomware/sanitaryware PVD Gold Coating Machine/ Sanitary hardware PVD Titanium coating machine gradually play a leading role technique of supttering coating field.the reason why this machine advantage with DC sputtering coating characteristic
1)surmount anode disppear phenomenon
2)Recede or eliminate abnormal arc light discharge of target Therefore, its had advanced performance stability of sputtering processing and deposit rate of dielectric film.
We had developed plane target, columnar target, twin targets ect. MF sputtering target struture and layout .lt is widely used in thewatchband,watchcase,mobile shell,hardware tableware,etc.lt can coat TiN,TiC, TiCN, TiAIN, TrN,Cu,Au. and other decorative films.
|
Mode Dimension |
JTL-900 |
JTL-1100 |
JTL-1250 |
900*1000mm |
1100*1000mm |
1250*1100mm |
|
|
Coating mode and main confirguration |
Six multi-arc targets + one set of column targets + one set of plane rectangle magnetron sputtering targets |
Six multi-arc targets + a pair of twin (MF) magnetron sputtering targets |
Twelve multi-arc targets + two sets of plane rectangle magnetron sputtering targets+ a pair of twin (MF)magnetron sputtering targets |
Power source |
Electric arc power, DC magnetron power, MF magnetron power, filament power, pulse power, linear ionized source. |
||
|
Process gas control |
Quality flowmeter + electromagnetism ceramic valve |
||
|
Vacuum chamber structure |
Vertical single(side) door, pump system postposition, double water-cooling |
||
Vacuum system |
Molecule pump +Roots pump +Mechanical pump(5.0*10-5Pa) Diffusion pump +Roots pump +Mechanical pump(5.0*10-4Pa) |
||
|
Workpiece baking temperature |
Normal temperature to 350 centi-degree PID control, radiation heating. |
||
|
Workpiece motion mode |
Public rotation Frequency control: 0-20 rotation per minute |
||
Measure mode |
Number display composite vacuum gauge: from atmosphere to 1.0*10-5Pa |
||
Control mode |
Manual/Automatic/PC/PLC + HMI/PC four choice of control mode |
||
Remark |
We can design the dimension of the equipment according to customer’s special technique requirement. |
||

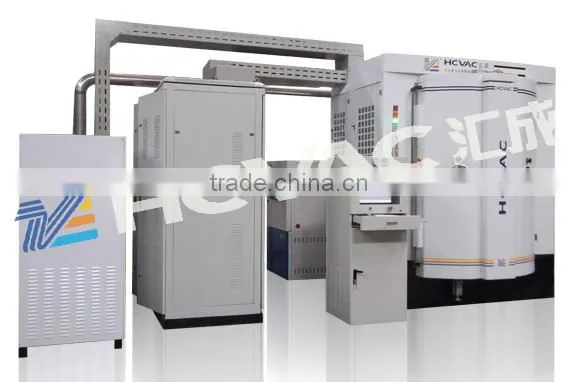

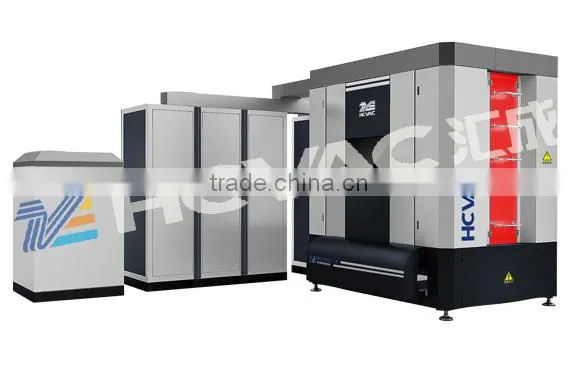

These are some of our Bathroomware/sanitaryware PVD Gold Coating Machine/ Sanitary hardware PVD Titanium coating machine :
These are some of products coated by our machine:

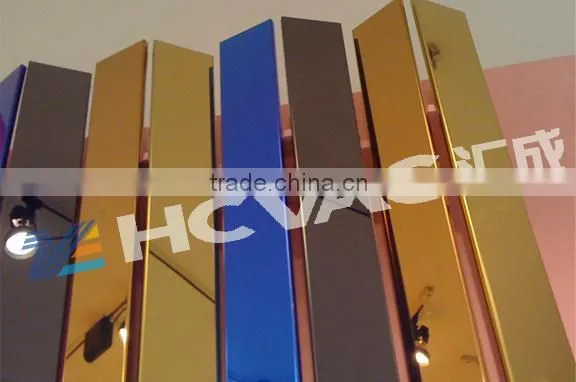

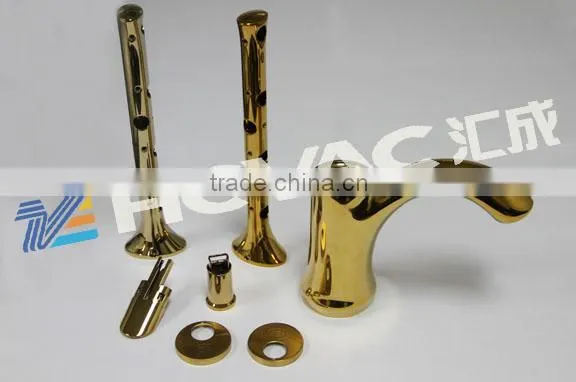

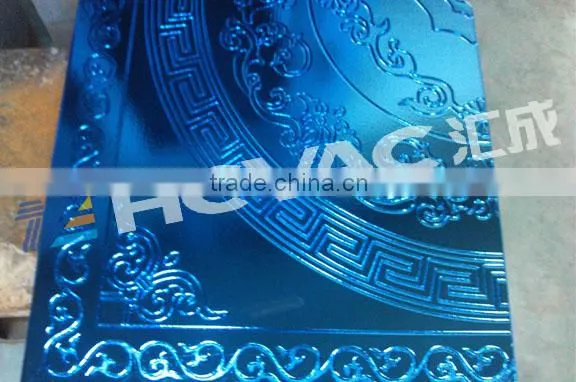

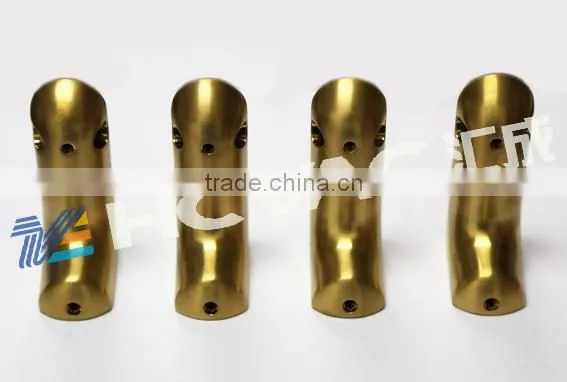

1.Metal(hardware) samples coated by our Bathroomware/sanitaryware PVD Gold Coating Machine/ Sanitary hardware PVD Titanium coating machine :

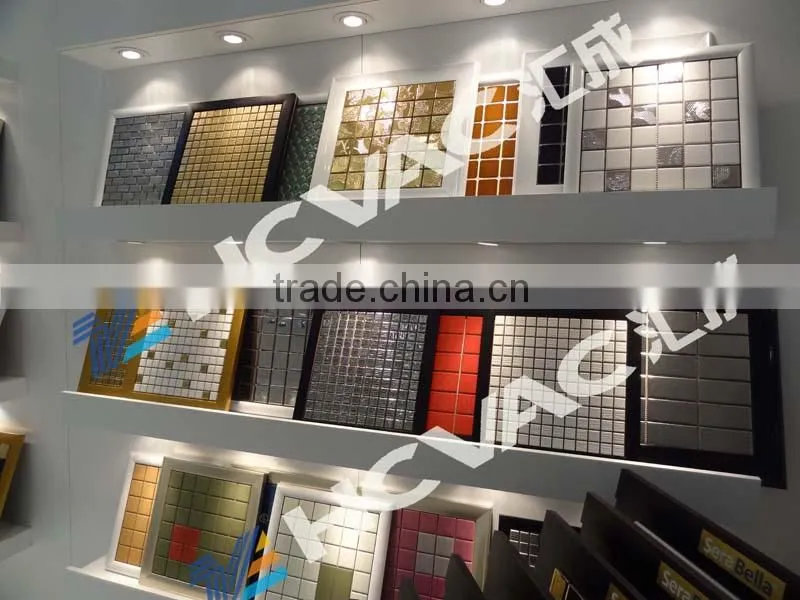

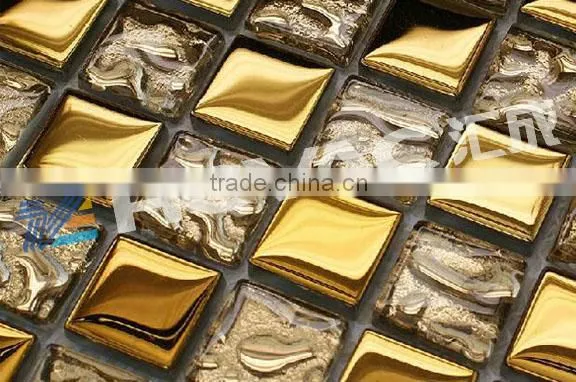

2.Ceramic samples coated by our machine:
Quality management and some of our honor:
For more information, please contact with Kelly, anytime feel free:
Mobile: 86 13650364433
Whatsapp: 86 13650364433
Skype: kellykelly5291
QQ: 545605015
wechat: 008613650364433
