| DETAILED DESCRIPTION |
This is a ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate , great ionization rate, big ion energy,easy operation, low cost, large productive capacity, etc.It's the more advanced technology to replace traditional electroplating way.

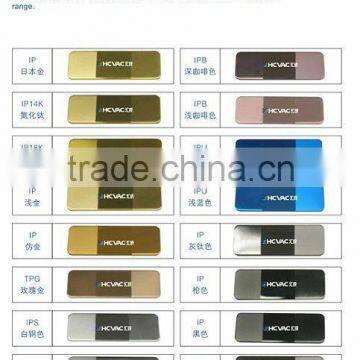

Popular colors which could get by PVD:
Real gold an real rosegold coating
Imitation gold series: TiN, ZrN, TiN+Au, ZrN+Au
Rose Gold Series: TiCN, TiAlN, TiCN+Au--Cu, TiAlN+Au, Cu
Silver white series: CrN, CrSiN, Zr (micro N)
Grey series: Ti, stainless steel (S.S), (S.S) N
Coffee color series: TiCN, TiAlCN, ZrC
Blue series: TiO, CrO, TiALN
Black Series: TiC, TiC+iC, TiCN, TiAlN, TiAlCN, Ti (C, O) and DLC
| FEATURES |
The equipment integrates the plasma treatment, high-end cathode magnetron sputtering, resistance evaporation coating equipment, large load rotation frame and the automatic control technique. It has the reliable work, good repeatability and consistency., fast deposition rate, high adhesion, fine film, etc. The coating film is dense and hardness with low friction coefficient, to keep the smoothness of original workpiece surface, good flexibility, hard to break and fall.
The equipment makes full automation of the coating technology come true. It uses the vacuum coating technique to coat on the surface of the base material. It has the features of low cost, high qualification rate, green environmental protection etc.
| APPLICATION |
It can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper , and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film ( TiN, TiC, TiCN, TiAlN, CrN, Cu, Au, Al2O3and other decorative films etc.) and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment.
This machine is extensively used in the fields of decorative coating for stainless steel, ceramic tile/cups, computer, mobile phone, watch& jewelry, sanitary, home appliance, hotel products etc.
| TECHNICAL DATA |
| Mode | LH-1215 | LH-1618 | LH-2121 |
| Dimension | D1250*H1500mm | D1600*H1800mm | D2100*H2100m |
|
Coating mode and main confirguration |
Twelve arc targets | Eighteen arc targets | Twenty two arc targets |
| Power source | Electric-arc power, Filament power, Pulsed bias power supply | ||
| Process gas control | Mass flowmeter + Electromagnetic ceramic valve | ||
|
Vacuum chamber structure |
Vertical side opening door, pump system postposition, double water cooling | ||
| Vacuum system | Diffusion pump +Roots pump +Mechanical pump(5.0*10-4Pa) | ||
| Workpiece baking temperature | Normal temperature to 350 centi-degree PID control, radiation heating. | ||
| Workpiece motion mode | Public rotation Frequency control: 0-20 rotation per minute | ||
| Measure mode | Number display composite vacuum gauge: from atmosphere to 1.0*10-5Pa | ||
| Control mode | Manual/Automatic/PC/PLC + HMI/PC four choice of control mode | ||
| Remark | We can design the dimension of the equipment according to customer’s special technique requirement. | ||

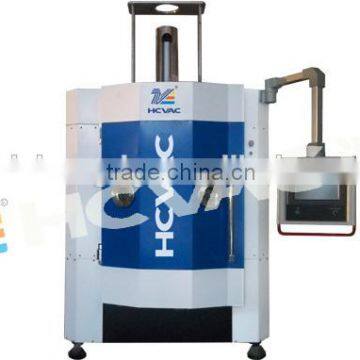

| MACHINE PHOTOS |

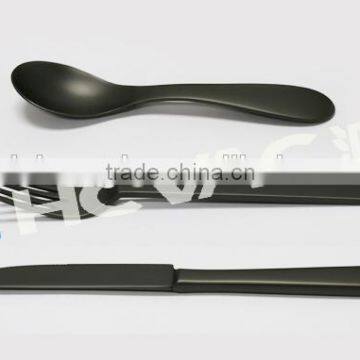

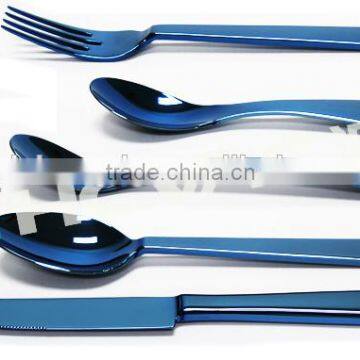

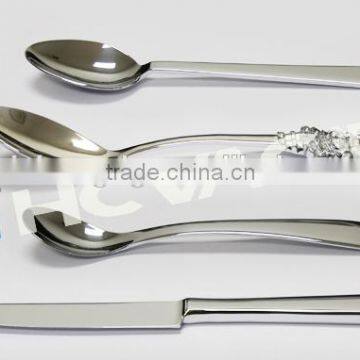

| SAMPLE PHOTOS | |
Stainless steel:
Brass:
Ceramic:
Glass:
Alloy:
| ABOUT HUICHENG |
production, and marketing kinds of Vacuum coating machine and related products. We start in this field in1997,and already install machines more than 65 countries.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.
1.Professional sales person and technical team to lead you to invest the project with best budget.Turn-key project offering.
2.Quality control,high technology productivity to make sure the good quality machine production.
3.1 year warranty was provided since the date of delivery. In 1 year's warranty,For small problems about the machine,our profesional after-sales team will help to solve on line.For big problem,we will dispatch the engineer to your factory to solve problem.Large experienced engineer team is ready to serve all of you in the whole world.
