Specifications
Worm Wheel Wafer Type Eccentric Butterfly Valve1.Material:Bronze/Steel.
2.Size:DN80---DN600.
3.Pressure:1.6MPa.
Worm Wheel Wafer Type Eccentric Butterfly Valves
1.Material:Steel/Bronze
2.Size:DN80---DN600.
3.Pressure:1.6MPa/Class 150/150LB
4.CE,BV,CCS,ABS,ISO,certification
5.OEM & ODM
| standard | JIS,DIN,ANSI,API |
| Size | DN80---DN600 |
| Pressure | 1.6MPa |
| Material | cast steel,stainless steel,bronze,cast iron |
| Body | WCB,Stainless steel,cast iron,Bronze |
| Disc | CF8,CF8M,C95400,C95500,C83600 |
| Bonnet | Bronze, stainless steel |
| Stem | Staineless steel,Bronze,Cast steel |
| Seal ring | NBR/FPM |
| Operation Model | Electric,Hydraulic,Handle |
| Application | Marine,Ship,Industrial,ETC |
We can make the valve as your require:
1.material:bronze/cast steel/stainless steel
2.flange standard: API/JIS/DIN/ANSI
3.certificate:CCS/ABS/BV/DNV/LR.
Product Photo Show
Our factory advantages:
1.Rich experience more than 10 years in this line.
2.Advanced equipments
3.Complete quality control system.
4.Direct factory & Good service and best price.
Work Shop
Our service:
1, Sample available.
2, Customer design OK.
3,12 months warranty
Application
Why choose us?
1) World Class Valves: We provide our customers with world class quality.
2) Non Standard Valves: Any requirement for Non-Standard valves is fulfilled.
3) Products with Excellent Quality: Our company provide 100% quality products it provides with cenuine intent.
4) After Sales Service and Technical Assistance: Our company provides after sales service and technical assistance as the customers requirements.
5) Fast Delivery: Our company provides the just-in-time delivery.

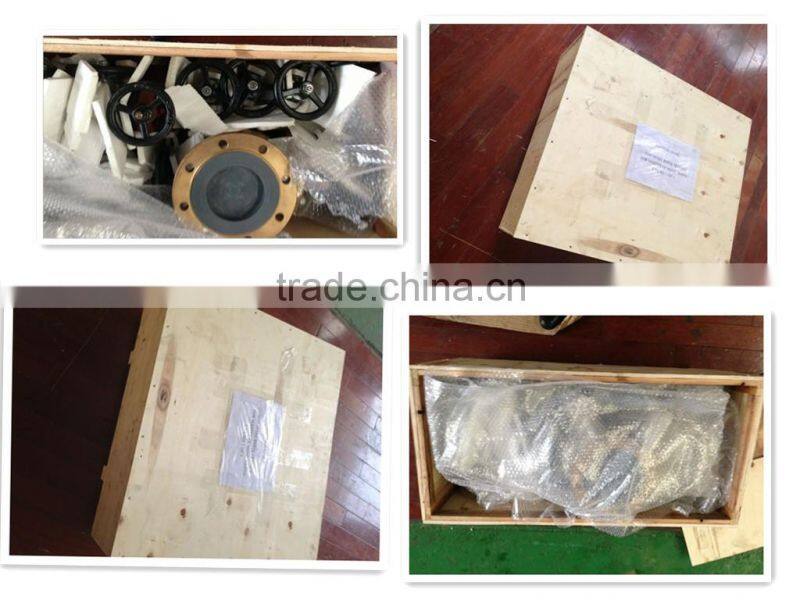

Package

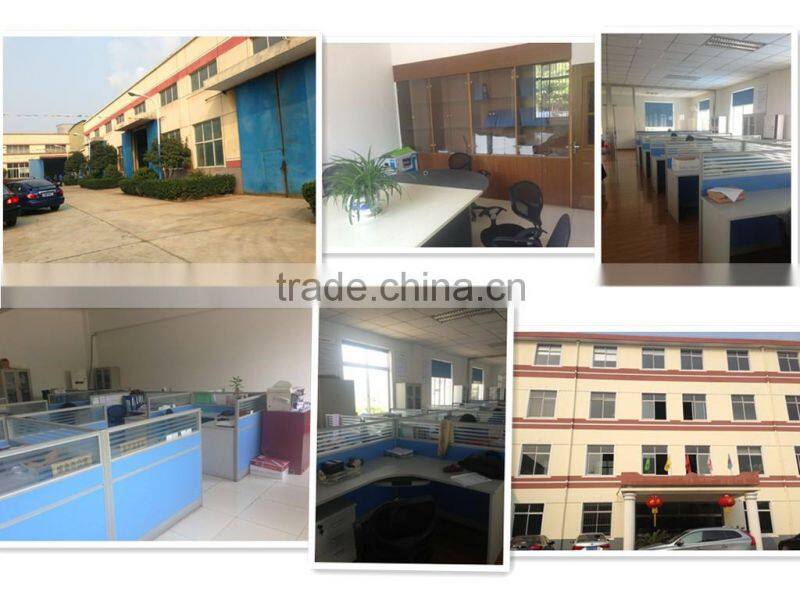

Office
We warmly welcome friends and customers to visit our factory and cooperate with us to achieve further development.
