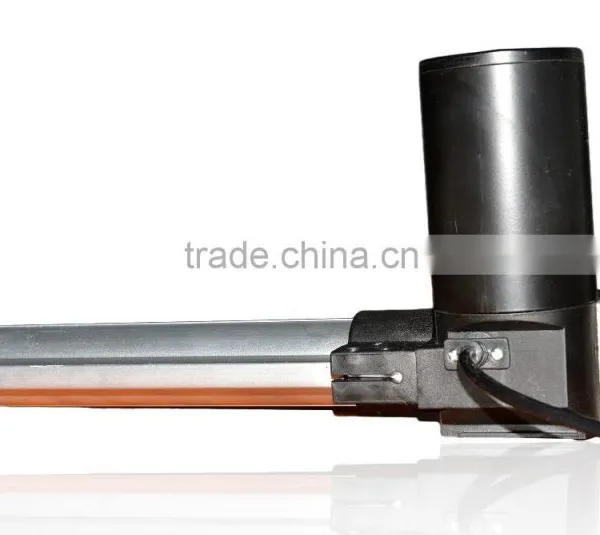

Linear Actuator LHA6006
- Model:LHA6006
- 1 Overview of LuhTech Linear Actuator Range
2 Main features and advantages of LuhTech Linear Actuator
3 Working Applications for LuhTech Linear Actuator
4 How to Select a LuhTech Linear Actuator
5 LuhTech Linear Actuator Data

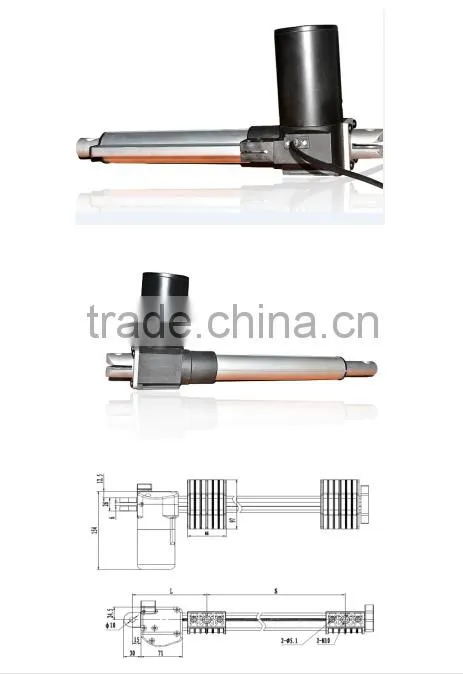

6 LuhTech Linear Actuator Dimensions
7 LuhTech Linear Actuator Accessories and Options - Product Detail
| Test project | Technical requirements |
| Input Voltage | 24VDC |
| Unloaded Speed | 1500-6000RPM |
| Electric Current | 3A |
| Current Rating | 75W |
| Stroke | 450mm |
| Max. Load | 3000N |
| Unload Speed | 12mm/s |
| Working Under Load | MAX.10%(2min.ON/18min.OFF) |
| Noise Level | ≤38dB(A) |
| Operate Life | ≥30000 times |
| IP Protection Level | IP20 |
| Temperature | +10℃——+35℃(special temp. can be choosed) |
| Working Moisture | 30%——75% |
| Weight | ≈0.9Kg |

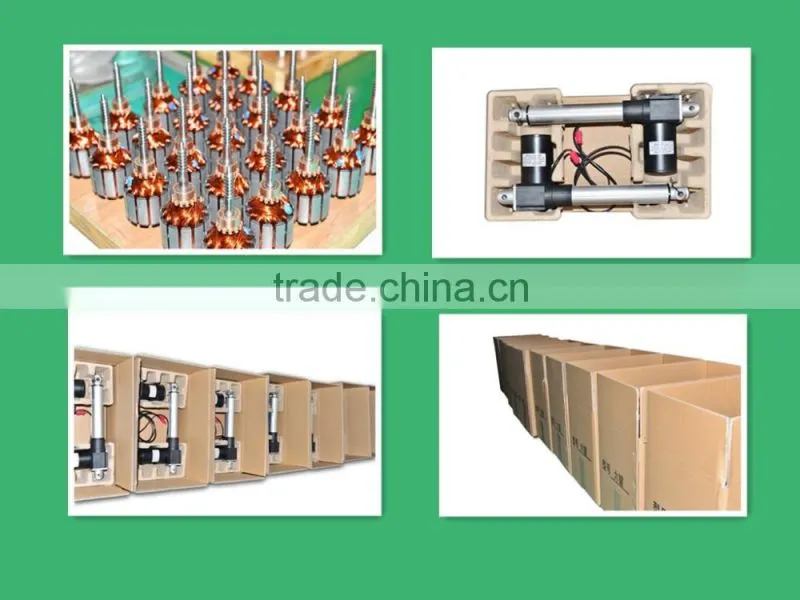

Packaging : Cartoon
Shipping : According to order
Main features and advantages of LuhTech Linear Actuator
Main features of LuhTech Linear Actuator • High ef ciency screw and gearbox • Various of load capacity and different speed range • Precise repeatability of positioning • Long life and low maintenance and running costs • Clean operation and low noise
Advantages of LuhTech Linear Actuator
• Easy installation by hand. • Accurate and repeatable positioning using simpli ed system • Low power consumption and running costs • No oil leaks, contamination or re risk • Low noise system • Higher dynamic capacity, higher speed capability and longer life
Working Applications for LuhTech Linear Actuator
LuhTech Linear Actuator are well proven throughout the world in a wide variety of industries including Furnitures,Medical Care,Gate Opener,Industrial, Vehicle,Solar Tracker,Satellite TV,etc.
LuhTech Linear Actuator Data
General LuhTech Linear Actuator performance summary Load: Up to 4000N Linear Speed: Up to 7000mm/min Stroke: Up to 5000mm Efficiency: 80%(typical)
Usage
ABOUT LUHTECH
LuhTech series linear Actuator products are invested by the Changzhou Dingang Metal Material Co., Ltd. and Produced by Changzhou Tingfeng Electrical Appliance Co., Ltd. As the linear actuator market growing, more and more intelligence and science and technology products produced, A variety of industries and industrial enterprises of linear Actuator is used more and more frequently, but as more and more special requirements for the current linear actuator industry product quality, LuhTech series of linear actuator appeared.
After almost three years of independent researched and development updated, Our linear actuator performance significantly to satisfy the household goods, related civil products and industrial products requirement. Products have been sold and used in more than 100 customers domestic and worldwide such as United States, Canada, Germany, Australia, Britain, the Netherlands and other developed countries, and is accompanied by the development of the market, more developing countries such as India, the Philippines, Indonesia, and other countries have also started to use LucTech electric linear actuator.
Compared with Europe and the United States mature linear actuator brand company, We are at the beginning of the start, but we uphold professional quality, combine with development demands of the quality requirements and take responsible attitude for the clients will get more and more customers satisfaction and recognition.
LuhTech Company warmly welcome friends from worldwide to visit and choose LuhTech electric linear actuator series products, we can give you the choice of creative value.

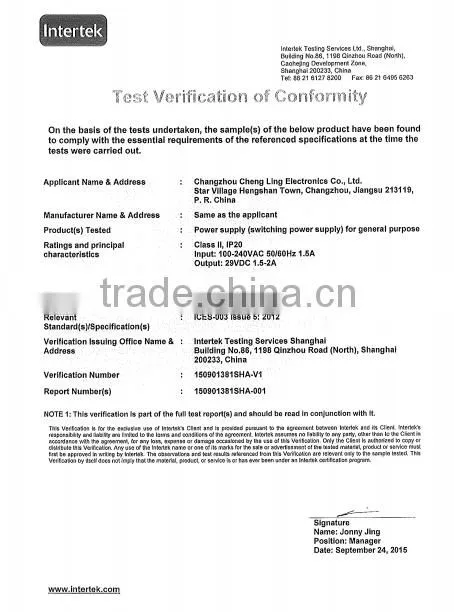

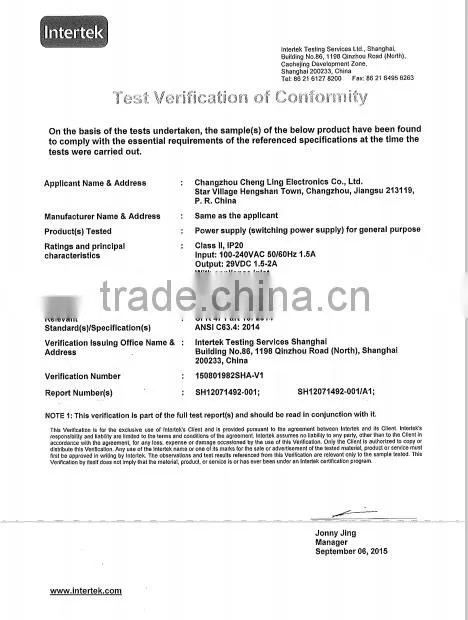

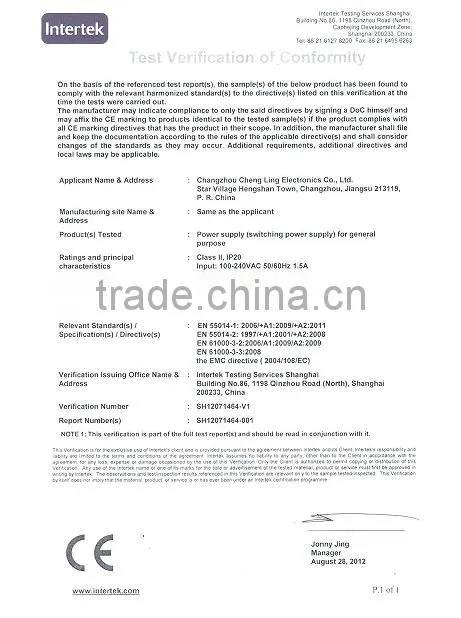

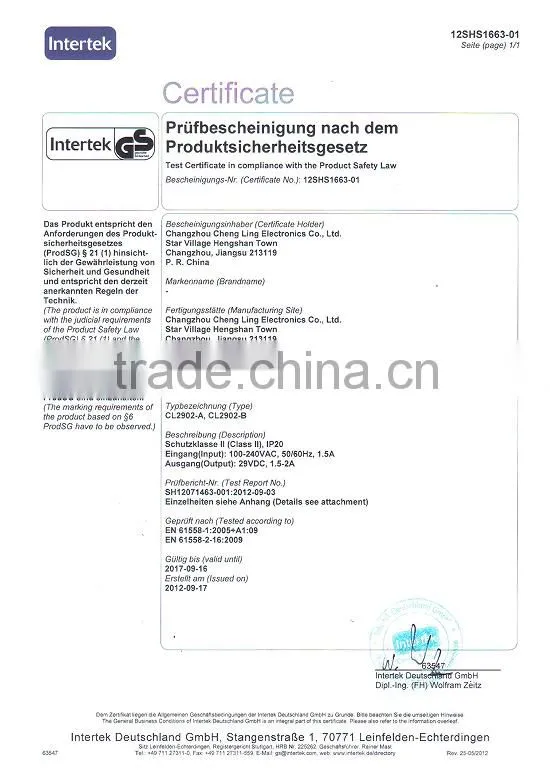

Certificate
