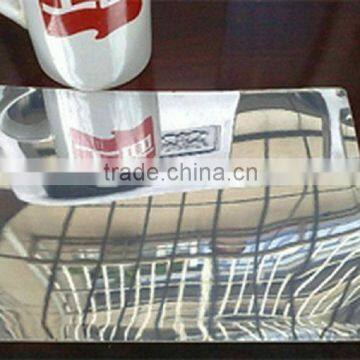

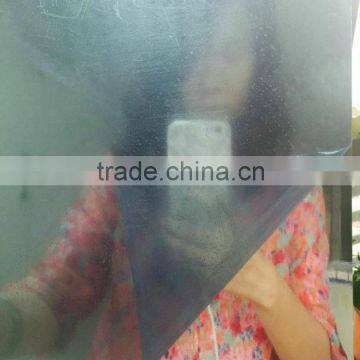

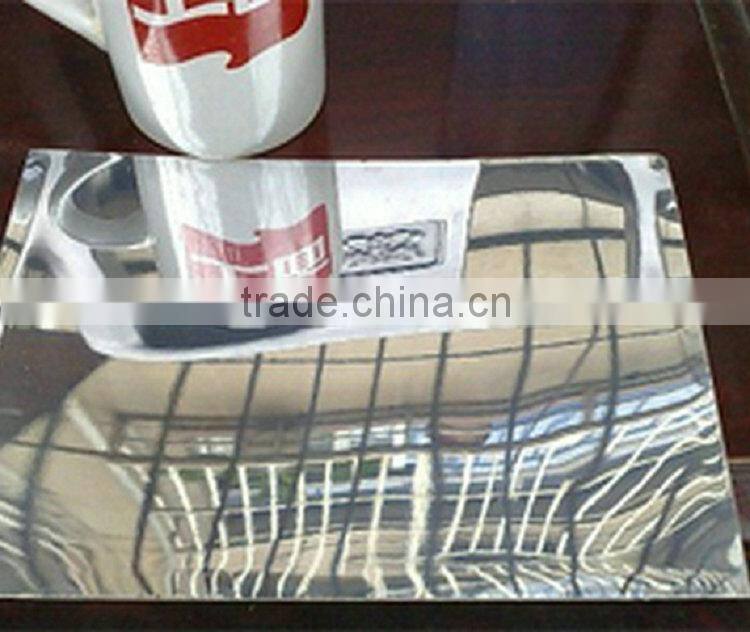

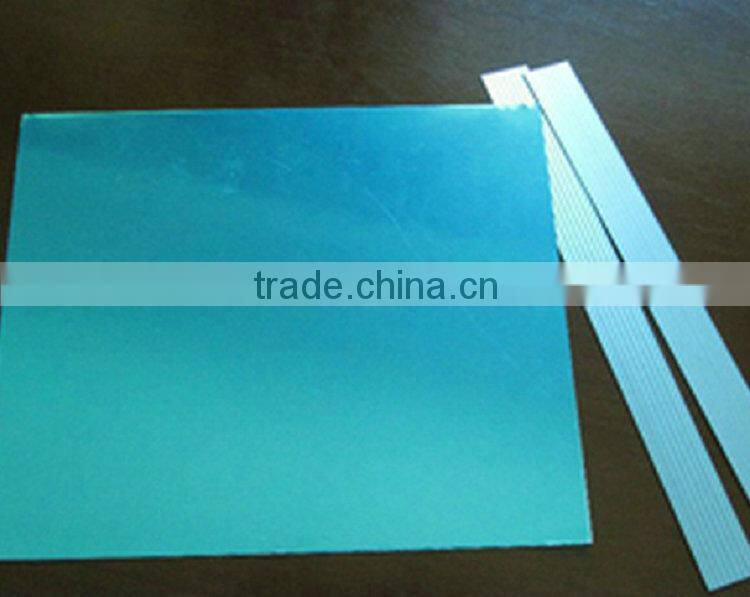

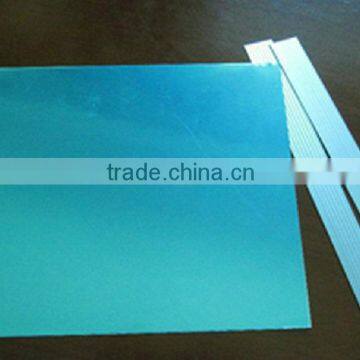

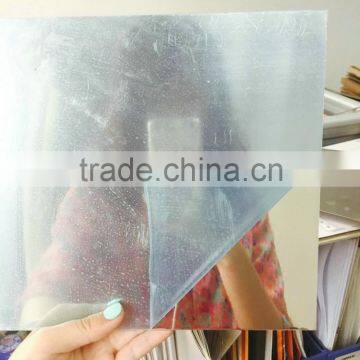

Profile Aluminum mirror finish sheet, we also called it reflective aluminum sheet, The base material is bare aluminum sheet, then we make a special treatment to the surface of aluminum sheet and stick a layer of high quality reflective material, the production are well and widely used in lights and lampshade, grille lamp line.
Specification
1). The surface reflectivity can reach 86%, diffuse reflection les then 12%
2). Usually alloy is 1060
3). The common thickness is 0.17 to 3mm
4). The width can be 1000mm, 1200mm, 1250mm
5). At present we can supply this goods in sheets, coils are also available
6). Strength of adhesive, meet requirements of GB 2794-81-84).
7). Useful life: 10 years indoor, 2 years outdoor under sunburn.
8). Application of mirror aluminum sheet:
I. Lighting: Such as grille lamp, lampshade, grille, diffuser of fluorescent lamp
II. Reflector plate of solar energy
III. Exterior of construction
IV. Interior decoration, such as aluminum buckle plate, ceiling, curtain wall
V. Elevator
VI. Nameplate,
VII. The face panel of household appliance, microwave oven, refrigerator, etc.

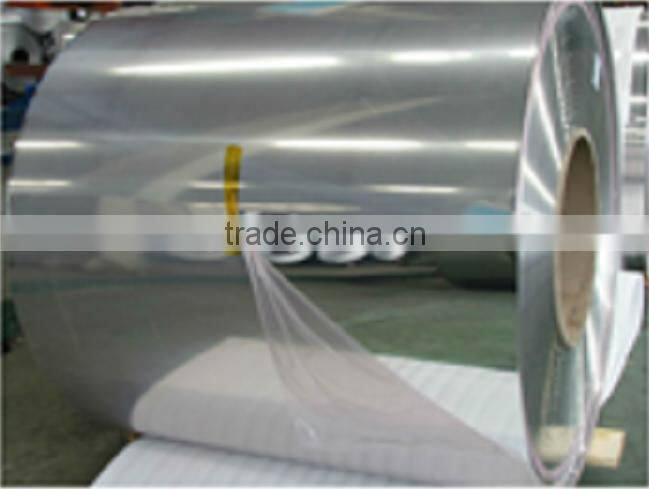

Anodized aluminium coil
|
Alloy % |
T.S Rm/MPa |
Y.S Rp0.2/MPa |
Elongation |
Total Reflectance % |
Diffuse Reflectance % |
Iridescence |
Description |
99.85 |
130 |
115 |
2 |
86 |
≤12 |
1 |
Specular |

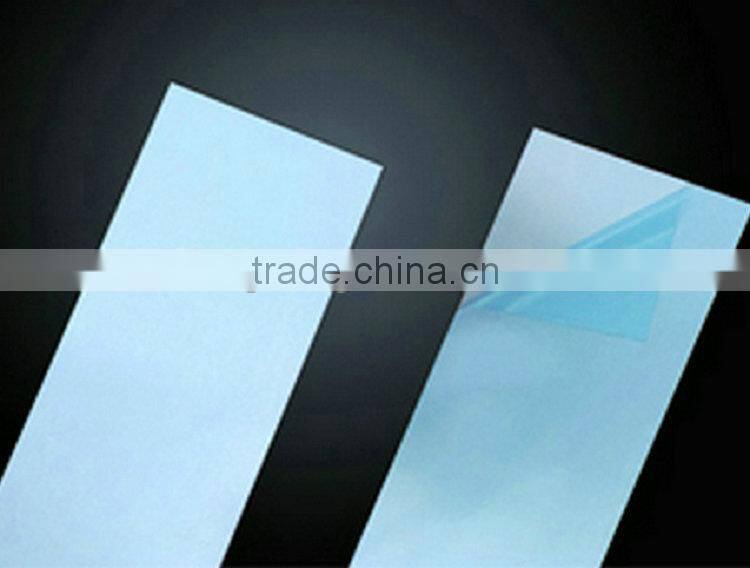

The above is based on the average values of current data available and intended as a guide only. Total reflectance is measured according to DIN5036-3. Gauge tolerance is within 1/2 of AA standard. Protective tapes are recommended for all items.
Iridescence classification
1=low iridescence
2=very low iridescence
3=No Iridescence
Prepainted galvanized steel coil Picture
Transport and packing
GB/T 3199-2007 Wrought aluminum and aluminum alloy products—packing, marking, transporting and storing will be applied.
Changzhou Dingang Metal Material Co., Ltd., located in Changzhou city of Jiangsu province, 200KM from Shanghai. The company is a market leader in manufacturing galvanized steel coil, aluzinc steel coil, pre painted steel coil, aluminum coil and pre painted aluminum coil since 1991.
The company provides a comprehensive range of application in many fields, such as buildings and construction, transportation, appliances, etc. With regards to the management of process, the company runs following the ISO9001:2008 and ISO14001:2004 standards, furthermore, the company is audited supplier which was presented by SGS and Made-in-China, ranking tenth in exporting value in Zhonglou District of Changzhou city in 2010.
Registered capital:15 million U.S. dollar (Equivalent to 95 million Yuan)
Main business: HDGI, HDGL, PPGI, PPGL, Aluminum coil, Pre painted aluminum coil.
Equipment and technology: Introducing Siemens electric control system in production lines.
Productive capacity: One full automatic galvanizing production line with output of 200,000 tons/year; two full automatic aluzinc steel production lines with output 350,000 tons/year, three full automatic color coating production lines with output of 450,000 tons/year; two pre painted aluminum lines with output 150, 00 tons/year.
Focus on developing wide production and improving quality, we are working-on-it all the time, we hope you can visit or contact us, and give us your valuable suggestions.
