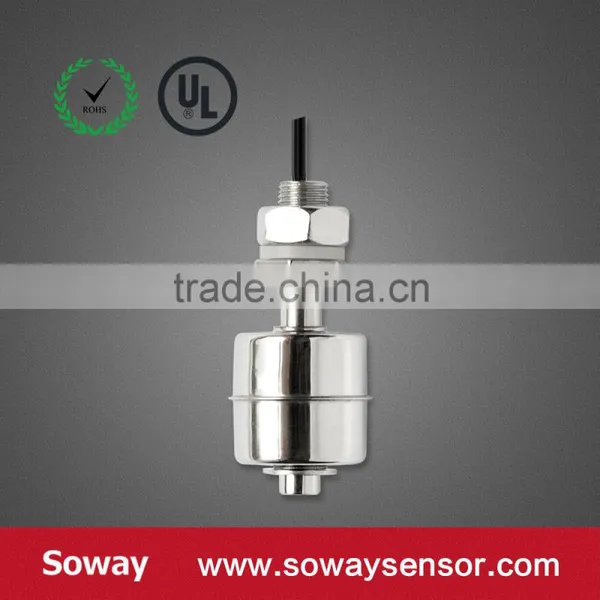

Soway PP Signal/ Multipoint Vertical Type Float Level Switch for Various Tanks

Soway PP Signal/ Multipoint Vertical Type Float Level Switch for Various Tanks photo-1
US$ 1.5 - 10 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SOWAY
Model Number:
SF11X series
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name SOWAY
Model Number SF11X series

 Soway PP signal/ multipoint vertical type float level switch for various tanksSoway PP signal/ multipoint vertical type float level switch for various tanksproduct name:  S.S. Float Level Switch



1.   INTRODUCTION

Magnetic float level switch principle is the float which link to rod equipped with a constant magnetic field, because of the liquid level rise or fall, make the float internal generated magnetic field, thus triggered  the reed switch which inner the rod wroking. Widely used in liquid level measurement, liquid level alarm and level security control field.



2.  FEATURES

2.1 No standby power requirement

2.2 Customer can defined activated range and connection

2.3 Enclosure material: stainless steel 304 or 316

2.4 High stability, high reliability, high consistency



3. APPLICATIONS

Level control, level measurement

Home appliance level detection

Water cooler, coffee machine, water dispenser, humidifier, etc

Container level detection



4. SPECIFICATION

Electrical Parameters

Model

1

2

3

Switched Power(max)

10W

70W

5W

Switched Voltage(max)(DC)

200V

200V

175V

Switched Voltage(max)(AC)

140 V

250V

125V

Switched Current(max)(DC)

500mA

1000mA

400mA

Switched Current(max)(AC)

500mA

1000mA

280mA

Breakdown Voltage(min)

250V DC

580V DC

200V DC

Carry Current(max)

1.0A

2.25A

0.5A

Contact  Resistance (min)

200mΩ

200mΩ

200mΩ

Insulation Resistance (min)

106MΩ

106MΩ

106MΩ

Operating Temperature

-40°C-+80°C

-40°C-+80°C

-40°C-+80°C



 Soway PP signal/ multipoint vertical type float level switch for various tanks

Soway PP signal/ multipoint vertical type float level switch for various tanksSoway PP signal/ multipoint vertical type float level switch for various tanks

Soway PP signal/ multipoint vertical type float level switch for various tanksENTIRE FILM

Q: What payment method your company accepts?

A: We accept T/T (Bank Transfer), L/C, Western Union and Paypal. If any other payment method is more convenient to you, please tell us by including a note while making payment.



Soway PP signal/ multipoint vertical type float level switch for various tanksDIREDT SELLING PRICE

Q: Can you do drop shipping?

A: Yes, we can help you ship the goods to any address you want. We will not put any catalogue or any document with our company info in it if you requested.



Soway PP signal/ multipoint vertical type float level switch for various tanksHIGH QUALITY QUALITY

Q: How long for the production time?

A: Normally in stock, or 7~10days depends on order quantity.



Soway PP signal/ multipoint vertical type float level switch for various tanksPACKING SPECIFICATION

Q: You said we can use our own logo? What's the MOQ if we wanna do this?

A: Yes, 100pcs MOQ



Soway PP signal/ multipoint vertical type float level switch for various tanksGOOD FAITH SERVICE

Q:How to contact you guys?

A:Skype ID:jack-soway B:Contact us by e-mail

 Soway PP signal/ multipoint vertical type float level switch for various tanks
