Specifications
1.Linear displacement transducer2.High pressure resistance
3.OEM
4.Lowest price
Linear displacement transducer
Introduction:
LVDT is widely applied in Aerospace, Machinery, Construction, Textile, Railway way,Coal mine, Metallurgy, Plastic, Chemical industry and Academic research,which is used to measure the distance, vibration,thickness, expansion and so on.
We also provide digital output.The integrated circuit is hermetically sealed in SUS 304 stainless steel sleeve, which can ensure the transducers works accurately and reliably in hostile environment such as damp and dust, corrosion, etc.
Specification:
1. High pressure resistance,withstand 35MPa.
2. 4-wire switching signal, 6-wire AC signal.
3. 2-wire: 4-20mA output; 3-wire:voltage output..
4. AC output,wide range motivated voltage (AC output)
5. Power supply 9 - 28V DC, power consumption <2W.
6. Measuring range(2.5 - 35mm).
7. Linearity<1%.
8. Protection grade can reach IP67.
9 Highly integrated,small size.

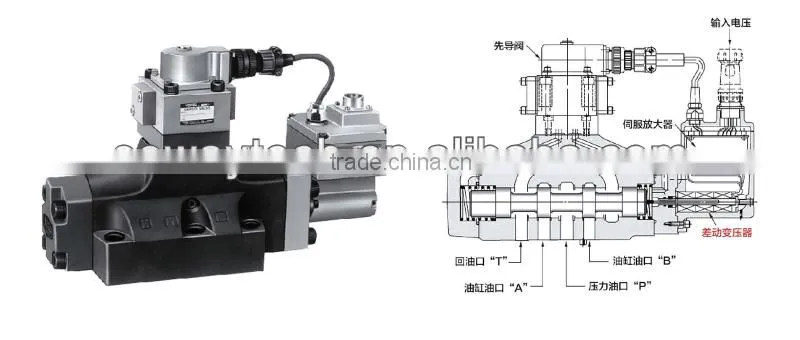

Application of LVDT in proportional servo valves

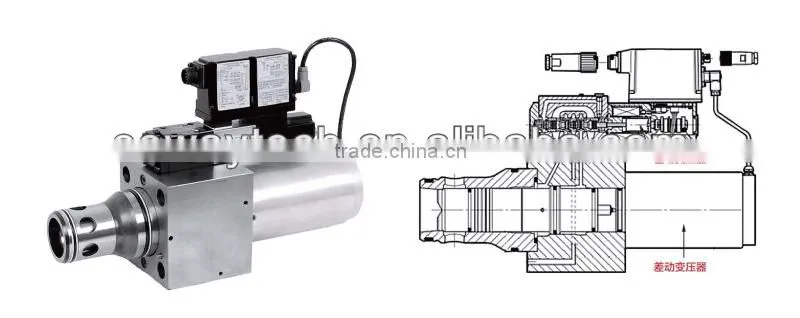

Application of LVDT in cartridge valve:
Stardand exporting packing
More LVDT product pictures:
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Magnetostrictive
Introduction :
The magnetostrictive position sensor bases on the magnetostrictive sensing principle that has high precision.Non-contact operation can ensures it works long and adapts well,High accuracy,high stability, high reliability and high repeatability .Variety of output signals,which include the current, voltage,SSI, Modbus, Profibus etc.And can meet any high industrial applications such as petroleum, chemical industry, steel and iron, port, machinery, food and so on. It is the best choice for high accuracy position control.
Features:
Linear, Absolute Measurement
LEDs For Sensor Diagnostics
Non-Contact Sensing Technology
Non-Linearity Less Than 0.02%
Repeatability Within 0.002%
Variety of output signals:current,voltage,SSI,modbus
Application:
Manufacturing
Process
Mobile Hydraulic
Medical
Power Generation
Factory show:
