Metal plate ( Y-01 )
Parameter of thick steel cliches/plates
Clichés Steel Material Comparison Chart | |||
Steel Type |
|
Scraping Resistance |
Reclaim Ability |
SKD11(9Cr12Mov) |
|
1000000 times or more |
5 times |
Clichés Production Parameters | |||
Heat Treatment Hardness |
HRC 64+/-1 |
||
|
Cliché Surface Finish Roughness |
Black Surface---Ra0.1μm Bright Surface---Ra0.01μm Mirror Surface---Ra0.001μm |
||
Cliché Surface Parallel |
For Open Type Pad Printers---500:0.05mm For Cup Type Pad Printers---500:0.005mm |
||
|
Cliché Machining Thickness
|
Common Thickness:9.9-10.1mm Special thickness:8mm,9mm,12mm,13mm,15mm Other thickness can be customized |
||
|
Cliché Plate Common Size
|
70*140mm,75*100mm,75*150mm,75*200mm… 100*100mm,100*150mm,100*200mm,100*215mm,100*250mm.. 150*150mm,150*300mm,150*350mm… 200*200mm,200*500mm,200*550mm… Other size can be customized |
||
Cliché Machining Size |
Any special size clichés can be made to order |
||
- What plate material are you ordering?
- What size (width by length and the thickness) do you need?
- How many plates do you want to order?
- Do you want us to etch the plates for you?
- Do/If you etch your own plates, do you need any more supplies?
Introduction of Thick Steel Pad Printing Plate
Traditionally the plates are generally of thick steel material which is made by a very special process of hardening and etched by chemical milling process.These plates are sized,ground,toughened,lapped,polished and etched.The whole process cycle take about 25 days.Hence standard sizes are mostly in stock and special cliches/plates need time.
Selection of cliches or plates
If you need to make cliches for long term production,suggestion:Thick steel cliches/plates.
If you only need a few thousand prints,suggestion:Thin steel cliches/plates.
Brief introduction
Hengxin printing equipment company is a manufacture & selling high qulity thick steel palte used for ink cup and open ink well pad printer.Our price is competitive and 80% product is exported to the world.Our Customers are in USA,Germany,Brazil,Mexico,Korea,India,Pakistan,South Asia,etc.
We hope to establish good and long term business relationship with you for our mutual benefit. We assure will provide the best quality and best service to you.

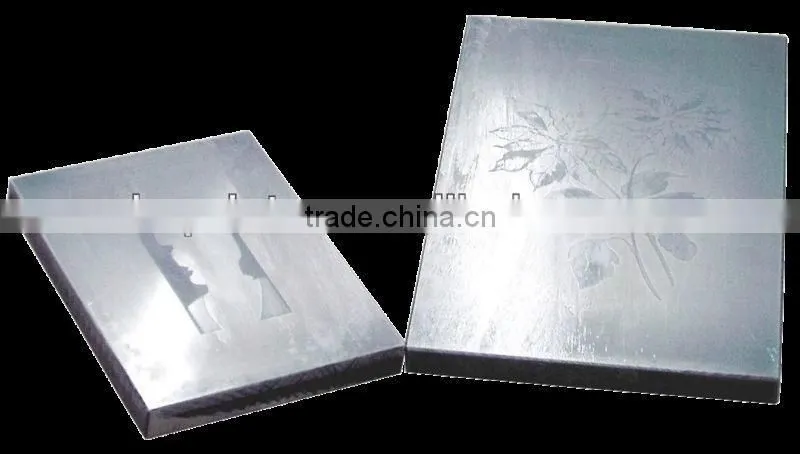

Product real photo:

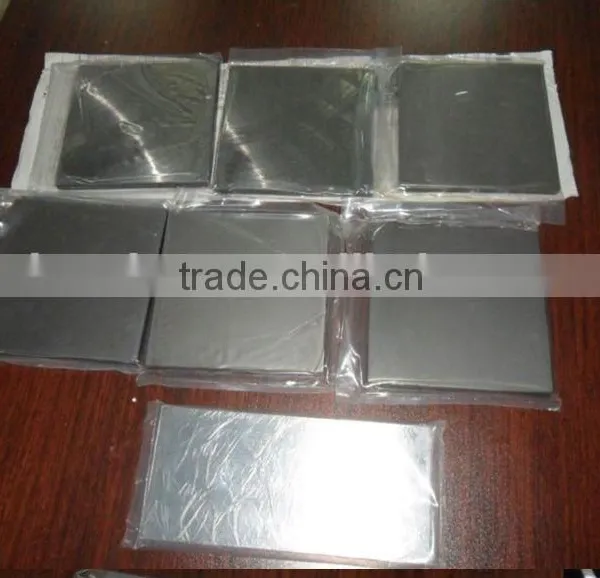

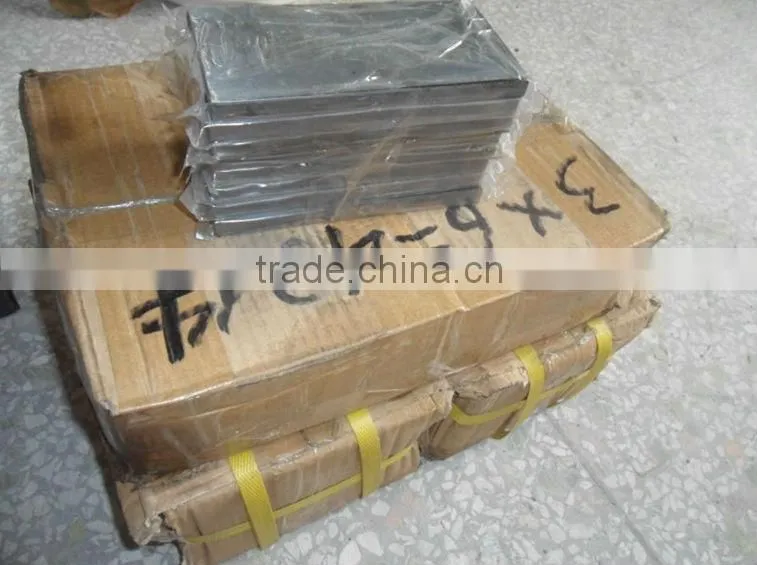

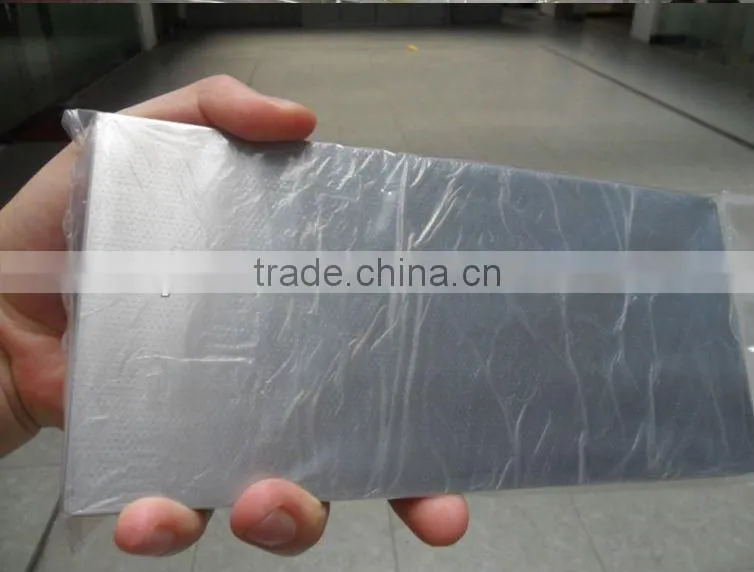

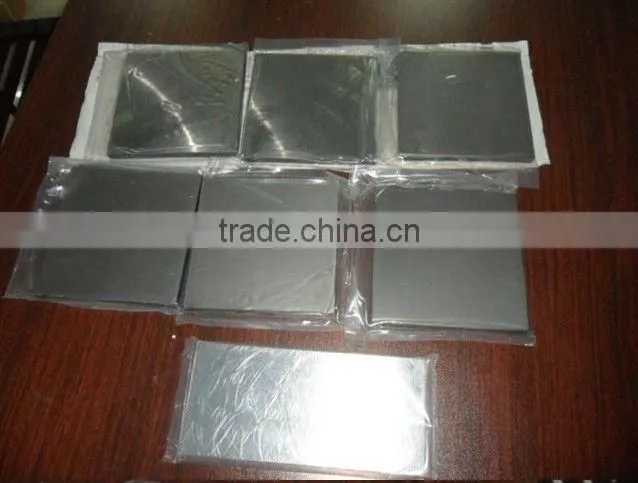

Transparent plastic film, outer carton case / wooden case
