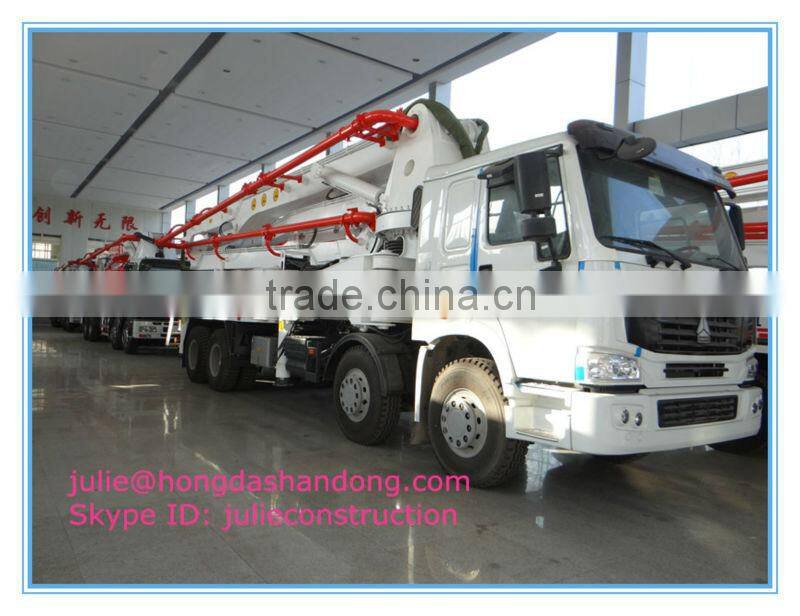

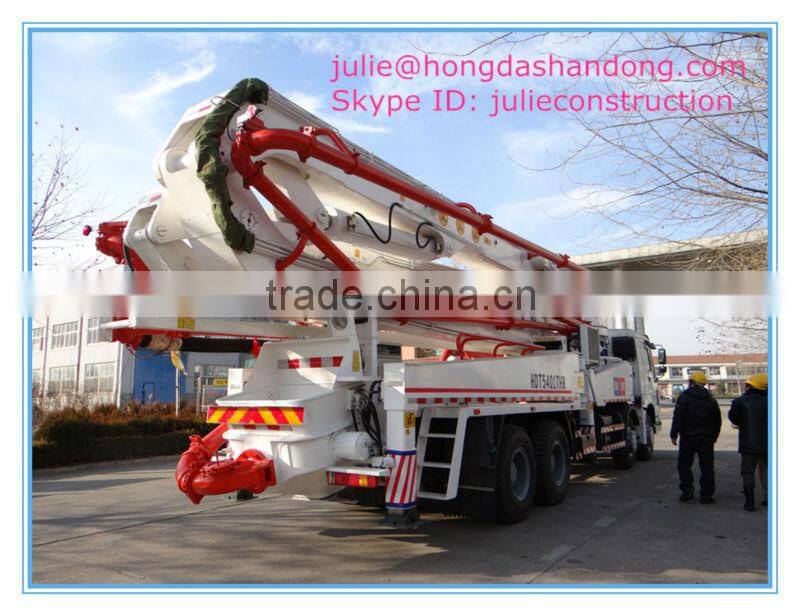

SHANDONG HONGDA Truck Mounted Concrete Pump Boom Length 45m HOWO Chassis
- Qingdao
 - T/T Credit Card

You May Like
-


HONGDA Truck Mounted Concrete Pump Boom Length 42m HOWO
 -


HIGH QUALITY Truck Mounted Concrete Pump 39m HOWO Chassis
 -


Shandong Hongda 2t Construction Elevator Lift Hosit SC200 / 200
 -


SHANDONG HONGDA TIELISHI Construction Elevator (Frequency Conversion)
 -


SC100 One Cage HONGDA Construction Elevator
 -


SHANDONG HONGDA TIELISHI Construction Elevator SC100/100 Single Cage

Product Details
| Condition | New | Power Type | Diesel | |
| Place of Origin | Shandong, China | Brand Name | TIELISHI | |
| Model Number | 45m HOWO | Weight | 40000KG | |
| Dimension(L*W*H) | 13990MM*2500MM*4000MM | Certification | ISO CCC | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Truck mounted concrete pump 52m  | Unit  | Parameters  | |
HDT5401THB-45/5  | |||
Main technical parameters in working condition  | Theoretical Productivity  | m3/h  | 150  |
Pumping Capacity Index  | MPa.* m3/h  | 586  | |
Max. Concrete Pressure  | Mpa  | 8.5  | |
Hopper Capacity  | L  | 700  | |
Feeding Height  | mm  | 1400  | |
Model of Distributing Valve  |
  | S pipe valve  | |
Max. operation Radius  | m  | 40.7  | |
Max. operation Height  | m  | 44.7  | |
Max. operation Depth  | m  | 31.3  | |
open height of aggregate carrying pipe  | mm  | 8495  | |
Distance between Front Landing Legs  | mm  | 9550  | |
Distance between Rear Landing Legs  | mm  | 9550  | |
Distance between Front and Rear Landing Legs  | mm  | 9190  | |
Diameter of Delivery Pipe  | mm  | 125  | |
Length of rear hose pipe  | m  | 3  | |
Rotary Range of Distributing Boom  | 365°  | ||
Number of Boom Sections  | 5  | ||
Rotary Angle of Each Boom Section  | 90/180/ 180/180/270°  | ||
Close-control Distance  | m  | 33  | |
Remote-control Distance  | m  | 200  | |
Main technical parameters in  driving condition  | Max. Traveling Speed  | km/h  | 80  |
Min. Turning Radius  | mm  | 12500  | |
Brake Distance  | m  | 10  | |
Approach Angle  | 16°  | ||
Departure Angle  | 11°  | ||

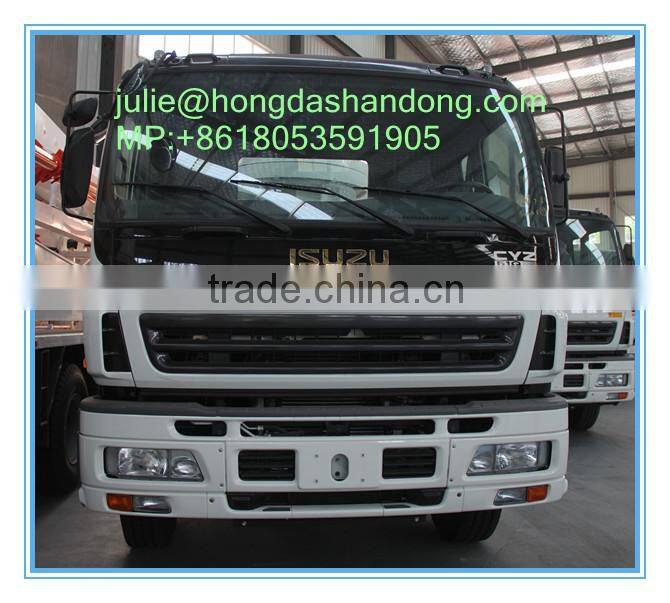

Chassis Model  | ISUZU  CYH51Y  | ||
Wheel Base between the First and the Second Axle  | mm  | 1800  | |
Wheel Base between the Second and the Third Axle  | mm  | 5000  | |
Wheel Base between the Third and the Fourth Axle  | mm  | 1350 | |
Front Tread  | mm  | 2022  | |
Rear Tread  | mm  | 1830  | |
Max. Engine Power  | kw  | 275 (2200r/min)  | |
Max Engine Torque  | N.m  | 1500 (1100-1600r/min)  | |
Overall Dimension  (length×width×height)  | mm  | 13300*2500*4000  | |
Full-load Total Weight  | kg  | 40000  | |
