Energy Saving Pigment Powder Milling Machine

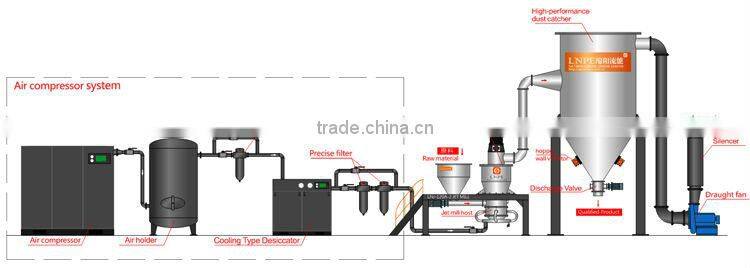

Flow Sheet
Features
1. Steep Particle size distribution without oversized particles;
2. Grinding by inter-particle collision of materials resulting in reduced wear and no iron contamination;
3. Effective for grinding heat-sensitive and low melting point materials due to airflow's low temperature caused by its sharp expansion in this process;
4. Processing several kinds of materials at one time;
5. Multi-use of one machine due to its alterable and compact structure;
6. Omniseal negative pressure operation, without dust pollution;
7. Easy handling and low noise emission (≤85dBA).
Model |
Air Flow (m3/min) |
Max Feed Size (mm) |
Product Size (d97μm) |
Capacity (kg/h) |
Power (kw) |
LNJ-6A |
1m3/min |
≤3mm |
2-90μm |
0.2-5kg/h |
8.5kw |
LNJ-18A |
3m3/min |
≤3mm |
2-90μm |
5-50kg/h |
27.5kw |
LNJ-36A |
6m3/min |
≤3mm |
2-90μm |
6-200kg/h |
38.5-48kw |
LNJ-120A |
20m3/min |
≤3mm |
2-90μm |
40-800kg/h |
130-150kw |
LNJ-240A |
40m3/min |
≤3mm |
2-90μm |
50-1000kg/h |
257-300kw |
Applications
[High purity, super-hard materials]
Typical materials: fluorescent powder, titanium dioxide, silicon, aluminum, copper and other high purity pigment
[Fine chemicals, ceramics, abrasive and refractory]
Typical materials: garnet, silicon carbide, corundum, cerium oxide, alumina, boron carbide, tungsten carbide and emery, etc.
[Food, pharmaceuticals and health products]
Typical materials: pollen, hawthorn, pearl powder, stomach medicine, Nimodipine, antibiotic, contrast agent, glossy ganoderma, Chinese galls, Fallopia multiflora, etc.
[Magnetic powder, mobile phone electromagnetic powder, copier toner and electronic materials]
Typical materials: lead acid battery, Ni-Cd battery, Ni-Mn battery, ferrite, Trimanganese tetroxide, manganese dioxide, LiCoO2, lithium manganese oxide, carbon, etc.
[Non-metallic mineral and powder metallurgy]
Typical materials: quartz, barite, kaolinite, triple superphosphate, talc, mica, graphite, wollastonite, etc.
[Reflective material, pigment, dyestuff and powder coatings]
Typical materials: iron oxide, titanium dioxide, glass beads, etc.
[Pesticide, fodders and biomaterial]
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Personalized design to solve the affairs on grinding and classification.
