3.5" Color LCD 2.4Ghz Wireless Video Camera Night Vision 2X zoom Baby Monitor

Brief Description

This Digital Baby Monitor set composes of a camera and a LCD receiver to allow you to keep an eye on your baby in your home. Unlike with traditional analogue systems, this digital baby monitor set can dynamically and automatically select the best frequency for visual and audio transmission for a longer distance. You can have good quality of visual and audio without interference including home Wi-Fi.

You can remotely control the camera to 2X zoom and pan and tilt (270 degree horizontally & 120 degree vertically) by the receiver to see different angles inside the baby room. Both the camera and receiver have built-in microphone & speaker which allows 2-way communication and VOX function. Moreover, one receiver can support up to 4 cameras in 4 channels and parents can monitor their baby in different locations inside a big house or several babies in different rooms.

There are also other useful and convenient features with this baby monitor. The receiver has 3.5 inch large and clear TFT LCD (320 x 240) with 25 fps frame rate. The camera equips 9pcs of LED for IR night vision up to 5m and temperature sensor to give temperature (degree C/F) of baby room on the receiver. Besides AC power, both the receiver and camera can be powered by built-in rechargeable battery for easy relocation.

Features

• -Real-time high quality visual and audio monitoring
• Built-in battery design for Monitor and for Camera.
• -Maximum signal transmission up to 50m without blocking
• -Digital pairing between camera and receiver
• -1 receiver supports up to 4 cameras in 4 channels Max
• -Interference free including home Wi-Fi
• -3.5"large and clear TFT LCD with 320 x 240 resolution
• -Pan and tilt camera (270 degree horizontally & 120 degree vertically)
• -2X digital zoom
• -Built-in microphone and speaker in both camera and receiver for 2-way intercom
• -Highly sensitive microphone
• -Voice Control (VOX) Function
• -Temperature monitoring (degree C/F)
• -Infrared night vision
• -Adjustable brightness and volume in receiver
• -AV output
• -Signal strength indicator
• -Dual power source for both camera and receiver
• -Optional additional camera with AC adapter (US $59.9 / GBP £38.9 / EUR €45.90 / AU $64.9 Only)

Specifications

General Specifications

• -Transmission Frequency: 2400 ~ 2480 MHz

• -Transmission Power: 17 dBm
• -Operating Frequency: 2410 MHz

• -Unobstructed Effective Range: 250m (820 feet)
• -Spread Spectrum: FHSS
• -Operation Temperature: 0 ~ 60 degree
• -Storage Temperature: 25 degree
• -Operating Humidity: 20 ~ 80 % R.H.

Camera

• -Imaging Sensor Type: 1/4 CMOS
• -Minimum Illumination: 1.5 Lux
• -Night Vision Distance: 3 ~ 5 m (9.8 ~ 16.4 feet)
• -VOX: >10m
• -View Angle: 60 degree
• -Band Width: 4 MHz
• -Frame Rate: 25 fps
• -Sound Detection Sensitivity: > 60 dBA
• working time :2 hours
• -Consumption Current (Max): 220mA + 15mA
• -Power Supply: 5V DC by AC Adapter (100 ~ 240V)
• -Dimension: approx. 98 x 89 x 85 mm (3.86 x 3.50 x 3.35 inch)
• -Weight: approx. 205 g (7.23 oz)

Receiver

• -LCD Screen: 3.5 inch TFT LCD
• -Effective Pixels (R.G.B): 320 x 240
• -Receiving Sensitivity: -85 dBm
• -Consumption Current: 200 mA + 15mA
• -Power Supply: 5V DC by AC Adapter (100 ~ 240V)
• monitor working time: 8 hours
• -Dimension: approx. 125 x 90 x 23 mm (4.92 x 3.54 x 0.91 inch)
• -Weight: approx. 155 g (5.47 oz)

One Set Included

• -1 x 2.4GHz Wireless PTZ Camera

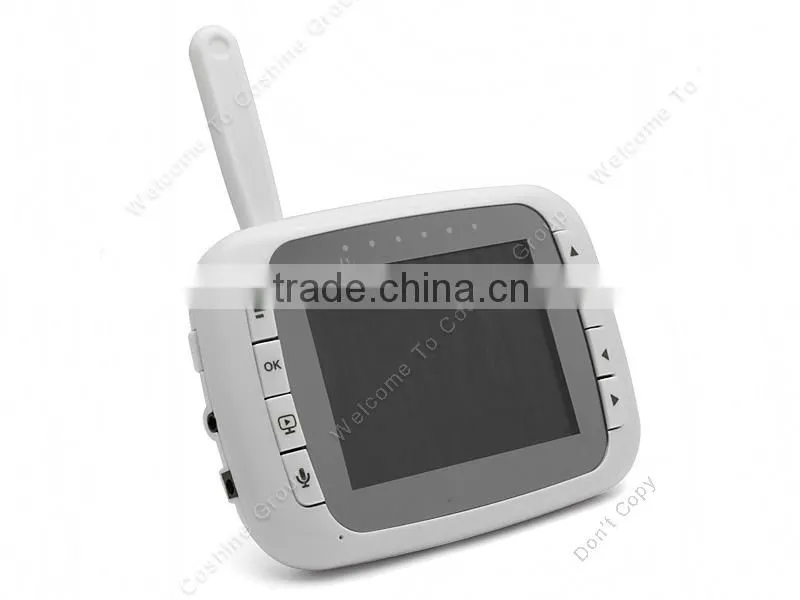

• -1 x 3.5" Wireless Receiver
• -1 x Power Adapter for Camera (100 ~ 240V)
• -1 x Power Adapter for Receiver (100 ~ 240V)
• -1 x AV Cable
• -1 x Instruction Manual
• -Color Retailed Box Package
