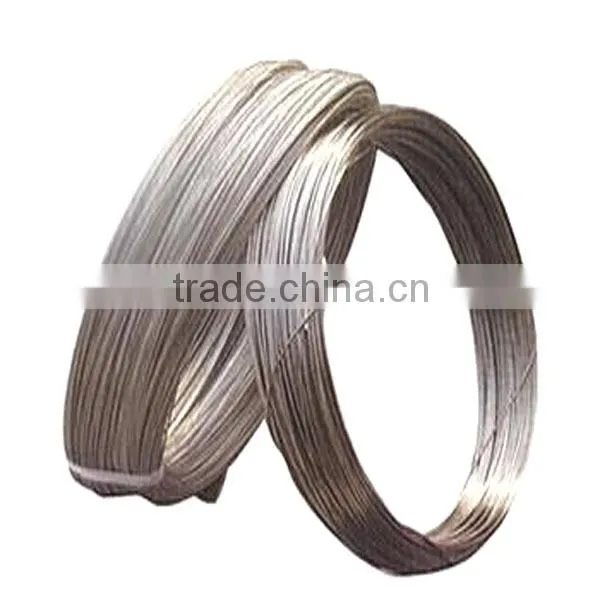

Gr1 Gr2 High Quality Pure Titanium Wire for Sale

Name: Gr1 Gr2 High Quality Pure Titanium Wire for Sale
Brand: Jinyang
SKU: 129895395
Availability: InStock

Negotiable MOQ: 50 Kilograms (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Liaoning, China

Brand Name:

Jinyang

Model Number:

GR1,GR2,GR3,GR4,GR6,GR7,GR8.GR12

Shenyang Tianzhong Alloy Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian port or other Chinese ports

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Liaoning, China

Brand Name Jinyang

Model Number GR1,GR2,GR3,GR4,GR6,GR7,GR8.GR12

Application industrial, medical or ordinary use

Wire Gauge 0.1mm to 7.0mm

Grade pure titanium

Ti (Min) 99.8%

Specifications

1. Product name:gr1 gr2 high quality pure titanium wire for sale
2. Usage:industrial, medical or ordinary use

Product info

Product name: gr1 gr2 high quality pure titanium wire for sale

Other name: gr2 pure titanium wire;pure titanium wire for sale; high quality pure titanium wire

Product specification

Grade Status Specifications	Grade	Diameter/mm	Supply status
	Gr1,Gr2,Gr3,Gr4 Gr6,Gr7,Gr12,TA28 TC1,TC2,TC3	≥ 0.1~7.0	Heat processing(R) Cold processing(Y) Annealed(M)
	TA1-1,TC4EL1 Gr5(Ti-6AL-4V)	1.0~7.0
Material	Pure titanium or alloy titanium.
Standard	ASTM B348,ASME SB348,ASTM F67,ASTM F136,ASTM B863, ASTM 2965,ASTM 3623,GB/T 2965-2007,GB/T 3623-2007
Features	Low density,high strength,excellent corrosion resistance,good thermal stability and conductivity.
Applications	As electrode materials,fasteners,welding materials,medical field, surgical implants,chemical industry, structural parts,glasses, etc.
Shape	Coiled or straight
Quality and test	All of the products are detected by ultrasound making sure that no defects inside the products. Besides , chemical composition, mechanical properties and high-powered organization are also strictly controlled,ensuring our clients get the best products.

Product diameter tolerance

Diameter/mm	0.1~0.2	>0.2~0.5	>0.5~1.0	>1.0~2.0	~2.0~4.0	>4.0~7.0
Tolerance/mm	-0.025	-0.04	-0.06	-0.08	-0.10	-0.14
Notes:Other specification and tolerance will be available.

Product mechanical properties

Grade	Diameter/mm	Mechanical properties in room temperature
Grade	Diameter/mm	Tensile strength Rm/Mpa	Break Elongation A/%
Gr1	4.0~7.0	≥240	≥24
Gr2		≥ 400	≥20
Gr3		≥ 500	≥18
Gr4		≥ 580	≥15
Gr1	0.1~<4.0	≥ 240	≥15
Gr2		≥400	≥12
Gr3		≥500	≥10
Gr4		≥580	≥8
TA1-1	1.0~7.0	295~470	≥30
TC4EL1	1.0~7.0	≥860	≥10^a
TC4	1.0~2.0	≥925	≥8
TC4	>=2.0~7.0	≥895	≥10
