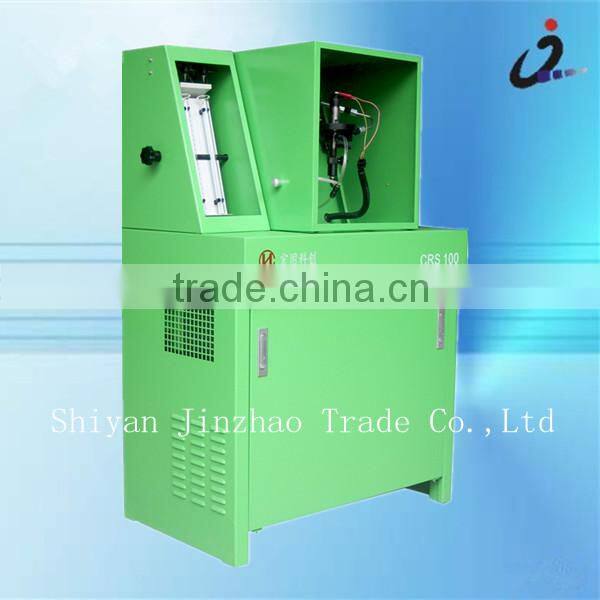

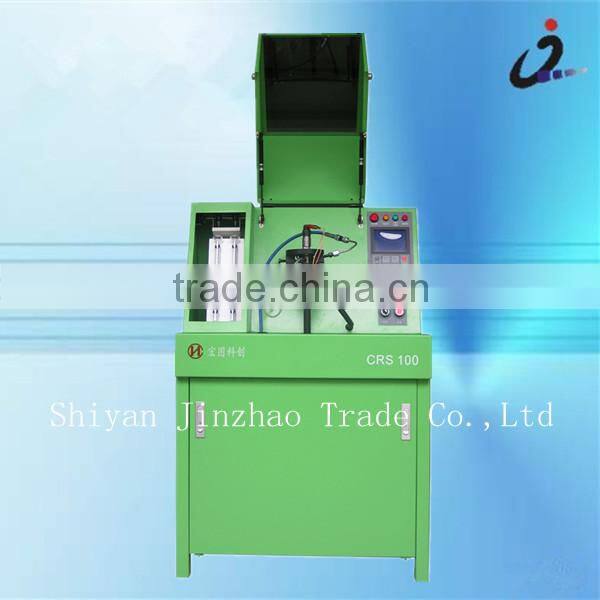

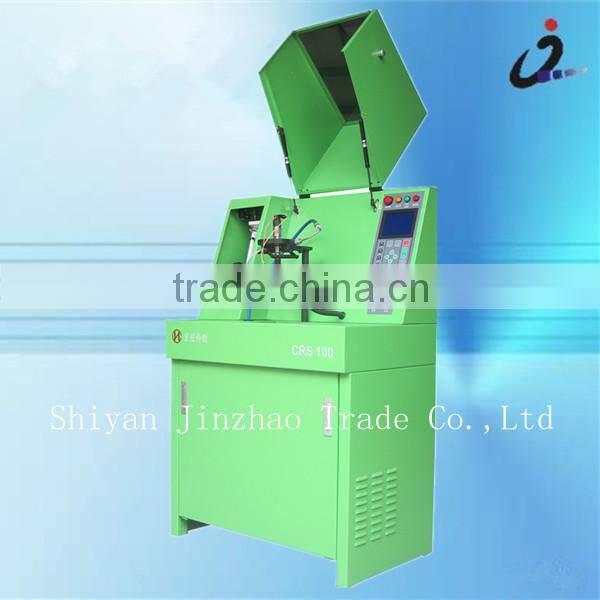

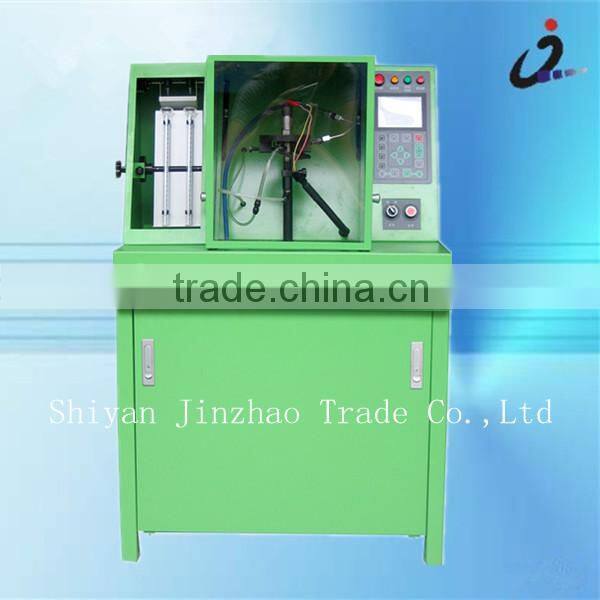

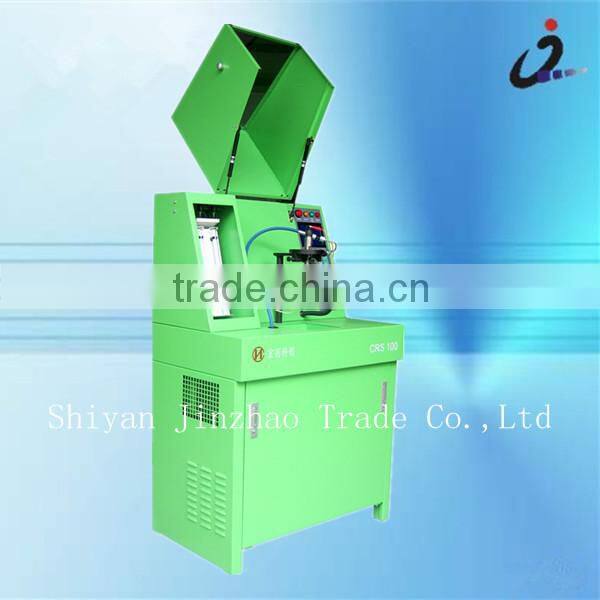

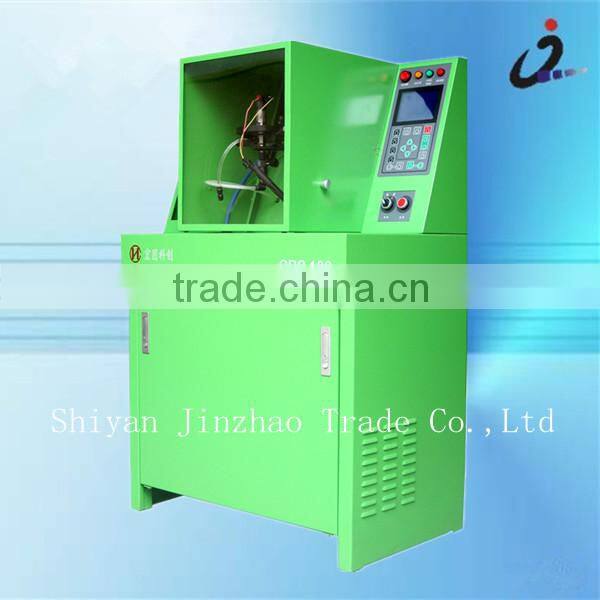

CRS100 Diesel Fuel Injection Pump Test Bench

Name: CRS100 Diesel Fuel Injection Pump Test Bench
Brand: Hongtu
SKU: 129887071
Availability: InStock

US$ 1,000 - 10,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Beijing, China

Brand Name:

Hongtu

Model Number:

CRS100

Shiyan Jinzhao Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Beijing, China

Brand Name Hongtu

Model Number CRS100

Power Electronic

Usage Auto Testing Machine

Specifications

Fuel Injection Pump Test Bench
1. High test precision
2. Output Power:4.6KW
3. Brand: Hongtu
4. Model:CRS100

CRS100 Diesel Fuel Injection Pump Test Bench

Characteristics:

1. Small size, easy to move and use, economical and practical

2. Built-in the standard data of 460 models of common rail injectors including Bosch, Delphi, Denso.

3. With the clamping accessories used for different injectors

4. Man-machine conversation is available

5. Injector solenoid valve power supply 12V/24V automatic conversion and automatic protection

6. Equipment working status alarm prompt

7. Equipped with heating and cooling system

Functions:

Specification:

Test Bench CRS100
1	Power Supply	AC220V AC380V 50Hz
2	Rated Power	4.6KW
3	Rotation Speed	1000RPM
4	Feed Pressure	0--200Mpa
5	Measurement Precision	±2%
6	Rail Pressure Control Precision	±2Mpa
7	Volume of Oil Tank	20L
8	Overall Dimensions	820×520×1320(mm)
9	Net Weight	About 200Kg
