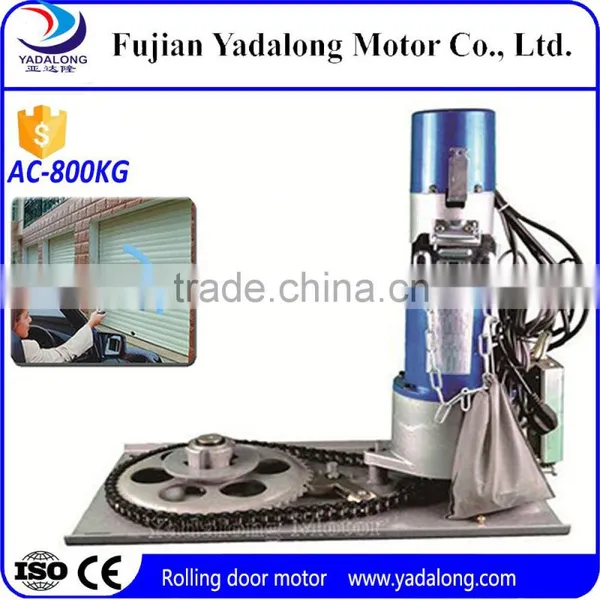

JD-800-1P Gear ac rolling door motor/side rolling door motor
YADALONG JD and JH series rolling shutter door side motors used to shopping centers, warehouses, garages, theaters, hotels, banks, factories and other buildings, rolling shutter door’s opening and closing, with electric and manual function.
Roller shutter door’s opening and closing operation are power-driven, the up and down stroke was automatic controlled by limit switch. Accurate and reliable positioning, opening and closing security.
Equipped with a motor winding overheating protection device, it will automatically cut off power supply when the temperature reaches 110 °,so to protect the motors from being burned,and the device can start again when the temperature dropped to 70 ° (after about 8min).
Features of rolling shutter door motor.
1. Our rolling door motor with good design, advance structure, large starting torque, short-time duty.
2. Easy installation, legerity design, stable operation, low noise, small power consumption
3. Low noise, Small power wastage, little vibration.
4. Remote control system
5. Limit switch unit enables precise adjustment of door in both up and down positions.
6. Electric and manual operation
Technology Parameter :
| FUJIAN YADALONG MOTOR CO.,LTD | |||||||
| Model | Rated Power (w) |
Lifting force (kg.f) |
Rated load | Max lifting height(m) | Type of chain | Motor Weight (kg) | |
| Output Torque (N.m) | Output speed (r/min) | ||||||
| AC single-phase rolling door motor 220V 50-60HZ | |||||||
| JD-300-1P | 250 | 300 | 168 | 5.4 | 6 | 10A | 12 |
| JD-500-1P | 300 | 500 | 343 | 5.2 | 6 | 10A | 13 |
| JD-600-1P | 370 | 600 | 412 | 5.3 | 6 | 10A | 13 |
| JD-800-1P | 550 | 800 | 647 | 4.4 | 9 | 10A | 14 |
| JD-1000-1P | 550 | 1000 | 809 | 4.4 | 9 | 10A | 15 |
| AC three-phase rolling door motor 380V 50-60HZ | |||||||
| JD-600-3P | 250 | 600 | 412 | 5.3 | 6 | 10A | 13 |
| JD-800-3P | 300 | 800 | 647 | 4.6 | 9 | 10A | 14 |
| JD-1000-3P | 550 | 1000 | 809 | 4.4 | 9 | 12A | 14 |
| JD-1300-3P | 600 | 1300 | 1401 | 4.4 | 9 | 12A | 14 |
| JD-1500-3P | 800 | 1500 | 1617 | 5.2 | 9 | 12A | 15 |
| DC rolling door motor 220V DC 24V 50-60HZ | |||||||
| JH-300 | 180 | 300 | 210 | 5.4 | 6 | 10A | 12 |
| JH-500 | 220 | 500 | 343 | 5.3 | 6 | 10A | 13 |
| JH-600 | 240 | 600 | 412 | 5.3 | 6 | 10A | 13 |
| JH-800 | 300 | 800 | 647 | 5.3 | 9 | 10A | 14 |
