Best-003 Mechanism Parts Pens Carbide Plate

Best-003 Mechanism Parts Pens Carbide Plate thumbnail-1
Best-003 Mechanism Parts Pens Carbide Plate photo-1
US$ 1 - 5 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Condition:
New
Contact Supplier Request Quote Chat Now
Chengdu Best New Materials Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/shanghai/chengdu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Condition New

Specifications

mechanism parts pens
1.reasonable price
2.high speed cutting with efficiency
3.high abrasive resisting

duct details

Item

Description

Type

Type

Dimension(mm)

Best-003 mechanism parts pens carbide plate

L

W

T

15.5x4xT

15.5

4

1—3

25.4x12.7xT

25.4

12.7

1—3

25.4x9.5xT

25.4

9.5

1—3

38.1x12.7xT

38.1

12.7

1—3

40x20xT

40

20

2—10

45x12xT

45

12

2—10

50x13.5xT

50

13.5

2—10

60x12.5xT

60

12.5

2—10

65x17xT

65

17

2—10

70x12.5xT

70

12.5

2—10

83x11xT

83

11

2—10

Other size can accept

Material

100% Tungsten carbide virgin raw material

Grade

Density(g/cm3)

Bending strength

hardness

YG3X

14.6-15.2

1320TRS

90RHA

High wear resistance, good intensity.

YG6X

14.6-15.0

1420TRS

91RHA

High wear resistance,shock resistance, good intensity.

YG8

14.5-14.9

1600TRS

89.5RHA

High wear resistance, shock resistance,good intensity.

Other material grade,also accept

Grain size

0.8-1.5micron



Surface treatment

Sinter

blank or grinding

HIP sintering

Application

Tungsten carbide strip is widely known as one kind of carbide cutting tools, it’s available for different grinding geometric parameters and suitable for both cutting materials and nonmetal materials, also it can be applied to conventional, carbide inserts semi-automatic lathe,automatic lathe and planning machine to work grooves and operate cutting, etc.

for soil cultivation



Feature

easy brazing,good red hardness,high wear resistance and hardness,When it's with grinding, Precision Ground and polished



OEM /ODM

Sample

Yes

available






















































































duct photos

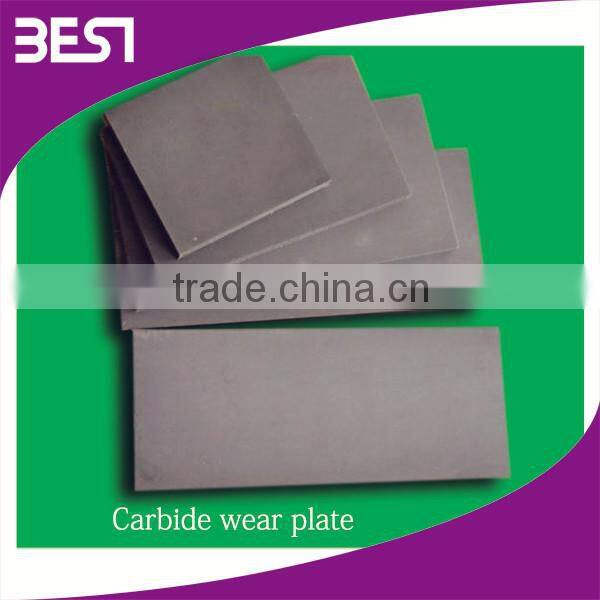

 Best-003 mechanism parts pens carbide plate



III.Product   application

Best-003 mechanism parts pens carbide plate



Best-003 mechanism parts pens carbide plate



 Best-003 mechanism parts pens carbide plate



IV.Company  introduction

   Chengdu best new materials Co., Ltd. located in Chengdu, China. We are a professional manufacturer

& exporter of 1. metal powders ; 2.cemented carbide tools etc.

   Our well-equipped facilities and excellent quality control throughout all stages of production enable us

gained a global sales network reaching Japan, South Korea, Poland, Iran , Syria, England, the United States,

Turkey and Brazil etc.



V.certificate

 Best-003 mechanism parts pens carbide plate



VI.Why Choose us

1.100% factory manufacture and factory direct sales

2.Competitive price and quality guaranteed

3.Small order also welcomed.

4.Sample free is available .

5.Delivery on time.

6.We have more than 10 years experience.

7.We have through the ISO9001 quality management system certification.

8.We have a professional team and technical personnel.



VII.packing and delivery :

    Our products delivery by EMS/DHL /TNT/FedEx /UPS and so on.

Best-003 mechanism parts pens carbide plate



VIII.Why choose Carbide Inserts

1.Higher speeds and feeds allowed.High temperature resistance.

2.The carbide insert provides exceptional wear resistance at the cutting edge.

3.Last longer due to carbide insert forming surface resisting wear.

4.Carbide Insert are high hardness and good abrasion resistance.



FAQ

Q:What is cemented carbide ?

A: Cemented carbide is a hard material used in machining tough materials such as carbon steel or stainless.

Carbide tools can also withstand higher temperatures .



Q: Which grades are useful in metal forming applications?

A:  Grades employed for metal forming applications are typically based on coarse grain sizes (3 to 8 mm) and

high binder contents (15 to 30 wt. %).



Q: Which grades are useful in earth drilling or boring applications?

A: The best compromise is usually arrived at by using grades that are based on coarse grain sizes (3 to 8 mm)

and relatively low Co levels (6 to 16 wt. %).
