Specifications
mini electric circular saw1.reasonable price
2.high speed cutting with efficiency
3.high abrasive resistance.
duct details

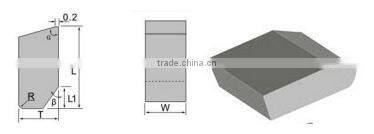

Item | Description | ||||||||||||
Type
|
| L | T | a° | L1 | R | |||||||
JX55 | 5.5 | 1.7 | 65 | 1.5 | 0.5 | ||||||||
JX635 | 6.35 | 1.57 | 60 | 2.8 | 0.5 | ||||||||
JX65 | 6.5 | 2 | 68 | 1 | 0.5 | ||||||||
JX75 | 7.5 | 1.9 | 60 | 2.3 | 0.5 | ||||||||
JX80 | 8 | 2.3 | 65 | 2.5 | 0.5 | ||||||||
JX85 | 8.5 | 2.5 | 62 | 3 | 0.5 | ||||||||
Also accept other size | |||||||||||||
Material | 100% Tungsten carbide virgin raw material | Grade | Density(g/cm3) | Bending strength | hardness | ||||||||
YG3X | 14.6-15.2 | 1320TRS | 90RHA | ||||||||||
High wear resistance, good intensity. | |||||||||||||
YG6X | 14.6-15.0 | 1420TRS | 91RHA | ||||||||||
High wear resistance,shock resistance, good intensity. | |||||||||||||
YG8 | 14.5-14.9 | 1600TRS | 89.5RHA | ||||||||||
High wear resistance, shock resistance,good intensity. | |||||||||||||
Other material grade,also accept | |||||||||||||
Grain size | 0.8-1.5micron | ||||||||||||
| Surface treatment | Sinter | |||||||||||
blank or grinding | HIP sintering | ||||||||||||
Application | Welding on the TCT saw blade for wood,stone etc. | ||||||||||||
Feature | easy brazing; good red hardness;high wear resistance and hardness;When it's with grinding, Precision Ground and polished | ||||||||||||
Welding suggestion | can use resistance welding, the temperature is unfavorable too high. | ||||||||||||
| OEM /ODM | Sample | |||||||||||
Yes | available | ||||||||||||

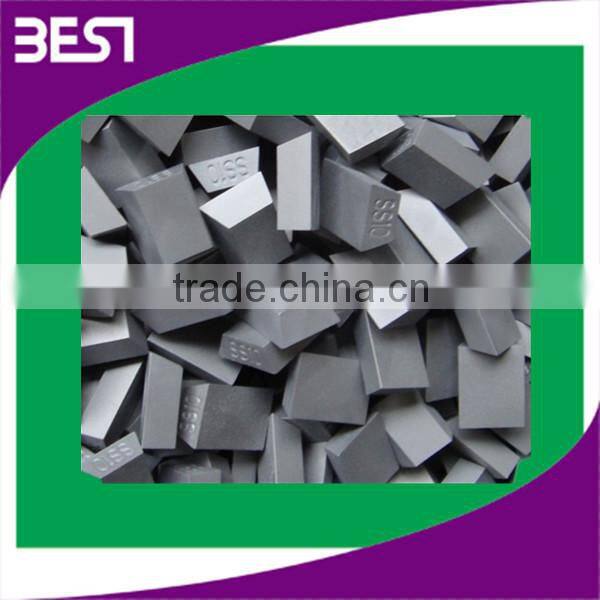

duct photos
III.Product application
IV.Company introduction
Chengdu best new materials Co., Ltd. located in Chengdu, China. We are a professional manufacturer
& exporter of 1. metal powders ; 2.cemented carbide tools etc.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us
gained a global sales network reaching Japan, South Korea, Poland, Iran , Syria, England, the United States,
Turkey and Brazil etc.
V.certificate
VI.Why Choose us
1.100% factory manufacture and factory direct sales
2.Competitive price and quality guaranteed
3.Small order also welcomed.
4.Sample free is available .
5.Delivery on time.
6.We have more than 10 years experience.
7.We have through the ISO9001 quality management system certification.
8.We have a professional team and technical personnel.
VII.packing and delivery
Our products delivery by EMS/DHL /TNT/FedEx /UPS and so on.
VIII.Why choose Carbide Inserts
1.Higher speeds and feeds allowed.High temperature resistance.
2.The carbide insert provides exceptional wear resistance at the cutting edge.
3.Last longer due to carbide insert forming surface resisting wear.
4.Carbide Insert are high hardness and good abrasion resistance.
FAQ
Q:What is cemented carbide ?
A: Cemented carbide is a hard material used in machining tough materials such as carbon steel or stainless.
Carbide tools can also withstand higher temperatures .
Q: Which grades are useful in metal forming applications?
A: Grades employed for metal forming applications are typically based on coarse grain sizes (3 to 8 mm) and
high binder contents (15 to 30 wt. %).
Q: Which grades are useful in earth drilling or boring applications?
A: The best compromise is usually arrived at by using grades that are based on coarse grain sizes (3 to 8 mm)
and relatively low Co levels (6 to 16 wt. %).
