Home > Lights & Lighting > LED Interior Lighting > LED Down Light > 3W 5W 7W 9W 12W 15W 18W 21W 24W Ceiling Recessed Rotatable Dimmable Led Light Downlight

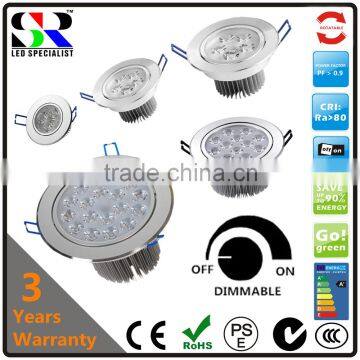

3W 5W 7W 9W 12W 15W 18W 21W 24W Ceiling Recessed Rotatable Dimmable Led Light Downlight

3W 5W 7W 9W 12W 15W 18W 21W 24W Ceiling Recessed Rotatable Dimmable Led Light Downlight thumbnail-3

3W 5W 7W 9W 12W 15W 18W 21W 24W Ceiling Recessed Rotatable Dimmable Led Light Downlight photo-1

3W 5W 7W 9W 12W 15W 18W 21W 24W Ceiling Recessed Rotatable Dimmable Led Light Downlight photo-2

3W 5W 7W 9W 12W 15W 18W 21W 24W Ceiling Recessed Rotatable Dimmable Led Light Downlight photo-3

US$ 0.5 - 5 MOQ: 1 Piece

Key Specifications

Get Latest Price

LED Light Source:

Epistar

Warranty(Years):

Input Voltage(V):

AC85-265V

Contact Supplier Request Quote Chat Now

Shenzhen SR Photoelectricity Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source Epistar

Warranty(Years) 3

Input Voltage(V) AC85-265V

Lamp Power(W) 24

Lamp Luminous Flux(lm) 2640

Lamp Luminous Efficiency(lm/w) 110

Color Temperature(CCT) Other, 2500-6000K

Working Temperature(℃) -20, 60

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

IP Rating IP55

Certification C-tick, CE

Model Number led light downlight

Place of Origin Guangdong, China

Brand Name SR

3W 5W 7W 9W 12W 15W 18W 21W 24W ceiling recessed rotatable dimmable led light downlight

HM LIGHTING, LED DOWNLIGHT SERIES

SPECIFICATION LIST FOR 30° DOWNLIGHT

COMPARE	3W	5/7W	9/12W	15/18W	21/24W
POWER(W) :	3W	5/7W	9/12W	15/18W	21/24W
LUMINOUS (LM) :	330 LM	550/770 LM	990/1320 LM	1650/1980 LM	2300/2600 LM
EMITTING ANGLE :	30°
RATED VOLTAGE :	12VAC/DC, 110VAC, 220VAC
SIZE (MM) :	D85*46MM	D110*70MM	D135*120MM	D160*120MM	D195*66MM
LED CHIP :	EPISTAR
DRIVER TYPE :	CONSTANT CURRENT
HOUSING TYPE :	ALUMINIUM
CERTIFICATE :	CE/ROHS/PSE
WARRANTY :	3 YEARS

SPECIFICATION LIST FOR COB 60° AND GALSS COB 60° DOWNLIGHT

COMPARE	COB 10W 4 INCH	COB 15W 5 INCH	COB 20W 6 INCH	COB 30W 8 INCH	GLASS COB 5W	GLASS COB 10W	GLASS COB 15W
POWER(W) :	10W	15W	20W	30W	5W	10W	15W
LUMINOUS (LM) :	1100 LM	1650 LM	2200 LM	3300 LM	550 LM	1100 LM	1650 LM
EMITTING ANGLE :	60°
RATED VOLTAGE :	85-265VAC
SIZE (MM) :	D130*50MM	D160*60MM	D190*65MM	D220*80MM	D100*35MM	D160*45MM	D200*55MM
LED CHIP :	EPISTAR
DRIVER TYPE :	CONSTANT CURRENT
HOUSING TYPE :	ALUMINIUM
CERTIFICATE :	CE/ROHS/C-TICK
WARRANTY :	3 YEARS

Hey, you get confused about the details ? Don't worry plz, we are just focussing on and displaying the products as family series, but you can tell me which watt or size you need, I will reply you with the certain price immediately ! Thanks !

PRODUCING:

TESTING:

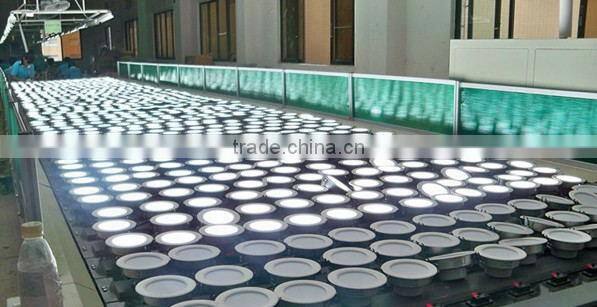

AGING TEST:

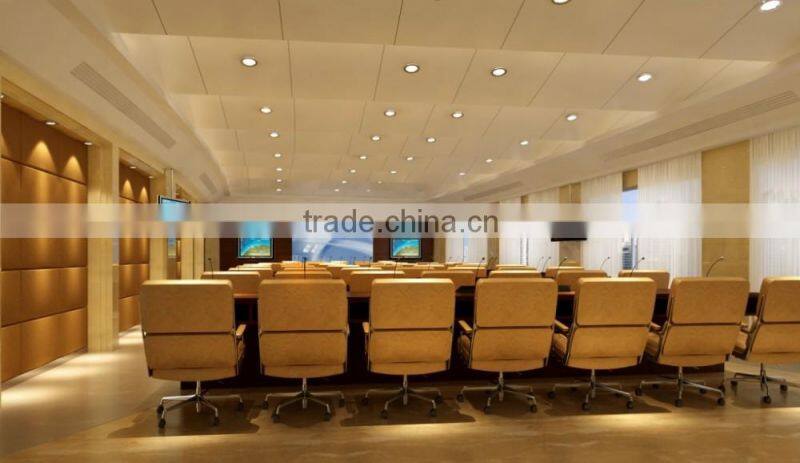

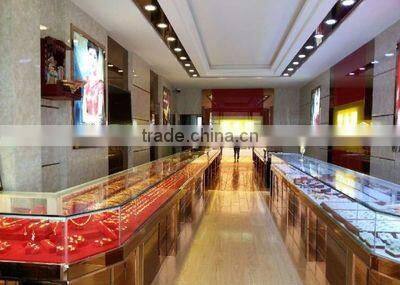

APPLICATION:

PACKING & SHIPPING:

FAST CONTACT:
