Help CenterStyrofoam Underfloor Heat Concrete Floor Insulation Foam Panel
Related Products
-
Extruded Polystyrene Fiber-cement Board Floor UnderlaymentUS$ 4 - 20MOQ: 100 Pieces -
XPS Rigid Panels With Both Sides Mortar BoardUS$ 4 - 20MOQ: 200 Pieces
-
XPS Cement Fiber Board Floor Insulation BoardsUS$ 4 - 20MOQ: 200 Pieces
-
Assembly Xps Extruded Styrofoam Insulation Customized Irregular BoardUS$ 15 - 30MOQ: 200 Pieces
-
Puzzle and Assembly Xps Extruded Styrofoam Insulation Board LEGO EdgeUS$ 4 - 20MOQ: 200 Square Meters

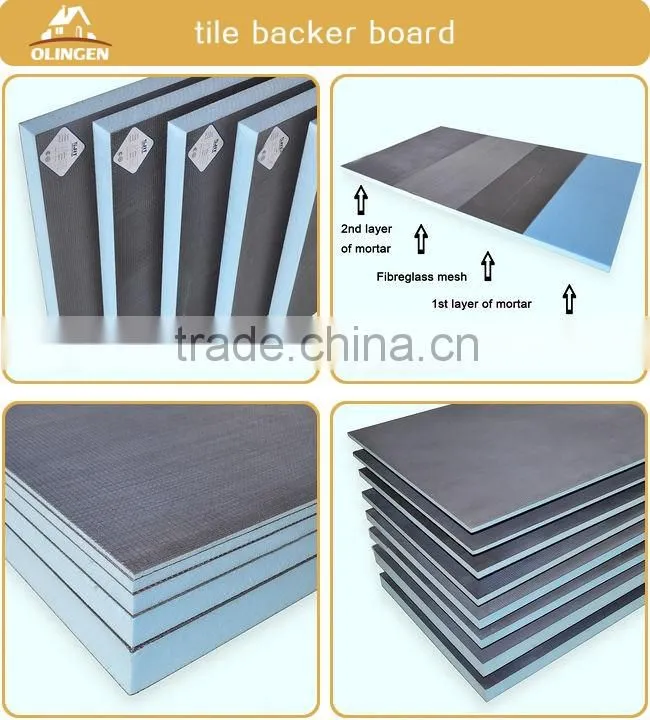

Composition | XPS core,Alkali Mesh,Polymer Mortar Layer |
Quality | Grade A |
MOQ(SQM) | 200SQM |
Application | Exterior Wall or Interior Wall |
Loading port | Shanghai Port |
Payment terms | T/T 30% deposit, balance to be paid before shipment |
Delivery time | 25-30 days after receiving 30% deposit |
Characteristics | Eco-saving,Lightweight,moisture-proof,easy construction,acid resistance. |
Quality sample | Offer free sample on your courier account(DHL.UPS.TNT.FEDEX.ECT) |
Usage | wet areas , wash room,ect. |
Standard dimensions and weight
| Thickness(mm) | width(mm) | length(mm) | Weight (kg/m²) | packaging |
| 6 | 600 | 1250 | 2.7 | 20pcs/carton |
| 10 | 600/900 | 1250/2500 | 2.9 | 20pcs/carton |
| 12 | 600/900 | 1250/2500 | 3.0 | 20pcs/carton |
| 20 | 600/900 | 1250/2500 | 3.2 | 10pcs/carton |
| 30 | 600 | 1250/2500 | 3.4 | 10pcs/carton |
| 50 | 600 | 1250/2500 | 4.3 | 6pcs/carton |
* Dimensional tolerances for standard boards: Thickness +/- 1.5mm, Width+/- 2mm, Length +/- 2mm
Technical Properties
Property | Rating |
Density | 36kg/m3 |
Thermal conductivity | <=0.035w/(m*k) |
Compressive strength(10%deflection) | Minimum of 0.25N/m m2
|
Flexural strength | 2.05N |
Water absorption(2-day immersion) | <=1% |
Water absorption(capillary) | 0 |
Coefficient of linear expansion | 30*10-6 |
Water vapour permeability | 0.028ng/pa.m.s |
EU controlled substance content | None |
Applications
Zhejiang Olingen Building Material Systems Co.,Ltd Specialized in production,design,sales and installation of building materials for 20 years.Its main production include:artificial stone/ brick ;gravel,EPS components,XPS cement products.
