Underflooring heating insulation board

Name: Underflooring heating insulation board
Brand: Olingen
Price: Negotiable

FOB Price

Negotiable / Square Meter

200 Square Meters(Min.Order)

Supply Ability 50000 Piece / Pieces per Month
Port SHANGHAI/NINGBO

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Zhejiang, China

Brand Name:

Olingen

Model Number:

OBB-1

Product Description

Flooring underheating insulation board

Specifications

1. Waterproof and insulating XPS
2. Easy to cut and assemble
3. Wet room, shower room
4. Ready to tile

Product Overviews

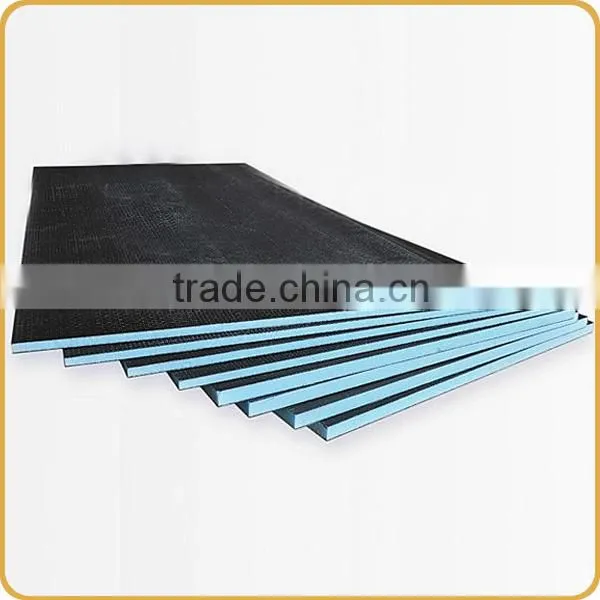

Olingen tile backer boards are manufactured using a high-density and waterproof extruded polystyrene core(XPS) with a polymer modified, glass fibre reinforced cement coating on both sides, which adds rigidity and strength to the board and shower trays.

Product appearance

The boards have straight edges. The color of the surface is grey and the core material is light blue

Reaction to fire

The boards are classified as class E according to EN 13501-1. When the boards are covered with tiles, their fire performance should comply with local construction laws and regulations.

Standard dimensions and weight
Short board	Thickness(mm)	Weight(kg/m²)	Length width(mmmm)
	6	2.7	1200*600
			1220*600
			1250*600
	10	3.1	1200*600
			1220*600
			1250*600
	12	3.2	1200*600
			1220*600
			1250*600
	20	3.5	1200*600
			1220*600
			1250*600
	30	3.8	1200*600
			1220*600
			1250*600
	50	4.3	1200*600
			1220*600
			1250*600

Standard dimensions and weight
Long board	Thickness(mm)	Weight(kg/m²)	Length width(mmmm)
	6	2.7	2440*600
			2500*600
	10	3.1	2440*600
			2500*600
	12	3.2	2440*600
			2500*600
	20	3.5	2440*600
			2500*600
	30	3.8	2440*600
			2500*600
	50	4.3	2440*600
			2500*600

The board has the following tolerances:thickness:± 2mm width:± 2mm length:± 3mm

Main applications:

1.Wall and floor insulation for interior and exterior.

2.Underfloor heating

3.Waterproof and insulating projects for wet areas such as bathroom, kitchen, swimming pool,spa.

4.Enclosures for bathtubs, columns, steps and water pipes.

Reinforcement

1. Dry areas: reinforce all joints between boards, floors and walls by 5cm or 10cm wide self-adhesive tape.

2. Wet areas: reinforce by suitable waterproof tape.

Waterproof strengthen

1. Strengthening all joints between boards, floors, walls and mechanical fixings placements by suitable waterproof tape.

2. Strengthening joints between walls, outside corners and inside corners by special corners.

3. Sealing pipe holes with special waterproof tape.

4. Strengthening once again by waterproof glue, liquid tanking membrane, tanking membrane paint, etc. when necessary.

Effect on indoor environment

Olingen board has been assessed as not emitting any particles,

gases or radiation that may have a negative effect on the indoor climate or to have any significant effect on health.

Environmental declaration

The product does not contain any substances on the observation list of dangerous substances published by the national environmental authorities.

Product Display

FAQ

Why do I need Olingen BOARD?

Because Olingen BOARD will save you money by acting as a very efficient insulation barrier. It reflects the heat upwards into the floor tile instead of allowing the heat to warm up the concrete slab below. Besedes, it not only has the function of heat insulation and strong waterproofness, but also provides a base for the ceramic tile.

How does compare to plasterboard?

It doesn’t there really is no comparison. Standard plasterboard offers approximately 1/6th the U value of an equal thickness of Olingen BOARD. and yet is approximately 7 times heavier. When used in wet areas, such as bathrooms or showers,Olingen BOARD is totally waterproof whereas plasterboard will absorb water unless it is of the waterproof variety which will cost considerably more.

Compare a few characteristics of Olingen BOARD against plasterboard

1. 1/7th the weight of Plasterboard

2.waterproof, ordinary plasterboard is not.

3.(10mm) has a U value of 2.7 against 12.8 W/M2 K of 12.5mm

What thickness Olingen BOARD do I need?

The thicker the Olingen BOARD the better the heat insulation, but obviously if you have an existing floor that you want to insulate, you may well be governed by the thickness you can add to the floor because of the height from the finished floor to the underside of your door. Even by using 6mm Olingen BOARD you will notice the benefit of insulating with Olingen BOARD .Generally speaking,,6mm and 12mm are used for floor while thicker than 20mm are usually for wall partition.

How do I fix Olingen BOARD to walls?

The board can be either fixed to timber battens with screws and screw cups or fixed directly to brick or block walls by drilling, plugging and screwing the boards to the wall. If the wall is to be plaster finished, the joints should be reinforced with a plaster scrim

Where else could I use Olingen BOARD?

It can be used on walls, ceilings and floors in bathrooms, kitchens, garages, lofts, and conservatories to name a few. In fact the list is endless.

How do I cut Olingen BOARD?

Simply use a Stanley knife

Product Advantage

Project Cases
