Quick Details
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: OLINGEN
- Model Number: OLG-TBB
- Panel Material: Nonmetal
- Type: XPS Sandwich Panels
- Thermal conductivity: 0.030 W(m.k)
- Density: 36kg/CBM
- Compressive strength: 300KPa
- Core: XPS insulation board
- Coating: cement&fiberglass mesh
- Specification: ISO CE SGS TUV
Packaging & Delivery
| Packaging Details: | cartons/pallets/OEM service |
|---|---|
| Delivery Detail: | in 10~20days from factory after receiving your advance payment |

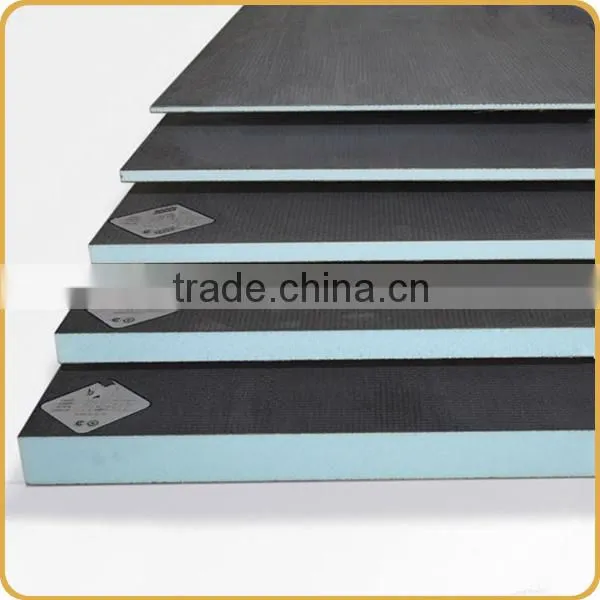

OLINGEN tile backer boards are manufactured using a high-density and waterproof extruded polystyrene core(XPS) with a polymer modified, glass fibre reinforced cement coating on both sides, which adds rigidity and strength to the board and shower trays.
Applications:
1.Wall and floor insulation for interior and exterior.
2.Underfloor heating
3.Waterproof and insulating projects for wet areas such as bathroom, kitchen, swimming pool,spa.
4.Enclosures for bathtubs, columns, steps and water pipes.
Sizes available:
| Standard dimensions and weight | |||
| Short board | Thickness(mm) | Weight(kg/m²) | Length *width(mm*mm) |
| 6 | 2.7 | 1200*600 | |
| 1220*600 | |||
| 1250*600 | |||
| 10 | 3.1 | 1200*600 | |
| 1220*600 | |||
| 1250*600 | |||
| 12 | 3.2 | 1200*600 | |
| 1220*600 | |||
| 1250*600 | |||
| 20 | 3.5 | 1200*600 | |
| 1220*600 | |||
| 1250*600 | |||
| 30 | 3.8 | 1200*600 | |
| 1220*600 | |||
| 1250*600 | |||
| 50 | 4.3 | 1200*600 | |
| 1220*600 | |||
| 1250*600 | |||
| Standard dimensions and weight | |||
| Long board | Thickness(mm) | Weight(kg/m²) | Length *width(mm*mm) |
| 6 | 2.7 | 2440*600 | |
| 2500*600 | |||
| 10 | 3.1 | 2440*600 | |
| 2500*600 | |||
| 12 | 3.2 | 2440*600 | |
| 2500*600 | |||
| 20 | 3.5 | 2440*600 | |
| 2500*600 | |||
| 30 | 3.8 | 2440*600 | |
| 2500*600 | |||
| 50 | 4.3 | 2440*600 | |
| 2500*600 | |||
Customized sizes and package can be provided as well.
The thickness is not than 100mm
The Width is not than 1200mm
We do OEM as well. Welcome to make an enquiry and we will give you quick response in 8 hours!
