Home > Construction & Decoration > Heat Insulation Material > XPS Foam Board > Glass Fibre and Cement Composite Insulation Board

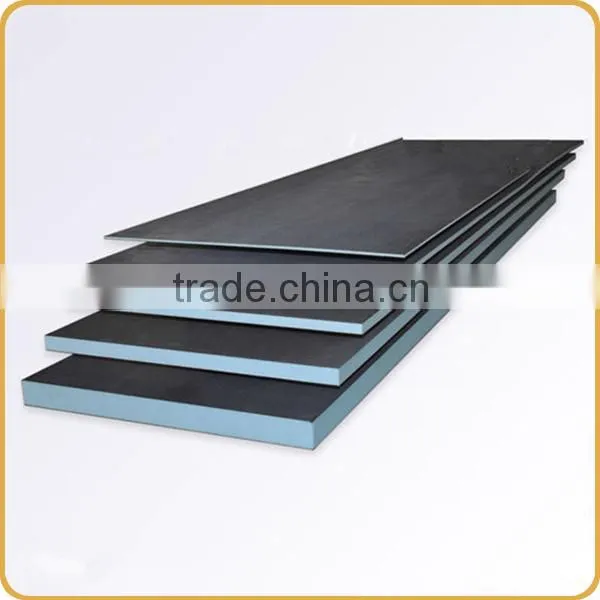

Glass Fibre and Cement Composite Insulation Board

Name: Glass Fibre and Cement Composite Insulation Board
Brand: Olingen
SKU: 129852017

Glass Fibre and Cement Composite Insulation Board thumbnail-1

Glass Fibre and Cement Composite Insulation Board photo-1

US$ 4 - 20 MOQ: 200 Square Meters

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Olingen

Model Number:

OBB-1

Contact Supplier Request Quote Chat Now

Zhejiang Olingen Building Material System Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI/NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Olingen

Model Number OBB-1

Glass fibre and cement composite insulation board

Product Overviews

Insulation & waterproofing solutions !!!

Product structure:

Made of high-performance waterproof extruded polystyrene, it has a 0.75mm coating on either side comprising a glassfiber mesh embedded in a polymer cement mortar.

Standard dimensions and weight :

Thickness(mm)	Weight(kg/m²)	Length by width(mm*mm)
6	2,7	1220 x 600
10	2,9	1220 x 600
12	3,0	2440 x 600
20	3.1	2440 x 600
30	3,3	2440 x 600
50	4,2	2440 x 600

The board has the following tolerances:thickness:± 2mm width:± 2mm length:± 3mm

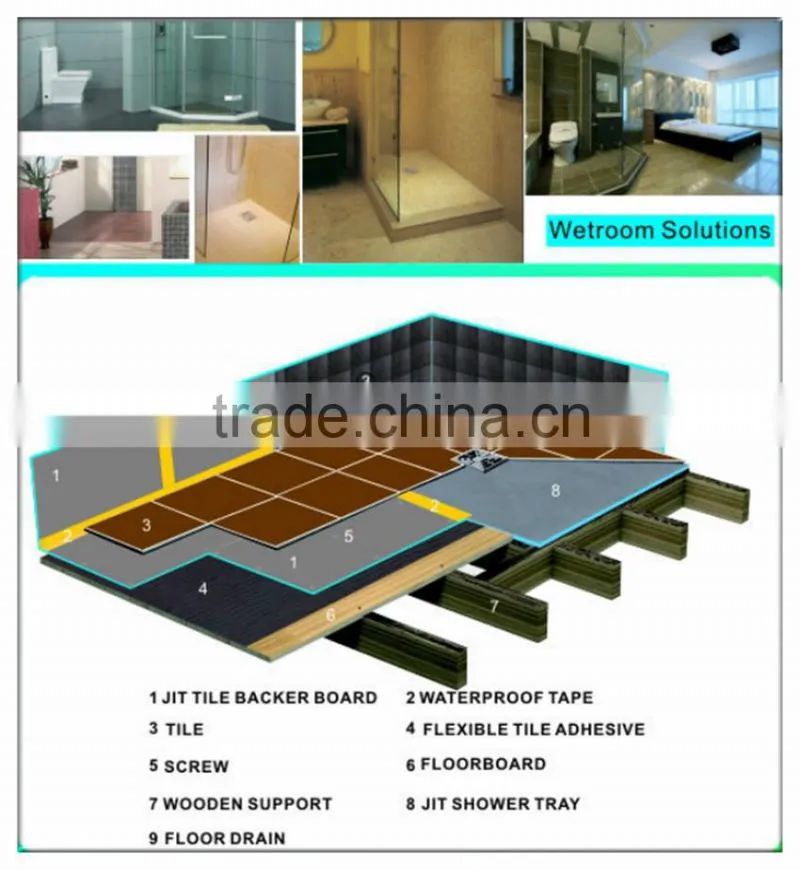

Main applications:

Used as a watertight layer on walls and floors in houses, hotels and other wet areas such as bathroom, shower room.

1.Attaching to masonry,concrete or plaster

2.Screwing onto laths and supports

3.Concrete floors

4.Timber floors

5.Underfloor heating

6.Bathtubs and shower tray surrounds

7.Vanities and shelving

8.Pipe coverings

Product Display

Product Advantage

Project Cases

FAQ

Why do I need Olingen BOARD?

Because Olingen BOARD will save you money by acting as a very efficient insulation barrier. It reflects the heat upwards into the floor tile instead of allowing the heat to warm up the concrete slab below. Besedes, it not only has the function of heat insulation and strong waterproofness, but also provides a base for the ceramic tile.

How does compare to plasterboard?

It doesn’t there really is no comparison. Standard plasterboard offers approximately 1/6th the U value of an equal thickness of Olingen BOARD. and yet is approximately 7 times heavier. When used in wet areas, such as bathrooms or showers,Olingen BOARD is totally waterproof whereas plasterboard will absorb water unless it is of the waterproof variety which will cost considerably more.

Compare a few characteristics of Olingen BOARD against plasterboard

1. 1/7th the weight of Plasterboard

2.waterproof, ordinary plasterboard is not.

3.(10mm) has a U value of 2.7 against 12.8 W/M2 K of 12.5mm

What thickness Olingen BOARD do I need?

The thicker the Olingen BOARD the better the heat insulation, but obviously if you have an existing floor that you want to insulate, you may well be governed by the thickness you can add to the floor because of the height from the finished floor to the underside of your door. Even by using 6mm Olingen BOARD you will notice the benefit of insulating with Olingen BOARD .Generally speaking,,6mm and 12mm are used for floor while thicker than 20mm are usually for wall partition.

How do I fix Olingen BOARD to walls?

The board can be either fixed to timber battens with screws and screw cups or fixed directly to brick or block walls by drilling, plugging and screwing the boards to the wall. If the wall is to be plaster finished, the joints should be reinforced with a plaster scrim

How to store Olingen BOARD ?

To ensure the boards flat ,the boards should keep level. Boards can't exposed to fire or other organic solvent so that board can be provented from ultraviolet radiation during long-term storage. Slight bowing caused by incorrect storage or transport, for example, is not permanent and does not represent a technical defect. Slight curving can be rectified through storing the boards flat.
