Product name |

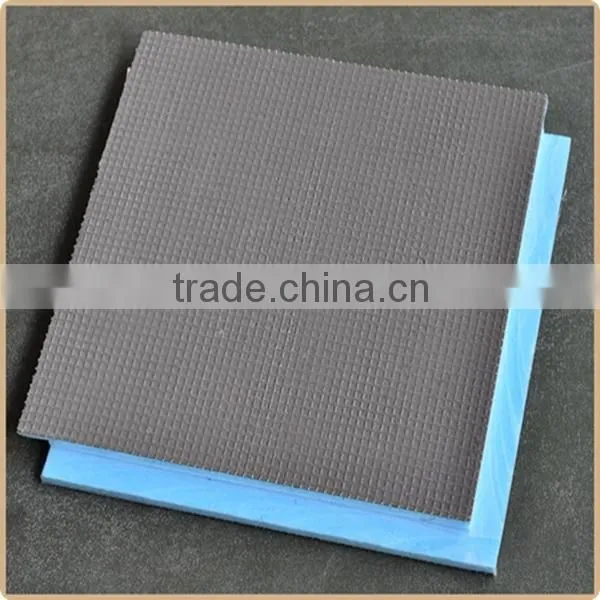

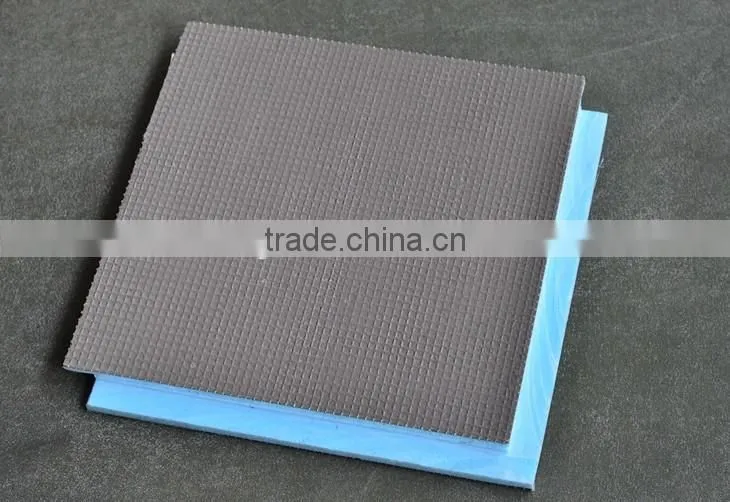

XPS waterproof shower floor board |
Composition |
XPS core,Alkali Mesh,Polymer Mortar Layer |
Quality |
Grade A |
MOQ(PCS) |
100PCS |
Application |
Exterior Wall or Interior Wall |
Loading port |
Shanghai Port or Ningbo |
Payment terms |
T/T 30% deposit, balance to be paid before shipment |
Delivery time |
25-30 days after receiving 30% deposit |
Characteristics |
Eco-saving,Lightweight,moisture-proof,easy construction,acid resistance. |
Quality sample |
Offer free sample on your courier account(DHL.UPS.TNT.FEDEX.ECT) |
Usage |
wet areas , wash room,ect. |
Standard dimensions and weight
| Thickness(mm) | width(mm) | length(mm) | Weight (kg/m²) | packaging |
| 6 | 600 | 1250 | 2.7 | 20pcs/carton |
| 10 | 600/900 | 1250/2500 | 2.9 | 20pcs/carton |
| 12 | 600/900 | 1250/2500 | 3.0 | 20pcs/carton |
| 20 | 600/900 | 1250/2500 | 3.2 | 10pcs/carton |
| 30 | 600 | 1250/2500 | 3.4 | 10pcs/carton |
| 50 | 600 | 1250/2500 | 4.3 | 6pcs/carton |
Technical Properties
| Property | Assessed to | Rating |
| Xps Density | DIN 53420 | 36 ± 0.02 kg/m3 |
| Thermal Conductivity | EN 12167 | 0.033 W/m.K |
| Compressive Strength (10% deflection) | EN 826 | 300 kPa (30 tonnes/m2) |
| Flexural Strength | ASTM C203 | 0.30 ± 0.02 MPa |
| Water Absorption (2-day immersion) | ISO2896 | 0.2% by volume |
| Water Absorption (Capillary) | DIN 53428 | Zero |
| Water Vapour Diffusion Resistivity (µ) | DIN 52615 | 110 - 225 µ |
| Water Vapour Permeability | ASTM E-96 | 0.028 ng/Pa.m.s |
| Maximum Tile Loading Weight | CERAM121107 | 60kg/m2 |
| Flammability | EN 13501 | Class E |
| Impact Sound Reduction | BS-ISO140- | dLw = 21 |
| EU controlled substances conten | N/A | none |
Applications:Underfloor heat insulation board
Sample: offer free sample on clients' courier account. samples are available within 3-5 working days
Mass production delivery: Normally one container order needs 25-30 days .
MOQ: accept wholesale and retail , if quality is more than a container , we can give u discount .
Quality guarantee : 15-20 years quality guarantee .
Customised:we can produce the products for customised accroding to customer demand.
Zhejiang Olingen Building Material Systems Co.,Ltd Specialized in production,design,sales and installation of building materials for 20 years.Its main production include:artificial stone/ brick ;gravel,EPS components,XPS cement products.
