Help CenterMC604 Switching Supply Amplifier
Related Products
Specifications
MC604 switching supply amplifier4x600W 8ohms
2U amplifier
light weighted amplifier
mid-high end amplifier
MC604 SWITCHING SUPPLY AMPLIFIER SPECIFICATION
|
Model
|
MC604(4-channel)
|
Power |
8 ohms Stereo Power: 4X600W |
Features |
four channels, Switching supply amplifier, double-sided circuit board,SMT technology, soft start, short circuit protection and other intelligent protection |
THD @ Rated Power 4 ohms1 KHz |
<0.01% |
20Hz - 20KHz |
<0.03% |
Hum&Noise |
-103dB |
Input CMRR |
>80 dB |
Gain |
36dB |
Damping Factor 1 kHz, 8 ohms |
> 200 |
Input Sensitivity |
1.22V |
Frequency Response |
20Hz-20kHz,+0/-0.5dB |
Input Impedance(actively balanced) |
20kΩ |
Power Requirement |
220 VAC @ 30amps |
Amplifier Dimensions(H*W*L) |
88mmx483mmx430mm |
Carton Dimension(H*W*L) |
155mmX600mmX640mm |
Net Weight |
12.5kg |
Gross weight |
16.7kg |
More pictures:

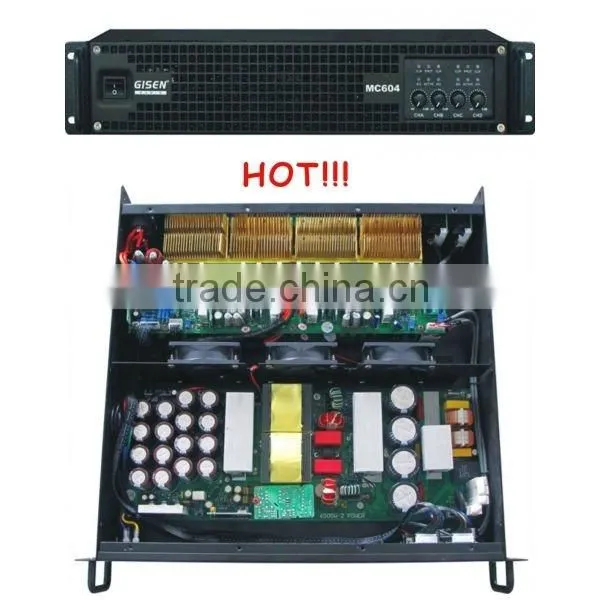

switching supply amplifier front view:

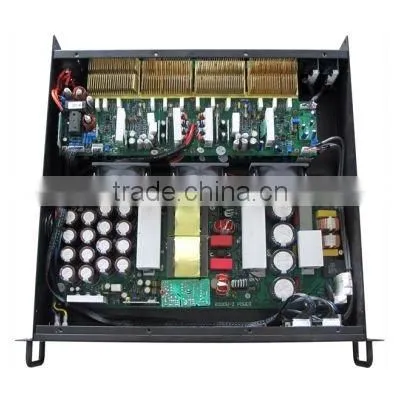

switching supply amplifier top view:
switching supply amplifier back view:
