hot sales mobile charger circuit design

Specifications

portable mobile charger
1. 5000mAh power capacity
2. LED indication and lighting
3. Overcurrent & short-circuit protection

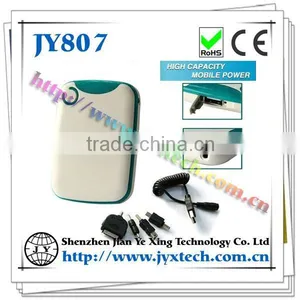

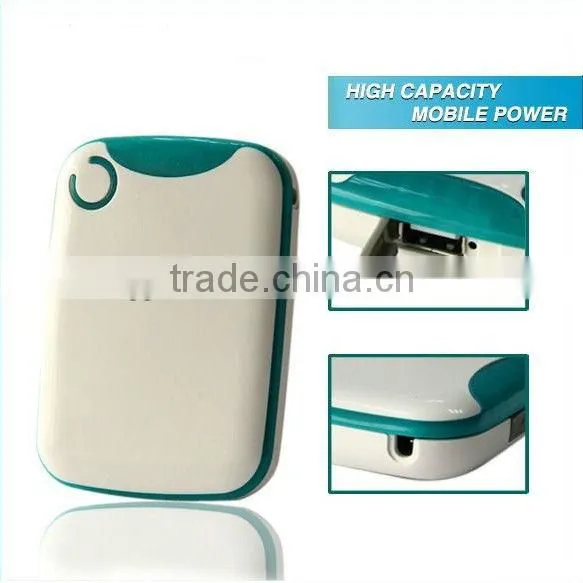

JY807-Portable Power Bank



[Overview]



JY807 Portable Power Bank is a device which combines many functions (power charge save and supply) in one. The product uses 1PCS Lithium-ion polymer Battery (3000mAh/5200mAh High power capacity) as basic power cell and is equipped with all kinds of connectors, which could help you to charge your cellphone, digital camera, MP3, MP4, MP5, GPS, PSP, PDA, palmtop and any USB charging equipment at all times and places. The features of small-in-size, large capacity, multipurpose and high-security must be satisfactory for you. It’s your best outside partner







[Introduction]



1. 3000mAh/5200mAh power capacity



2. LED indication



3. Full charged in 5 hours



4. Charge control & overcharge, overload, overcurrent & short-circuit protection







[Specification]



Parameters Name		Parameters Data
Shell Material		ABS or Metal
Battery(Rechargeable)	Type	Lithium-ion polymer Battery
	Capacity	3000mAh/5200mAh
	Input	DC5V/USB5V-800mA
	Output	DC(5.2 V±0.2V, 1000mA)
Charging Period		5 hours
Battery Cycle life		Over 500times
Indication	Type	LED
	LED life	240h in commission when full charged
Plug	Output	Standard USB2.0
	Input	Standard MINI USB2.0
Unit size		98*72*19.5mm
Unit Weight	N.W. (single product)	138g
	G.W. (package incl.)	298g
Color		White and Black/Bule/Green and etc.
Certification		CE, RoHS
OEM Capability		Yes







[Description of Design]



1. Shell: ABS or metal. Exquisite outward appearance with a soft feel and easy to take and charge.



2. Battery: Lithium-ion polymer Batteries (3000mAh/5200mAh High power capacity), amount to 8 cellphone standard batteries, long standby time & long cycle life(over 500times).



3. Safe: charge control & overcharge, overload, overcurrent & short-circuit protection.



4. USB port: plug and play. Once plug in USB cable, you can charge your equipment.



5. LED indicators: showing the charge status.



6. Low resistance and energy saving.



7. High quality and environmental protection.



8. Accessories: 1pcs user guide



1pcs USB cable (sprial or straight)



8pcs connectors (iPad, iPod, iPhone, Nokia, HTC, Blackberry, Digital camera, MP3, MP4, MP5, GPS, PSP, PDA, palmtop and so on)



Other optional accessories (adapter and etc.)







[Function]



Charging your portable devices and any USB charging equipments at all times and places.



1. Mobile phones: Nokia, Sony Ericsson, Samsung, Motorola, iPhone, Blackberry, LG, etc.



2. Apple series: iPod nano/Classic/Touch, iPhone/3G/3GS/4G/4S, IPAD 1/2/NEW etc.



3. Game consoles:PSP,NDS etc.



4. Other devices: Digital camera, DV, MP3/MP4/MP5 player, GPS, PDA, bluetooth headset etc.







[Sphere of application]



1. Wide applications in travlling, camping out, emergency charging etc.



2. Widely compatible with smart mobiles and all 5V digital devices.







[Product component]



Portable power bank	1PC
User manual	1PC
USB cable (sprial or straight)	1PC
Connectors	8PCS (Optional)
Adapter	1PC (Optional)
DC cable	1PC (Optional)
Gift box	1PC
Remarks: Customized Sticker, User manaul, Limited Product Warranty are welcome.







[Packing & Shipping]



Packing Method	Packing Picture & Size	Shipping List
Gift box	Packing Size: 175*114*46mm	QTY: 50 PCS N.W.: 14.8 KGS G.W.: 15.5 KGS MEAS: 58*34*24 CM
Remarks: White box, Gift box and other OEM package are welcome.







All above information is for your reference and we support to customize.
