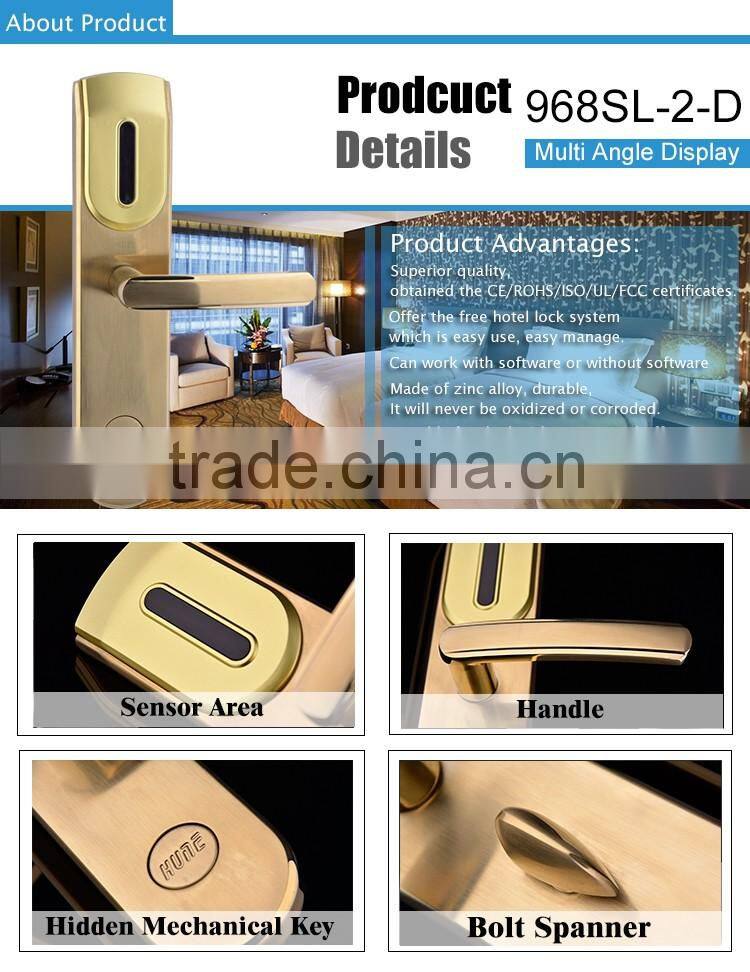

Hune Biometric Hotel Door Lock With Free Management Software

Hotel Locks System Details

Basic (necessary) components of lock system include:

Software: It is management system. Work on window XP, 7 and 8. Multi-language is possible. Simple and intuitive. Compatible with most of the common property management systems(PMS) interface. Can manages the locking plan 64,000 doors.
Computer: It is used to install lock management software, prepared by hotel.
Card encoder : Device for reading and encoding(issue) the card. USB port. Serveral encoders can work simultaneously in a network.
Cards : One Lock need at least one pcs card, for opend door. 100,000 times durable.
Lock : Install onto the door. Independent, wireless, battery-operated. It stores latest 220 events. Perfect reading. Advanced security performance.

Optical components of lock system include:
Data Register: It is used to collect the unlocking records from the locks, and read on the computer.
Energy-saving switch: device allow the key card to turn on the lighting system and air controller of the room.
Elevator/ Access reader: device for controlling the elevator or public access.

Software Overview:

 Work Without Software:

Function card:[Mother Card],[Key Card]
*The mother card is used to create key card
*The key card is used to open the door.
The same card can be shared by all of the locks.
(Lock just memory card ID)

Mode
*Create Mother Card
Press‘Reset’button, touch the card want to become Mother Card.
*Create Key Card
Touch Mother Card, then touch the card want to become Key Card.
*Terminate all Key Cards
Touch the Mother Card 3 times successively.
