Constant Current LED STRIP IC SMD3528-120LED/M-CW+WW Color Adjustable DIMMABLE LED STRIP

Apex Optoelectronics Co., Ltd.
Constant Current LED STRIP IC SMD3528-120LED/M-CW+WW Color Adjustable DIMMABLE LED STRIP thumbnail-1
Constant Current LED STRIP IC SMD3528-120LED/M-CW+WW Color Adjustable DIMMABLE LED STRIP thumbnail-2
Constant Current LED STRIP IC SMD3528-120LED/M-CW+WW Color Adjustable DIMMABLE LED STRIP thumbnail-3
Constant Current LED STRIP IC SMD3528-120LED/M-CW+WW Color Adjustable DIMMABLE LED STRIP photo-1
Constant Current LED STRIP IC SMD3528-120LED/M-CW+WW Color Adjustable DIMMABLE LED STRIP photo-2
Constant Current LED STRIP IC SMD3528-120LED/M-CW+WW Color Adjustable DIMMABLE LED STRIP photo-3
US$ 1 - 20 MOQ: 200 Meters
Key Specifications
Get Latest Price
LED Light Source:
led
Type:
Flex LED Strips
Input Voltage(V):
DC24V
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
ZhongShan/ShenZhen/HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source led
Type Flex LED Strips
Input Voltage(V) DC24V
Lamp Power 9.6W/M
Lamp Luminous Flux(lm) 816lm/Meter
Color Temperature(CCT) 2700--6500k
Working Temperature(℃) -40, 60
Working Lifetime(Hour) 50000
Lamp Body Material Other, LED PCB
Certification CE, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, SAA, SASO, UL, VDE
Emitting Color Other, ww+cw dimmable
Place of Origin Guangdong, China
Brand Name APEX
Model Number AX-SMD3528ww+cw-120

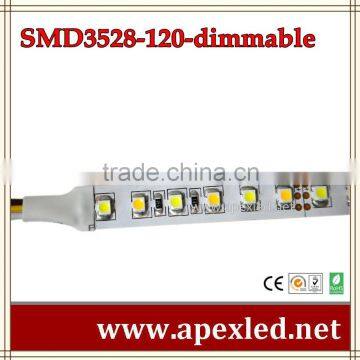

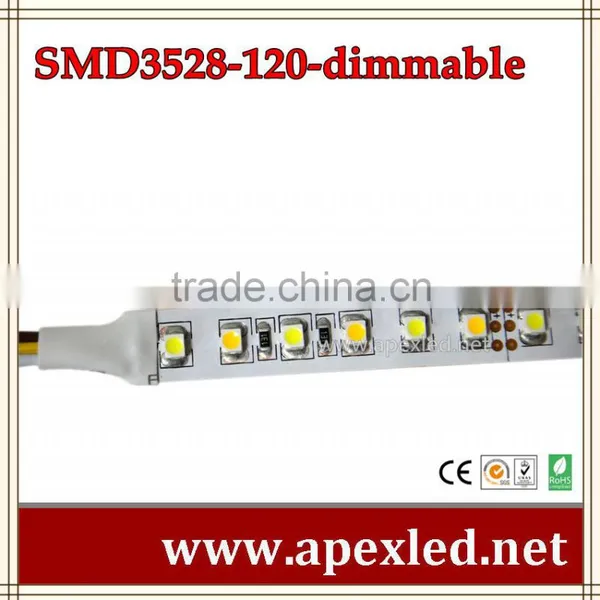

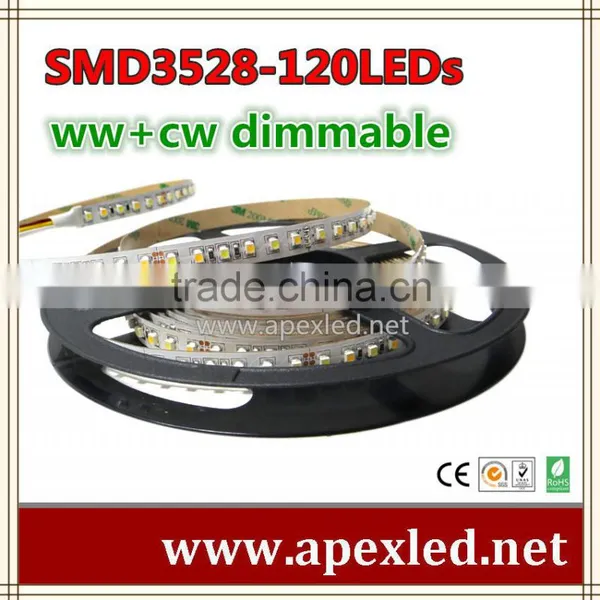

ic dimmable led strip SMD3528-120LED/M-CW+WW color adjustable



  Specification

Item Name

AX-3528-120/24v

Light source

SMD3528

LED Qty

120LEDs/M,600LEDs/5M

Working voltage

DC24V

Output power

9.6W/M

PCB Width

10MM

PCB Color

White

Waterproof Rate

non-waterproof IP33

Color Temperature

2700k-6500k

Cut table

Every 6units LEDs

Long Life span

50,000Hs

Viewing angle

120°

Certificate

CE,ROHS,



 Features



u Low power consumption,Super-bright but running with low temperature



u All the light spread and completely smooth,luminous very even



u Every 6-LEDS(DC24v) cuttable without damaging the rest strips, according to your requirement



u Self-adhesive back with 2M/3M tape for secure and easy application



u Dc-plug already soldered on the connector,ready to be plugged in and working



u LED Type:High quality 3528/5050 SMD LED,high intensity and reliability,long lifespan>50,000 hours



constant current LED STRIP IC SMD3528-120LED/M-CW+WW color adjustable DIMMABLE LED STRIP



 constant current LED STRIP IC SMD3528-120LED/M-CW+WW color adjustable DIMMABLE LED STRIP



constant current LED STRIP IC SMD3528-120LED/M-CW+WW color adjustable DIMMABLE LED STRIP







 Applications



u Widely used for home decoration use,hotels,clubs,shopping malls



u Architectural decorative lighting,boutique atmosphere lighting



u Extensively applied in Backlighting,concealed lighting,channel letter lighting



u Emergency & security lighting,advertisement sign lighting



u Decorative lights for holiday,event,show exhibition



u Applicable for automobile and bicycle decoration,border or contour lighting





constant current LED STRIP IC SMD3528-120LED/M-CW+WW color adjustable DIMMABLE LED STRIP

constant current LED STRIP IC SMD3528-120LED/M-CW+WW color adjustable DIMMABLE LED STRIP

constant current LED STRIP IC SMD3528-120LED/M-CW+WW color adjustable DIMMABLE LED STRIP

 constant current LED STRIP IC SMD3528-120LED/M-CW+WW color adjustable DIMMABLE LED STRIP



constant current LED STRIP IC SMD3528-120LED/M-CW+WW color adjustable DIMMABLE LED STRIP

 constant current LED STRIP IC SMD3528-120LED/M-CW+WW color adjustable DIMMABLE LED STRIP



constant current LED STRIP IC SMD3528-120LED/M-CW+WW color adjustable DIMMABLE LED STRIP
