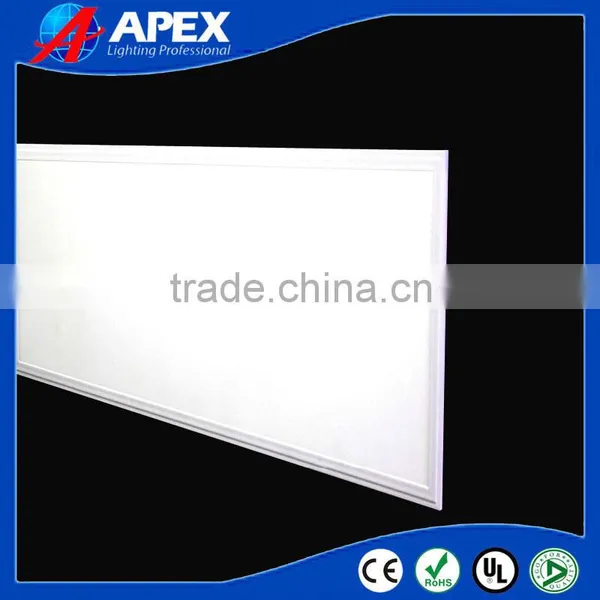

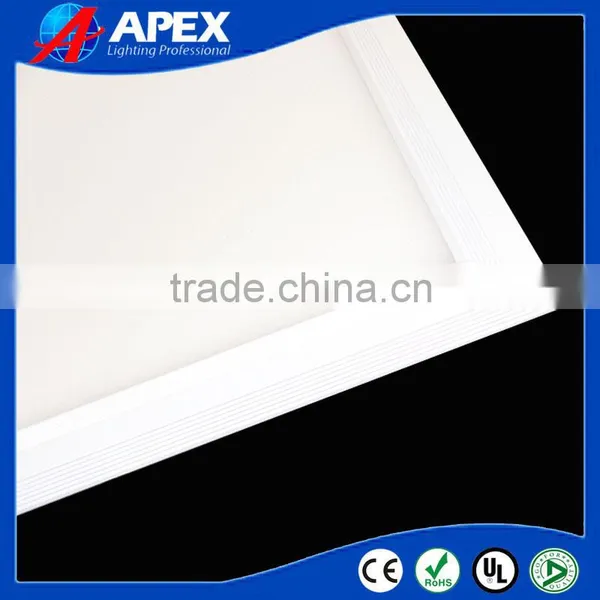

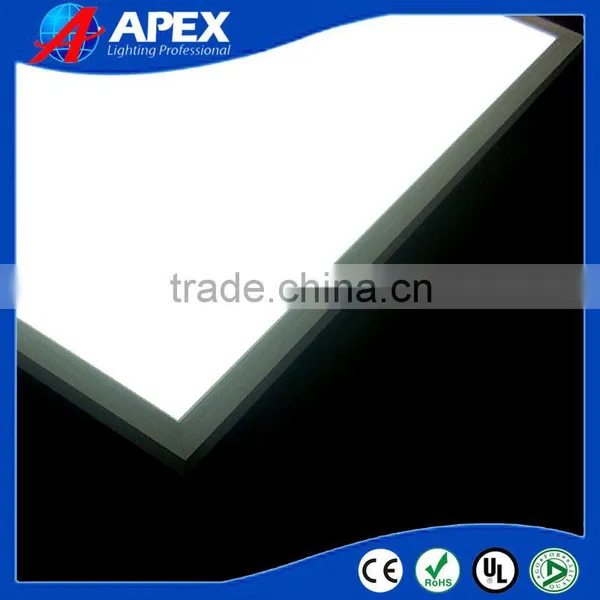

UL rectangle led ceiling light surface mounted panel light 600*1200mm

Features:

1. Super slim design, save 70% energy, High efficiency 90-120LM/W with uniformed luminance.

2. Life span: 50000 hours

3. Wide range of input voltage: AC100-240V

4. Instant start, no noise, no flickering

5. New high efficiency constant current driver.

6. Professional circuit design, each group of LEDs work separately to avoid any problem of lighting output caused by single faulty LED.

7. No electrical wave interference, confirm to the standard of CE.

8. No plumbum, green environment friendly, confirm to the standard of RoHS.

9. No RF interference.

Attention on Installation:
1. Panel lights should be installed by trained electronic technician.
2. Please check all the accessories when open the cartons.
3. The distance between the light and any flammable materials must be more than 0.2m. The distance between the upper

part of the installed light and the ceiling must not be less than 2 cm. Don not install into ceilings or walls that contain heat

source. The main cable must not connect with the low voltage cable or the surface-mounted lights.
4. Guide the lights' connecting cables through the drilled hole, and fix the surface-mounted lights with the pre-fitted clips.

Make sure that these are securely connected to the base material.
5. When laying the cables, make sure that the cables and plugs are not subjected to any tensile or twisting forces. Do not

kink cables. Output cables should be laid separately and at a distance from other cables.
6. After installation, connect the transformer to the mains supply
7. Proceed by connecting the wiring cables to the lights. Usually, the brown (or black) wire is the Live wire, connect it with

the terminal marked "L". The blue wire is Naughty wire; connect it with the terminal marked "N".
8. Use the dedicated LED drivers only, do not connect to other loads
9. Do not remove the label of the lights and drivers.

600*600mm Packing Size:

Inner Box: 690×680×55mm (1pcs/box) NW: 4.1KG   GW: 4.7KG

Carton Size: 700×710×240mm (5boxes/carton) NW: 23.5KG  GW: 25.7 KG

300*1200mm Packing Size:
Inner Box: 380×1280×55mm (1pcs/box) NW: 3.5 KG   GW: 4.9KG
Carton Size: 400×1300×240mm (5boxes/carton) NW: 24.5KG  GW: 26.7KG

600*1200mm Packing Size:
Inner Box: 1280×680×55mm (1pc/box) NW: 9.5 KG   GW: 10.7KG

Carton Size: 1300×700×130mm (2boxes/carton)  NW: 21.4KG  GW: 24 KG
