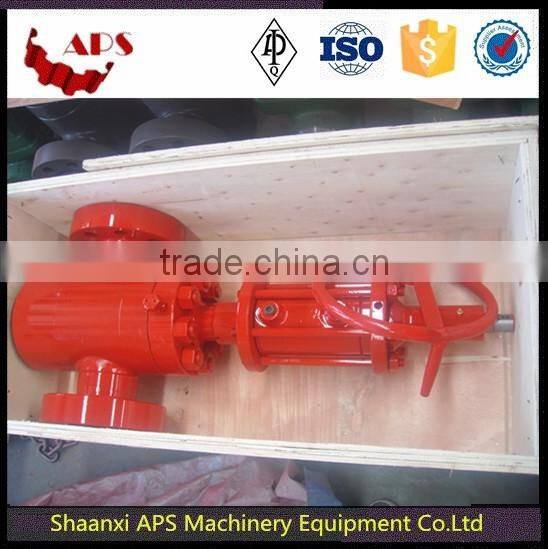

Help CenterCameron FC Hydraulic Gate Valve API 6A
Related Products
-
Cameron FCL Gate Valve API 6A for Well ControlUS$ 100 - 10,000MOQ: 5 Pieces -
Cameron FC Slab Gate Valve API 6AUS$ 100 - 10,000MOQ: 5 Pieces
-
API 6A Cameron FC Gate ValveUS$ 100 - 5,000MOQ: 1 Set
-
API 6A Wellhead Equipments/x-mas Trees/ Casing Head/ Tubing HeadUS$ 100 - 10,000MOQ: 1 Piece
-
X-mas Tree Gate Valve/Flanged Gate Valve/ API 6AUS$ 100 - 10,000MOQ: 5 Pieces
Specification:
Working Pressure: 2000psi~20000psi
Nominal Bore: 1.13/16″~7.1/16″ (46mm~180mm)
Working Medium: oil, natural gas, mud and gas containing H2S and CO2
Working Temperature: -46℃~121℃(Class LU)
Material Class: AA, BB, CC, DD, EE, FF, HH
Specification level: PSL1~4
Performance Requirement: PR1~2
Product Description
API 6A FC gate valves are handwheel operated valves. The gate of the MODEL FC
valve is a one piece slab gate that uses two floating seats to generate a highly
reliable seal. The slab gate eliminates the chance of trapping pressure within the
body cavity which can cause pressure locking.
Size (inches) |
Working Pressure (PSI) |
|||
1 13/16 |
|
|
10000 |
15000 |
2 1/16 |
|
5000 |
10000 |
15000 |
2 9/16 |
|
5000 |
10000 |
15000 |
3 1/8 |
3000 |
5000 |
|
|
3 1/16 |
|
|
10000 |
15000 |
4 1/16 |
3000 |
5000 |
10000 |
|
The main characteristic:
♦Forged body & bonnet
♦Low operation torque
♦Metal-to-metal body/bonnet seal
♦Metal-to-metal backseal seal can be energized
regardless of gate position
♦Lubrication fittings for easy maintenance
♦Gate guides retain body lubricants and protect gate
♦Manual or actuated operation
♦Simple design assures low cost
♦Flanged or screwed outlets
