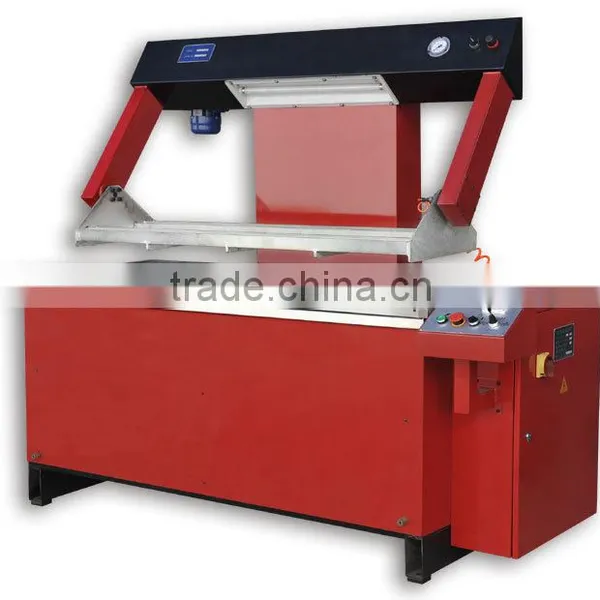

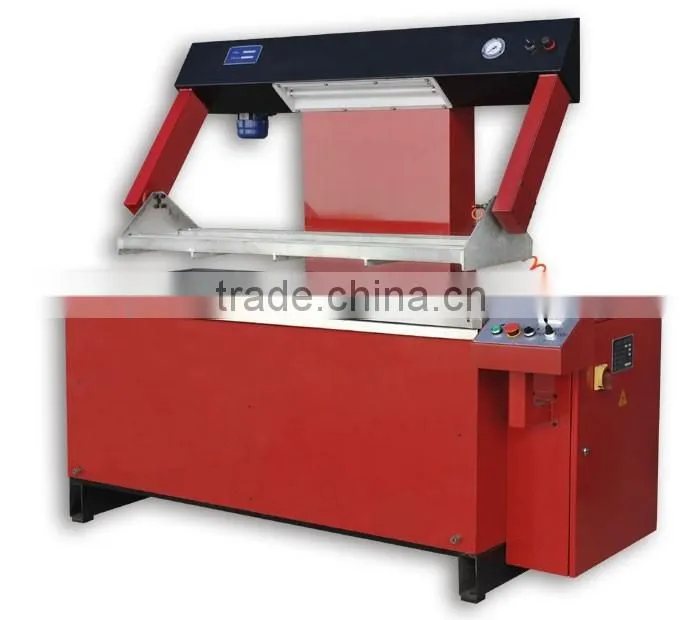

Cylinder Head Pressure Tester PT1200
*PT1200 is a pressure tester for cylinder head.
*Design for easy operation
* 360°roll-over fixture controlled by electric system
* Heating elements: two changeover 4500 Watts elements.
* High efficiency heating elements.
Specification:
Part Characteristics |
Specification |
Maximum length (mm/inch) |
1200 mm / 47.24” |
Maximum width (mm/inch) |
400 mm / 15.74” |
Maximum height (mm/inch) |
300 mm / 11.81’’ |
Water tank capacity(L) |
500liters / 132 USngal |
Heating power (kw) |
2x4.5 |
Rolling Motor (kw) |
0.18 |
Stroke-motor (kw) |
0.37 |
Rotational speed (rpm) |
6 |
Overall diamention(LxWxH)mm |
2000x1100x1800 |
Packing diamention(LxWxH)mm |
2250x1200x1370 |
Net /Gross weight kg/lbs) |
550/700 |
Standard accessory:
T-nuts, screws, crimping tools, baroclinic harness, rubber seals, rubber gasket, rubber plate, plexiglass
