Low Cost 1.3mega Cmos Mini Camera Module Used With Microscope and Computer

Guangzhou JPLY Electronic Technology Co., Ltd.
Low Cost 1.3mega Cmos Mini Camera Module Used With Microscope and Computer thumbnail-1
Low Cost 1.3mega Cmos Mini Camera Module Used With Microscope and Computer thumbnail-2
Low Cost 1.3mega Cmos Mini Camera Module Used With Microscope and Computer thumbnail-3
Low Cost 1.3mega Cmos Mini Camera Module Used With Microscope and Computer thumbnail-4
Low Cost 1.3mega Cmos Mini Camera Module Used With Microscope and Computer photo-1
Low Cost 1.3mega Cmos Mini Camera Module Used With Microscope and Computer photo-2
Low Cost 1.3mega Cmos Mini Camera Module Used With Microscope and Computer photo-3
Low Cost 1.3mega Cmos Mini Camera Module Used With Microscope and Computer photo-4
US$ 229 - 268 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
JPLY
Model Number:
H1TD01C-C2
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name JPLY
Model Number H1TD01C-C2
Theory Stereo Microscope
Drawtube Trinocular
Product Description


Our Camera Application  Areas



1.    Machine vision and inspection

2.   Industrial Inspection and measurement

3.   Microscopy imaging and analysis

4.   Educational demonstration

5.   Laboratory automation research

6.   Medical research

7.   Optical character recognize





Specifications of camera module



Sensor size

1/1.8" CMOS Color

Sensor Dimension

5.3μm×5.3μm

Scan Method

Progressive Scan

Quantum efficiency

48%@650nm,30%@750, NIR

Frame rate

50fps@1280x1024(8bit)

Shut

ERS & Global shutter

Dynamic range

65dB

SNR

41dB

Spectrum response

400-1100nm

Data Interface

USB3.0  5Gbps

Control Interface

1xR485,2xI/O,1xStrobe, 1xTrigger

USB Cable

3M

Power

DC 5V±5%

Current

<500mA

White balance

Manual white balance,automatic white balance/area white balance

Exposure Time

21us~1.3s

Auto Exposure control

Automatic/manual exposure area

Lens Mount

CS interface (optional C interface)

Busy Indicator

Power light,the trigger light

Working temperature

0℃-60℃

Working humidity

0-85%

Software

SpectrumSee image analysis software with modular designing,including image previeing,

capturing,analysing,processing,sharing function.It gives users the latest image processing

experiences.

The software function:image capturing,time lapse,measuring,data exporting image mosaic,

depth of field overlaying,text instruction inserting,etc





Camera outlook images



Low cost 1.3mega cmos mini camera module used with microscope and computer

Low cost 1.3mega cmos mini camera module used with microscope and computer

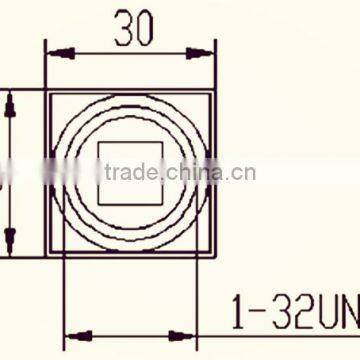

Camera size(mm)



Low cost 1.3mega cmos mini camera module used with microscope and computer          Low cost 1.3mega cmos mini camera module used with microscope and computer





Application Sample





Low cost 1.3mega cmos mini camera module used with microscope and computer

Low cost 1.3mega cmos mini camera module used with microscope and computer

Low cost 1.3mega cmos mini camera module used with microscope and computer









Packaging & Shipping



Packing method

Every single camera is packed with white foam inside,

and packed with carton box outside.

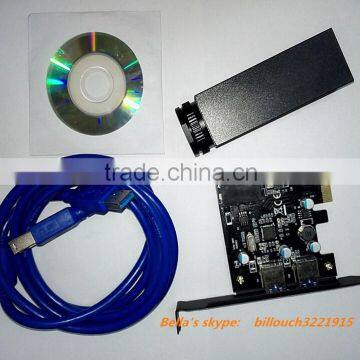

Packing list

1PC * Camera body

1PC * USB3.0 Card

1PC * USB3.0 Cable

1PC * CD with software and driver

Shipping method

FedEx Express/UPS/DHL/TNT, Air mail, Transportation by sea,

or others convenient shipping carrier for you.

Lead timewithin 5~7days after payment confirmed







Notes

Software function

Image capturing, Time lapse, Measuring, Data exporting image mosaic,

Depth of field overlaying, Text instruction inserting, etc,.

Software systemLinux, Windows7, Window8, Window10, Android, etc,.
Quality warranty2 years since you received the goods.





Our Services

(1) All of our camera come with free software and SDK, and if you require others OEM software, please

   discuss with us any time !

(2) The software function including image capturing, time lapse, measuring, data exporting image

   mosaic, depth of field overlaying, text instruction inserting,etc.

(3) If you have other camera application requirement, our professional engineer can offer the

   best solution for you ! We can offer customized service !

(4) If you have any target price, please let us know, so we can we adjust to you if we can do,

   because we did not want to lost a nice customer like you !

(5) We offer after-sale service within 24 hours through email, Skype, WhatsApp, Telephone,

   or Team-viewer.

(6) All our product is guaranteed for no less than 2 years, since you received the goods !
