Help CenterUSB3.0 Series Polarized Microscopic CCD Digital Camera
Related Products
-
Latest Technology Digital Microscopic Camera for Medical TestingUS$ 199 - 258MOQ: 1 Piece -
Two Year Warranty 1/4'' CCD Camera for Leica Microscope or Nikon MicroscopeUS$ 199 - 258MOQ: 1 Piece
-
C Mount HD Microscopic CCD Camera for Biological ResearchUS$ 199 - 258MOQ: 1 Piece
-
USB Type and Mini Digital Camera for Zeiss Microscopic ImagingUS$ 199 - 235MOQ: 1 Piece
-
High Quality Color Reproduction Polarized Microscopic CameraUS$ 199 - 235MOQ: 1 Piece
Application areas
1. Machine vision and inspection
2. Industrial Inspection and measurement
3. Microscopy imaging and analysis
4. Educational demonstration
5. Laboratory automation research
6. Medical research
7. Optical character recognize
8. 3D Scanning
9. VGA navigation
10. etc..
Camera Specifications
Sensor Model |
1/4" CCD Color |
Sensor Dimension |
5.6μm x 5.6μm |
Frame rate |
120fps |
Scan Method |
Progressive scan |
Sensibility |
1.2V / Lux-sec(550nm) |
Resolution |
120fps@640x480 |
Shutter |
Global shutter |
Dynamic Range |
61dB |
SNR |
44dB |
Spectral Response |
400nm~700nm |
Data Interface |
USB 3.0, up to 5Gbps; 1.8Meter Cable |
Power |
DC5V± 5% |
Current |
≈500 mA |
White Balance |
Manual /Auto /One-key white balance |
Auto exposure Control |
8μs~3min; Manual/Auto exposure |
Lens Mount |
C Mount |
Busy Indicator |
LED |
Working temperature |
0℃~60℃ |
Working humidity |
0%-85% |

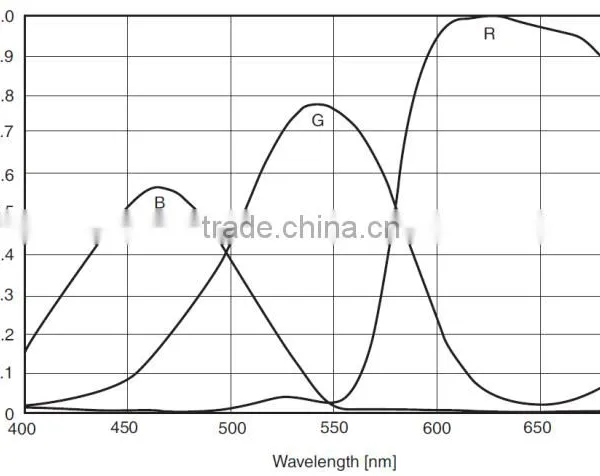

Spectral reponse
Camera size (mm)
Application Sample
We will supply free advance analysis software for your application
Software Name |
SpectrumSee Image Analysis Software |
Major Function |
1. Camera control; 2. Image record and video record; 3. Advanced image process; 4. Measure tools box; 5. Image align, image merge,image stitching,recolor; 6. Image gallery; 7. etc... |
|
Software Support System |
Windows XP/VISTA/2007/WIN7/WIN8 (32&64 bit), etc,. |
UI of software
Want more software details? Click here
(https://jply.en./product/60497966095-803455778/Multi_language_support_Microscope_Measurement_Sofware.html )
| Packing method |
Every single camera is packed with white foam inside, and packed with carton box outside. |
| Packing list |
1PC * Camera body 1PC * USB3.0 Card 1PC * USB3.0 Cable 1PC * CD with software and driver |
| Shipping method |
FedEx Express/UPS/DHL/TNT, Air mail, Transportation by sea, or others convenient shipping carrier for you. |
| Lead time | within 5~7days after payment confirmed |
| Quality Warranty | 2 years since you received the goods |
Packing images
1. Why you will choose us?
Answer:
The company consistently delivers ODM/OEM products that are innovative, easy to integrate,
cost-effective and on time. Being a leader of camera designer in China, JPLY is developing to a world
class brand. We ensure that customers stay with us over multiple product generations by consistently
meeting their demands for cutting-edge technology, technical consulting services, integration assistance
and the highest manufacturing standards.
2. Delivery time.
Answer:
the delivery date within 7 working days after payment confirmed.
3. And is there any case for industry such as LCD or Semiconductor inspection line?
Answer:
Yes,our camera can suitable for industry such as LCD or Semiconductor inspection line,
and we can recommend the best camera for your reference.
4. Can you forward me the price-list of your range of cameras suitable for Brightfield, Darkfield
and Phase Contrast microscopy?
Answer:
We are speccilized in mircoscope and industrial camera,we can send some really image
for your reference.
5. What's your main products?
Answer:
We are specilized in microscope and industrial camera,fluorscence image,machine vision camera from 1.3Mp to 10.0Mp.
| Contact Person | Bella Au |
| Skype on line | billouch3221915 |
| Trademanger | cn1518216066anic |
| WhatsApp/ Wechat | +86-188 237 666 12 |
| Telephone | +86-20- 3807 7661 |
| Website on | https://jply.en./ |
| Website | /EN/Default.aspx |
If you are interested in our product, please do not hesitate to contact Bella Au!
