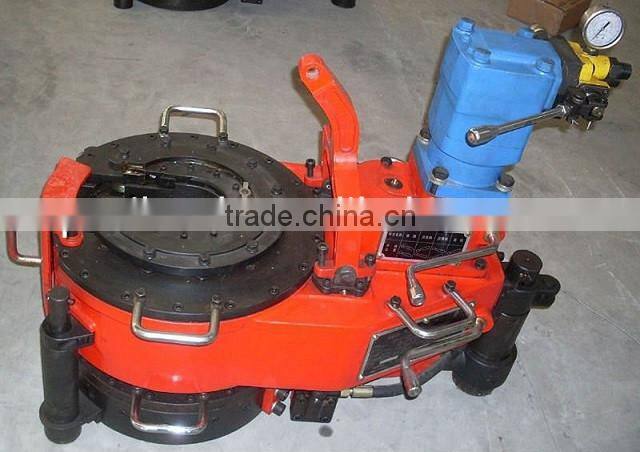

API standard drilling tubing hydraulic power tongs in oil and gas with power tong dies
Tubing Power Tong is used for quick make-up/break-out in well service operations. The tong is equipped with hydraulic tong and use inner curved cam to clamp. The tongs have the following features:
1. Clamp the tubing use corresponding dies, jaw set or die seat.
2. Torque control valve can be equipped acc. to customer's request.
3. Choose and buy lengthening guide pole assembly, the backup tong can clamp the tubing body.
4. Torque control system can be equipped acc. to customer's request.
Pipe size of master tong | Mm | 60-89 | 73-114 | 60-140 |
In | 2 3/8"-3 1/2" | 2 7/8"-4 1/2" | 2 3/8"-5 1/2" | |
Pipe size of backup tong | Mm | 60-114 | 89-141.5 | 73-156 |
In | 2 3/8"-4 1/2" | 3 1/2"-5 1/8" | 2 7/8"-6 1/8" | |
Higear rated torque | Kn.m | 1.1 | 1.5 | 2.6 |
Lbf.ft | 811 | 1106 | 1918 | |
Lowgear rated torque | Kn.n | 3 | 6 | 13 |
Lbf.ft | 2213 | 4425 | 9588 | |
Higear rated speed | R/min | 100 | 85 | 68 |
Lowgear rated speed | R/min | 30 | 20 | 13 |
Rated operation pressure | Mpa | 10 | 11 | 12 |
Psi | 1450 | 1595 | 1740 | |
Max.flow | L/min | 80 | 100 | 120 |
Gpm | 21 | 26 | 32 | |
Dimension | Mm | 650×430×550 | 750×500×600 | 1042×582×839 |
In | 25.6"×16.9"×21.7" | 29.5"×19.7"×23.6" | 41.0"×22.9"×33.0" | |
Weight(including backup tong) | Kg | 158 | 220 | 471 |
Lb | 248 | 485 | 1038 |
