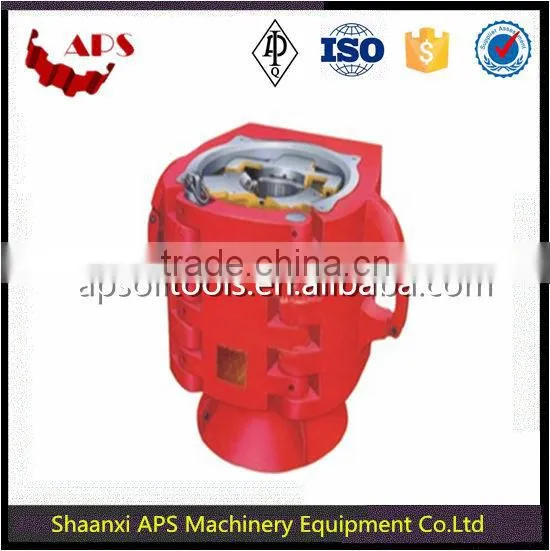

API spec 8A QD Pneumatic Casing Elevator for well drilling,QD elevator
QD Pneumatic Casing Elevator is applicable for casing of 60~340mm23/8~133/8 in). It features labor saving, safety and pneumatic operation, and it is a kind of ideal tool for casing operation. It is designed and manufactured according to API Spec 8A Specification for Drilling and Production Hoisting Equipment.
Model |
QD450(API500) |
QD315(API350) |
QD135(API150) |
||
Applicable range |
mm |
114-340 |
114-340 |
60-139.7 |
|
in |
4 1/2-13 3/8 |
4 1/2-13 3/8 |
2 3/8-5 1/2 |
||
Rated load |
KN |
4500 |
3150 |
1350(31/2) 900(51/2) |
|
US ton |
500 |
350 |
150(31/2) 100(51/2) |
||
Pressure |
MPa |
0.5-0.9 |
0.5-0.9 |
0.5-0.9 |
|
psi |
72-130 |
72-130 |
72-130 |
||
Size |
elevator |
mm |
1390*1290*915 |
1335*1040*806 |
990*645*550 |
in |
55*51*36 |
52.5*41*31.7 |
39*25.4*21.6 |
||
spider |
mm |
1390*1290*970 |
1335*1040*872 |
810*730*560 |
|
in |
55*51*38 |
52.5*41*34.2 |
31.9*28.7*22 |
||
Weight |
kg |
9900 |
7550 |
1430 |
|
lb |
21820 |
16640 |
3152 |
||
