API Spec 7k 8c Type of TA Elevator Used to Tubing, Casing and Drill Collar/oilfield Elevator for Oil Well Drilling
US$ 1 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
APS
Model Number:
TA elevator
Type:
Other, Handling tools
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
API 8C 7K Oilfield Single and Double DH/SH Type Elevator Links in Oil and Gas/Forged Elevator Links for Oil Well DrillingUS$ 1,000 - 50,000MOQ: 1 Pair -
API 7K/8C Oilfield Type CDZ Elevator/forged Drill Pipe Elevator/Wellhead Handling Tools for Oil Well DrillingUS$ 100 - 3,000MOQ: 1 Set
-
Oilfield Type DDZ/DDZ TD Elevator Against API 8C/drill Pipe and Drill Tools Elevator With All Size in Wellhead Handling ToolsUS$ 1 - 3,000MOQ: 1 Set
-
API 8A CD Type Side Door Elevator/ Wellhead Handing Tools in Oilfield for Oil Well Drill Pipe, Casing, Tubing and Drill CollarUS$ 100 - 1,000MOQ: 1 Set
-
API 7K TQ DRILL PIPE POWER TONG for Oilfield DrillingUS$ 5,000 - 30,000MOQ: 1 Set
Brand Name
APS
Model Number
TA elevator
Type
Other, Handling tools
Machine Type
Drilling Tool
Certification
API
Material
Other, Alloy steel
Processing Type
Forging
Use
Well Drilling
API Spec 7k 8c type of TA elevator used to tubing, casing and drill collar/oilfield elevator for oil well drilling
Product Description

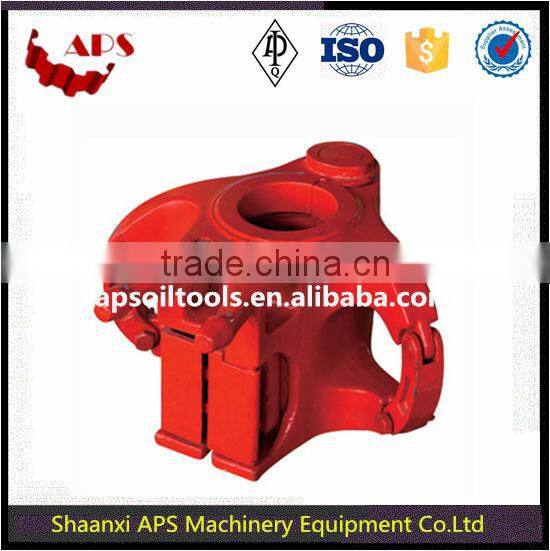

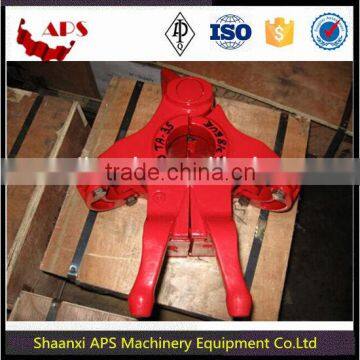

The TA Style Elevators are for use on tubing, casing and drill collars. The elevators are balanced for easy handling with safety lock and latch and guarded operating handles. Sizes range from 35 tons to 150 tons and cover all size tubular up to 11 1/4".
Technical parameter
Model | Size (in) | Rated Capacity (shortton) | |||
Drill Collar | Tubing | Casing | |||
NU | EU | ||||
TA-35 | 2.7/8-3.1/8 | 1.05-2.7/8 | 1.05-2.7/8 | / | 35 |
TA-65 | 2.7/8-3.1/8 | 1.66-2.7/8 | 1.66-2.7/8 | / | 65 |
TA-100 | 3.1/8-5.1/4 | 2.3/8-5 | 2.3/8-4.1/2 | / | 100 |
TA-125 | 3.1/8-5.1/4 | 2.3/8-5 | 2.3/8-4.1/2 | / | 125 |
TA-150 | 4.1/8-11.1/4 | / | / | 4.1/2-10.3/4 | 150 |
