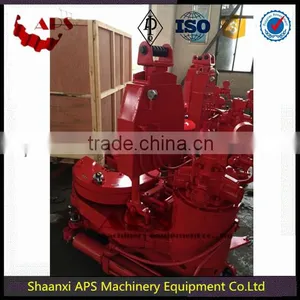

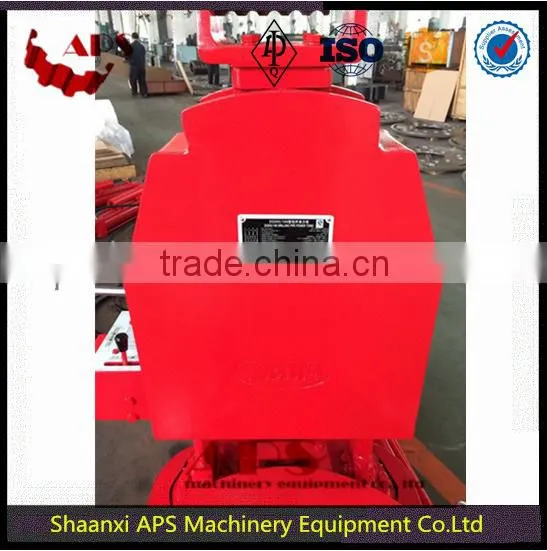

API7K Hydraulic Power Tong and Hydraulic Power Unit, ZQ Drill Pipe Power Tongs in Oil and Gas
ZQ Drill Pipe Power Tong is an ideal well head tool for oil drilling, widely applied for making-up and breaking-out in offshore and onshore drilling operations and well servicing operations. The drill pipe tong features safety, labor-saving, and high-efficiency. Open-throat design of the ZQ series allows the tongs to escape from drilling pipe freely with high mobility. The tong is a combination of spinning tong and torque tong. It substitutes cathead, manual tong and rotary rope in making-up and breaking-out. The tongs are designed and manufactured according to API Spec 7K Specification for Drilling Equipment.
Type |
ZQ203-125 |
ZQ162-50II |
ZQ203-100II |
ZQ203-100III |
ZQ203-125II |
ZQ203-125III |
|
|
Size tange |
mm |
127-203 |
85-162 |
127-203 |
127-203 |
127-203 |
127-203 |
in |
3-1/2”coupling, 8” body |
2-3/8”coupling, 5”coupling |
3-1/2”coupling, 8 ”body |
3-1/2”coupling, 8 ”body |
3-1/2”coupling, 8” body |
3-1/2”coupling, 8 ”body |
|
|
Max. torque |
kn.m |
125 |
50 |
100 |
100 |
100 |
100 |
ft.lbf |
92200 |
36880 |
7350 |
7350 |
92200 |
92200 |
|
Speeding (High gear) |
rpm |
40 |
60 |
40 |
40 |
40 |
40 |
|
Spending (Low gear) |
2.7 |
4.1 |
2.7 |
2.7 |
2.7 |
2.7 |
2.7 |
|
Air pressure |
Mpa |
0.5-1 |
|||||
Psi |
72-144 |
||||||
|
Pressure rating |
Mpa |
20 |
16 |
16.6 |
16.6 |
20 |
20 |
Psi |
2900 |
2320 |
2400 |
2400 |
2900 |
2900 |
|
|
Flow rating |
L/min |
114 |
120 |
114 |
114 |
114 |
114 |
gpm |
30 |
31.7 |
30 |
30 |
30 |
30 |
|
|
Shifting distance |
mm |
1500 |
1000 |
1500 |
- |
1500 |
- |
in |
59 |
39.4 |
59 |
- |
59 |
- |
|
|
Travel distance |
mm |
- |
- |
- |
0-2000 |
- |
0-3000 |
in |
0-78.5 |
0-118 |
|||||
|
Lifting distance |
mm |
- |
0-440 |
0-485 |
0-800 |
0-485 |
0-800 |
in |
0-17.3 |
0-17 |
0-31.5 |
0-17 |
0-31.5 |
||
|
Size |
mm |
1785*1080*1360 |
1570*800*1370 |
1760*1000*1630 |
1760*1650*2050 |
1760*1080*1630 |
1785*1740*2050 |
in |
70*42*53 |
62*31*54 |
69*39*64 |
69*65*81 |
70*42*64 |
70*68.5*81 |
|
|
Weight |
Kg |
2650 |
1700 |
2500 |
3250 |
2750 |
3700 |
lb |
5840 |
3748 |
5510 |
7165 |
6063 |
8160 |
|
