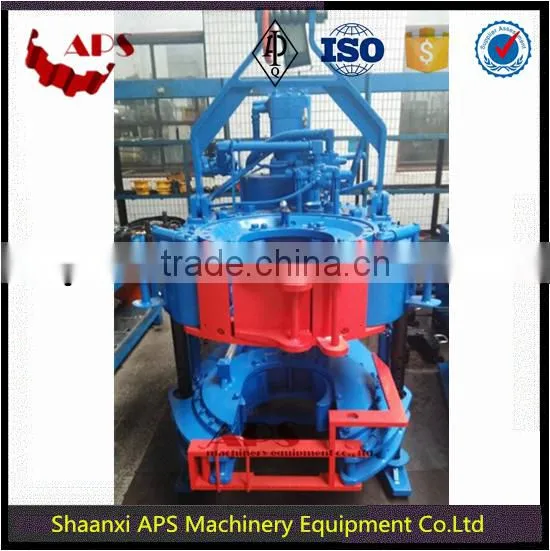

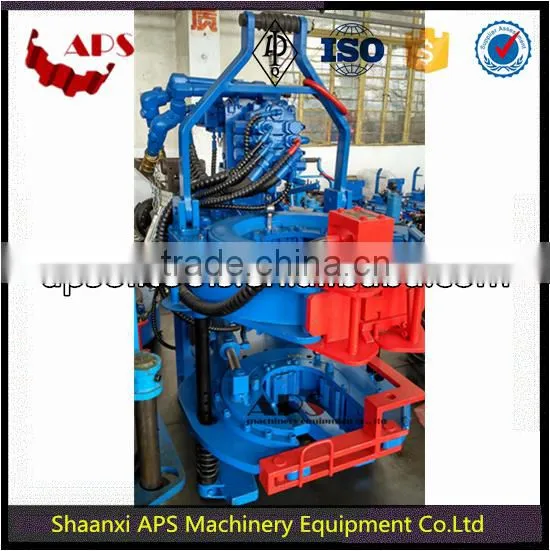

Oil and Gas API 7K KHT Casing Power Tong, High Quality Hydraulic Casing Tong for Oil Downhole Drilling Tools
KHT Casing Power Tong is used to make up and break out for casing operation in oil fields. It has greatly reduced the labor of worker, enhanced connection quality of thread and diminished accidents in inappropriate casing operation.
Following features:
1. High torque.
2. Brake belt assembly, easy to operate nd convenient to maintain and replace.
3. Open gear supporting structure,improving the strength.
4. High strength steel plate used on the shell.
5. With hydraulic torque indicator and torque control system installation interface (optional).
6. Low stress components for C.R.A casing (optional).
Model |
KHT7625 |
KHT9625 |
KHT13625 |
KHT14000 |
Range of Master Tong |
Φ73-194 2 7/8”-7 5/8” |
Φ73-245 2 7/8”-9 5/8” |
Φ101-346 4”-13 5/8” |
Φ101-356 4”-14” |
Range of Backup Tong |
Φ73-219 2 7/8”-8 5/8” |
Φ73-267 2 7/8”-10 1/2” |
Φ101-394 4”-15 1/2” |
Φ101-394 4”-15 1/2” |
High Gear Rated of Torque |
7000 N.m 5000 ft/lbs |
3600 N.m 2700 ft/lbs |
8400 N.m 6200 ft/lbs |
13500 N.m 10000 ft/lbs |
Low Gear Rated of Torque |
34000 N.m 25000 ft/lbs |
34000 N.m 25000 ft/lbs |
42000 N.m 31000 ft/lbs |
100000 N.m 75000 ft/lbs |
High Gear Rated Speed |
39 RPM |
65 RPM |
42 RPM |
24 RPM |
Low Gear Rated Speed |
8 RPM |
6.5 RPM |
8.4 RPM |
3 RPM |
Rated Operation Pressure |
14 Mpa 2000 PSI |
14 Mpa 2000 PSI |
14 Mpa 2000 PSI |
17.2 Mpa 2500 PSI |
Rated Flow |
150 LPM 40 GPM |
150 LPM 40 GPM |
150 LPM 40 GPM |
187.5 LPM 50 GPM |
Master Tong Dimension: L×W×H |
1350×660×1190 53” ×26” ×47” |
1500×790×1045 59” ×31” ×41.1” |
1508×857×1194 59.4” ×33.8” ×47” |
1750×1080×1240 69” ×42.5” ×48.8” |
Combined Tong Dimension: L×W×H |
1350×660×1750 53” ×26” ×69” |
1500×790×1750 59” ×31” ×69” |
1508×1082×1900 59.4” ×42.6” ×74.8” |
1750×1080×2050 69” ×42.5” ×80.7” |
Master Tong Weight |
550 kg 1210 lbs |
800 kg 1760 lbs |
650 kg 1433 lbs |
1500 kg 3300 lbs |
Combined Tong Weight |
825 kg 1820 lbs |
1220 kg 2680 lbs |
1250 kg 2750 lbs |
2150 kg 4730 lbs |
