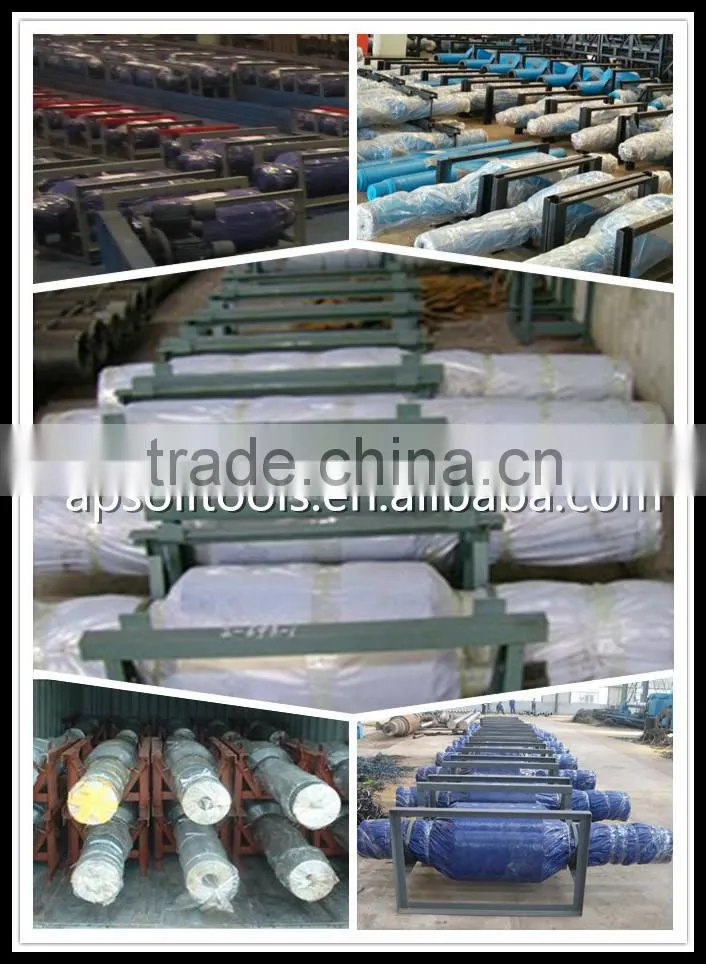

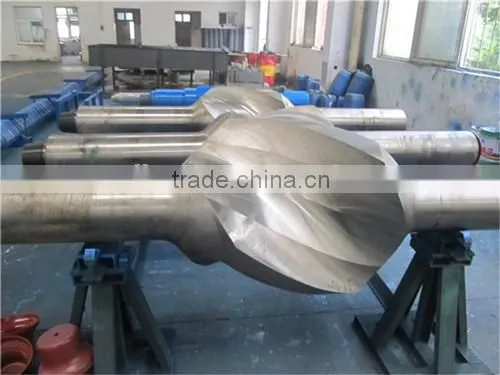

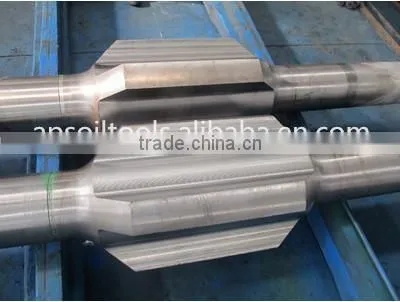

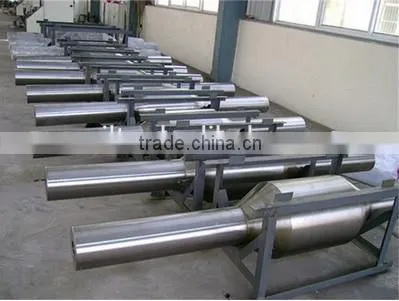

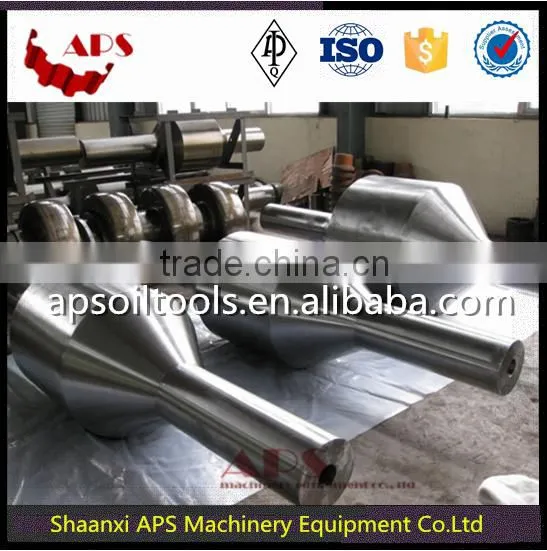

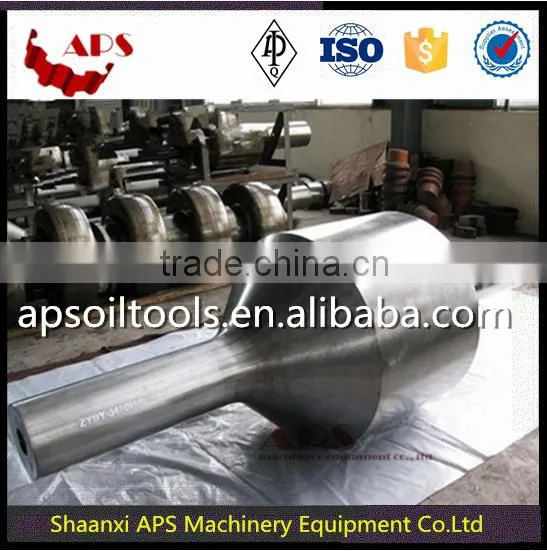

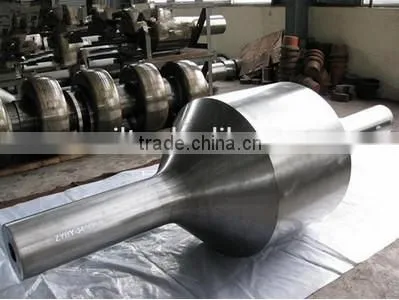

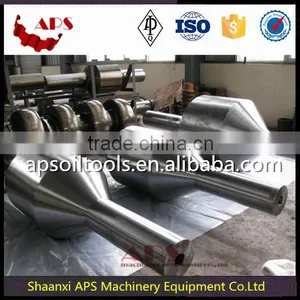

Oil and Gas API 7-1 4145H MOD Drill Stabilizer forging/Integral blade stabilizer drilling tools
1. API 7-1 non-magnetic stabilizer and drilling stabilizer
2. Non-magnetic stabilizer
3. Standard: API Spec.7
4. Specifications: OD of Bit: 6"-42"
5. Material: AISI 4145H/ AISI 4145H MOD/ AISI 4340/ AISI4140-4142/ Non-mag material
6. Hardfacing: HF1000, HF2000, HF3000, HF4000, HF5000
|
Size (Code) Inch |
Connection Inch |
Fishing Neck Inch |
Overall Length Inch |
Fishing Neck Length Inch |
Blade Length Inch |
Blade Width Inch |
42" |
8-5/8"REG |
11" |
120" |
32” |
24” |
6.5” |
36" |
7-5/8"REG |
9.5" |
110" |
30” |
22” |
6.5” |
26" |
7-5/8"REG |
9.5" |
100" |
30” |
20” |
4” |
17 1/2" |
7-5/8"REG |
9.5" |
90" |
30” |
18” |
3.5” |
12 1/4" |
6-5/8"REG |
8 " |
90" |
30” |
18” |
3” |
8 1/2" |
4 1/2”IF |
6 3/4" |
72" |
28” |
16” |
2.25” |
6" |
3-1/2”IF |
4 3/4" |
66" |
28” |
16” |
2” |
