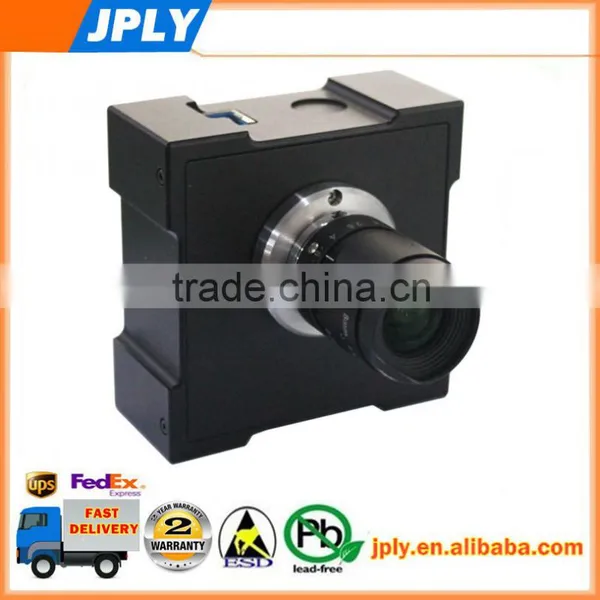

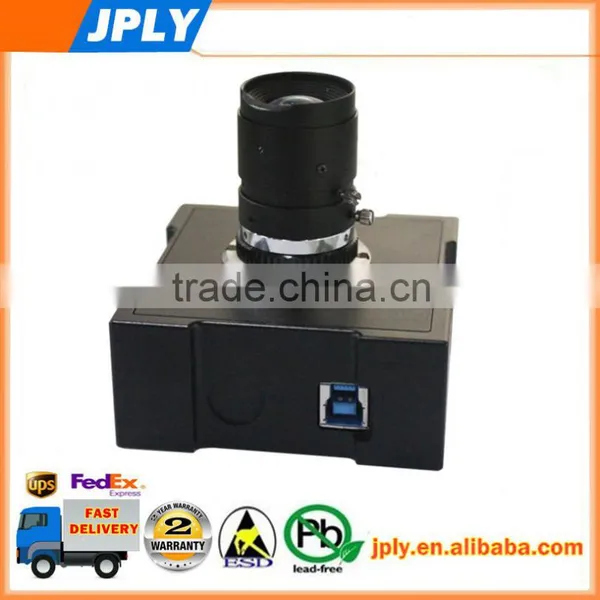

Help CenterMonochrome C-mount Interface Camera Fluorescence Microscopic Device
Related Products
-
Trinocular Biological Microscope USB Camera Fluorescence Microscopic DeviceUS$ 1 - 999MOQ: 1 Piece -
1.4Mp Sony ICX285 Sensor for Camera Fluorescence Imaging CCDUS$ 1 - 999MOQ: 1 Piece
-
2016 Hot Sale Camera Scientific Research Fluorescence Microscopic CameraUS$ 1 - 999MOQ: 1 Piece
-
Fluorescence Imaging CCD Camera for Biological Cells ResearchUS$ 799 - 999MOQ: 1 Piece
-
Anniversary Sale High Sensitivity Fluorescence Image CameraUS$ 799 - 999MOQ: 1 Piece
SENSOR Model |
2/3’’ SONY ICX285 |
SENSOR Dimension |
6.45umx6.45um |
Resolution |
1360*1040,2x2bin |
Scan Method |
Progressive scan |
Sensibility |
1.24V |
Frame rate |
26fps@1360x1040,40fps@680x520 |
Shutter |
Global shut |
SNR |
74dB |
Spectral Response |
400nm~1000nm |
Data interface |
USB3.0 |
Power |
DC5V± 5% |
Current |
≈400 mA |
White balance |
White balance |
Auto Exposure Control |
36μ~30mine |
Lens Mount |
CS Interface optional C |
Busy Indicator |
LED |
Working temperature |
0℃~60℃ |
Working humidity |
10%-90%RH(Without condensation ) |
Software |
spectrumsee image analysis software with modular designing,including image previewing, capturing,analysing,processing,sharing fuction.It gives users the latest image processing experiences.The software fuction:image capturing,time lapse,measuring,data exporting image mosaic,depth of field overlaying,text instruction inserting,etc |
Really Imaging:
Camera size:
As a global camera provider, JPLY is dedicated to balanced sustainability and responsible business. With quality and integrity at our core, we deliver best-in-class camera and related product. JPLY designs and manufactures high performance and user-friendly CCD, CMOS cameras for a vast variety of life science and industrial research applications.
The company consistently delivers ODM/OEM products that are innovative, easy to integrate, cost-effective and on time. Being a leader of camera designer in China, JPLY is developing to a world class brand. We ensure that customers stay with us over multiple product generations by consistently meeting their demands for cutting-edge technology, technical consulting services, integration assistance and the highest manufacturing standards.
1.All of our camera come with free software ,and any OEM software you need ,please discuss with us any time !
2.The software function:image capturing,time lapse,measuring,data exporting image mosaic,depth of field overlaying,text instruction inserting,etc.
3.If you have any camera application ,our professional engineer can offer the best solution to you !
4.If you have any target price ,please let us know ,and we will adjust to you if we can do ,as we did not want to lost the good customer like you !
5.We also guarantee the after-sale service time within 24 hours through email, Skype, WhatsApp, phone, or team-viewer.
1.Do you have camera for fluorescence & Bright field / dark field application in microscope?
Answer:yes,our ICX285 Camera is specilized for fluorescence& bright field/dark field application in microscope.
2.And also we wanted to know if you have any SDK or something for the camera? We need to control the
camera via an application.
Answer: Our camera come with free software and SDK,the camera include USB3.0 Card and USB3.0 Cable,Software dis.
3.what is the minimum pcs? 1order OK?
Answer:yes, the minimum order is 1Pc.
4.Whether the quoted prices are Duly packed or not? means includes charges for packing of material before shipping
Answer:sorry that we have not included the freight,and camera price is EXW,it is lowest price.thanks for your kindly understanding in advance.
| Contact Person | Winnie song |
| Skype on line | nology |
| Trademanger | jply2016 |
| WhatApp | +86-13512723595 |
| Telephone | +86-20-3807 7661 |
| Website on | https://jply.en./ |
| Website | /EN/Default.aspx |
Any questions welcome to contact us any time.
