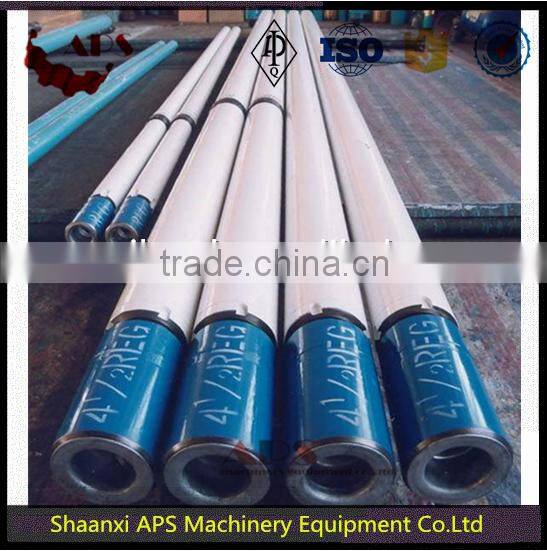

API Mechanical/Hydraulic Drilling Jar in Downhole Tools, Super Fishing Jar, Bumper Sub, Shock Absorber

Shaanxi APS Machinery Equipment Co., Ltd.

API Mechanical/Hydraulic Drilling Jar in Downhole Tools, Super Fishing Jar, Bumper Sub, Shock Absorber thumbnail-2

API Mechanical/Hydraulic Drilling Jar in Downhole Tools, Super Fishing Jar, Bumper Sub, Shock Absorber thumbnail-3

API Mechanical/Hydraulic Drilling Jar in Downhole Tools, Super Fishing Jar, Bumper Sub, Shock Absorber thumbnail-4

API Mechanical/Hydraulic Drilling Jar in Downhole Tools, Super Fishing Jar, Bumper Sub, Shock Absorber photo-1

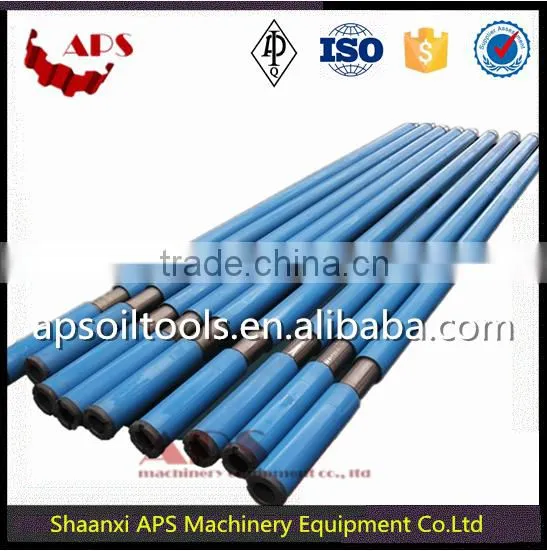

API Mechanical/Hydraulic Drilling Jar in Downhole Tools, Super Fishing Jar, Bumper Sub, Shock Absorber photo-2

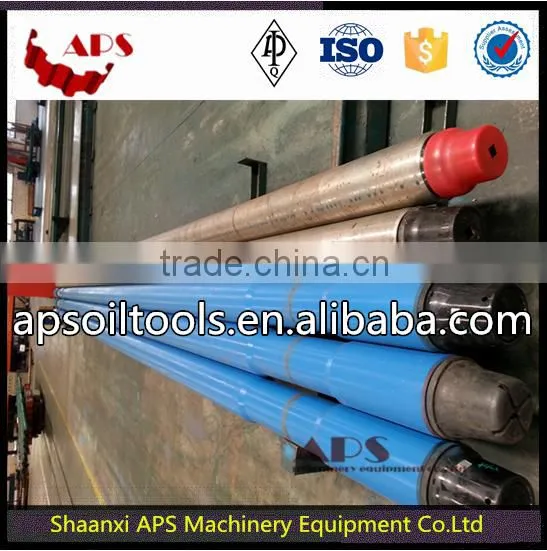

API Mechanical/Hydraulic Drilling Jar in Downhole Tools, Super Fishing Jar, Bumper Sub, Shock Absorber photo-3

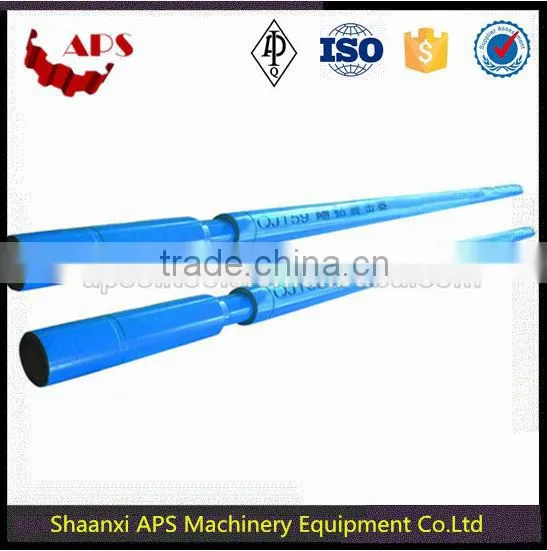

API Mechanical/Hydraulic Drilling Jar in Downhole Tools, Super Fishing Jar, Bumper Sub, Shock Absorber photo-4

US$ 100 - 1,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

APS

Model Number:

mechanical and hydraulic drilling jar

Type:

Other, Drilling Jar

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name APS

Model Number mechanical and hydraulic drilling jar

Type Other, Drilling Jar

Machine Type Drilling Tool

Certification API

Material Other, Alloy steel

Processing Type Forging

Use Well Drilling

API Mechanical/Hydraulic Drilling Jar in Downhole tools, Super Fishing Jar, Bumper Sub, Shock Absorber

Product Description

Drilling Jar

Type:Model Z^S_XJ Drilling Jar, Model JZ Mechanical Drilling Jar, Model JSZ Mechanical Drilling Jar, Model JYQ Mechanical-Hydraulic Drilling Jar, Model QY Full Hydraulic Drilling Jar, Model QYⅡFull Hydraulic Drilling Jar.

Drilling Jar Technical Parameter Type Z ^S_XJ

Model	Z ^S_X J36	Z ^S_X J46	Z ^S_X J56	Z ^S_X J62	Z ^S_X J64	Z ^S_X J70	Z ^S_X J76	Z ^S_X J80
OD mm	95	121	146	159	165	178	197	203
ID mm	28	51	57	57	57	70	71.4	71.4
Connection API	27/8REG	Nc38	41/2FH	NC46	NC50	NC50	65/8REG	65/8REG
Max. Tensile load MN	0.5	1.0	1.2	1.5	1.6	1.8	2.0	2.2
Max. Working torque KN.M	3.5	12	13	14	14	15	16	18
Max. Upper Jar KN	160	280	400	560	560	640	800	800
Max. Up Stroke mm	254	305	330	346	346	346	370	370
Max. Down Jar KN	100	220	300	420	420	480	600	600
Max. Down Stroke mm	178	182	182	182	182	182	181	181
Max.Temperature ℃	150	150	120	120	120	120	120	120
Sealing Pressure MPa	30	30	30	30	30	30	30	30
Upper Jar Overall Length mm	4162	6093	5410	6394	6736	6345	6295	6222
Down Jar Overall Length mm	3275	5138	5000	5371	5457	5457	5244	5249

Upward Jar,Hydraulic Absorber

Type: Model YSJ Hydraulic Upward Jar, Model CSJ Super Fishing Jar, Model JS Mechanical Upward Jar, Model JSQ Mechanical Upward Jar, Model KXJ Bumper Jar, Bumper Jar Type BXJ, Surface Bumper Jar Type DX, Hydraulic Accelerator Type YJQ, Drilling Accelerator ZJQ, Hydraulic Absorber Type YJA, Hydraulic Absorber Type YJB, Mechanical Hydraulic Absorber Type DHJ

Technical Parameter

Model	OD mm	ID mm	Conn. API	Overall Length mm	Max. Working Torque kN.m	Max. Tensile Load MN	Full Open stroke Power kN	Max. Stroke mm
CJ73	73	20	23/8TBG	2620	3	250	80~100	218
CJ80	80	25.4	23/8REG	2845	3	300	90~120	218
CJ89	89	28	NC26	2760	3.5	400	110~150	218
YJQ36	95	32	NC26	2845	4	500	150~200	330
YJQ40	102	32	NC31	3878	5	600	200~250	330
YJQ108	108	32	NC31	3878	6	700	200~250	330
YJQ44	114	38	NC31	3422	7	800	250~300	216
YJQ46Ⅱ	121	38	NC38	3254	8	900	300~350	234
YJQ62	159	57	NC50	4375	13	1500	600~700	338
YJQ168	168	57	NC50	4375	14	1600	600~700	338
YJQ70Ⅱ	178	60	NC50	4016	15	1800	700~800	320
YJQ76	197	78	65/8REG	4238	17	2100	900~1000	341
YJQ80	203	78	65/8REG	4238	18	2200	900~1000	341
YJQ90	229	76	75/8REG	4180	20	2500	1100~1200	341

Drilling Accelerator

Technical Parameter

Model	ZJQ46	ZJQ62	ZJQ64	ZJQ76	ZJQ80	ZJQ95
OD mm	121	159	165	197	203	241
Water Hole Dia. mm	50	57	57	61.9	76.2	76
Connection API	NC38	NC50	NC50	65/8REG	65/8REG	75/8REG
Max.Stroke mm	350	350	350	350	350	350
Water Hole Sealing Pressure Mpa	30	30	30	30	30	30
Max. Tensile Load KN	350	700	750	1000	1000	1200
Max. Working Torque KNM	8(5900)	13(9600)	14(10400)	18(13300)	18(13300)	22(16300)
Overall Length mm	7430	7780	7780	7630	7752	6752
